Sinotruck HOWO Arm Roll off Garbage Truck Hook Loader 15ton Hook Lift Truck with Palfinger Lifting System

Product Description

Howo 15ton Hook Lift Truck Arm Roll Garbage Truck with Palfinger Lifting System Product Description
A hook lift truck, also known as a hook loader truck, roll-off truck, arm roll truck, or dumpster truck, is designed to efficiently handle waste disposal. With its Palfinger Lifting System, it offers reliable performance and durability. Enjoy peace of mind with our one-year warranty and excellent after-sale service. Choose the Howo 15-ton Hook Lift Truck Arm Roll Garbage Truck for all your waste management needs.
This Howo 15-ton hook lift truck is perfect for solid waste collection and transportation. It is specifically designed to handle garbage collection and transportation in residential areas. The hook lifting system incorporates advanced Palfinger technology, ensuring exceptional working efficiency and a long service lifetime.
Product Details: Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd Product Name: Howo 15ton Hook Lift Truck Arm Roll Garbage Truck with Palfinger Lifting System Keywords: hook loader truck, roll-off truck, garbage truck, dumpster truck Attributes: After-Sale Service (included), One-year Warranty, Type: Roll Off Product Parameters
Truck Chassis Specifications Company Name: Hubei Kangmu Special Vehicle Equipment Co., Ltd
Product Name: Howo 15ton Hook Lift Truck Arm Roll Garbage Truck with Palfinger Lifting System
Keywords: hook loader truck/roll-off truck/garbage truck/dumpster truck
Attributes: With After-Sale Service, One year warranty, Roll Off type

Cabin	One and a half cab.With A/C
Vehicle Dimensions	Overall dimensions (L x W x H) mm	7300×2500×3300
	Wheelbase (mm)	4600
	Wheel track (front/rear) (mm)	1996/1830
Truck weight (KGS)	Tare weight	11400
	Recommend payload	10000-15000
	Front axle load capacity	7000
	Rear axle load capacity	16000
Max. driving speed(km/h)		102
Engine	Manufacture	Weichai Engine
	Model	WP10.300E22
	Type	Straight 6-cylinder in line, Turbocharge with inter-cooling, diesel engine
	Displacement(L) Engine power(hp)	Engine displacement:9.726L Power:300HP
	Emission standard	Europe 2
Gearbox	Manual operation, 10 forward gear, 2 reverse gear
Steering	Hydraulic steering with power assistance
Tire	295/80R22.5, 6+1 pcs (including one spare tire)

Upper-Body Parameters:

Garbage container effective volume(CBM)	About 12-20 cubic meter
The Hooking Capacity(T)	20
The Hook arm material	Q40, Q50 high-strength steel
System pressure(Mpa)	26
Control voltage(V)	24
The hook arm self weighs (kg)	2300
Extension of hook arm(mm)	800-900, or other specifications based on a different model
Hydraulic Oil pump displacement(Min/L)	60, made in China or import pump
Hydraulic oil tank capacity(L)	110L or more
Loading/unloading cycle time(S)	45S or less
The hook center height(mm)	1570 or other specifications based on a different model
Distance from hook center to rear roller(mm)	4630 or other specifications based on a different model
Width of guild rail(mm)	1060 or other specifications based on a different model
Hydraulic oil pump	Hefei pump in China, or import pump

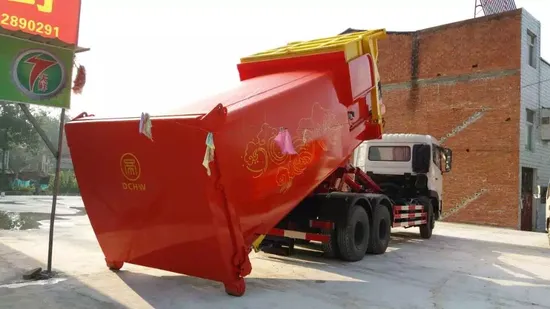

Detailed Photos
