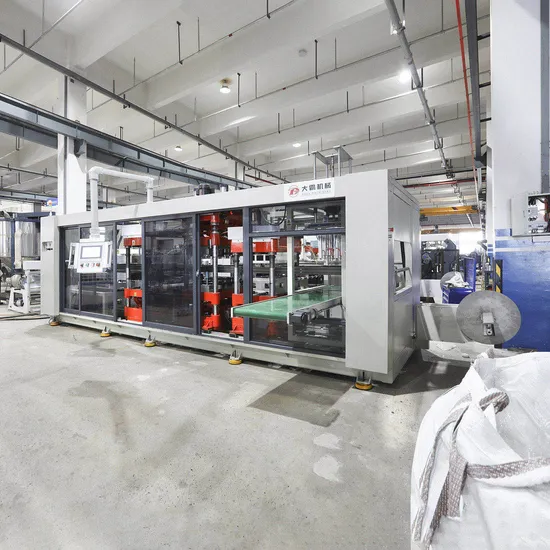

Full Automatic Plastic Thermoforming Machine Plastic Hinged Fruit Container Making Machine

Product Description

Full automatic Plastic thermoforming machine plastic hinged fruit container making machine
Main Features:
This machine is suitable to handle different materials, such as PP, A-PET, R-PET, C-PET, BOPS, HIPS, PP, PLA, PVC and barrier material. It could produce many items such as trays, lids, fruits and vegetables boxes, flowerpots, clam-shells, nursery trays and plates.

The multi-station positive and negative thermoforming machine represent an innovative model with the following features:
• High level of standardization.
• Exceptional repeatability.
• Rugged durability.
• Flexible production for a wide range of articles.
• Increased high-speed performances.
• 4-column press for forming and cutting with perfect balance of the forces on mould platens.
• Cutting accuracy and reliability.
• Electric drives on all the main moving parts.
• User-friendly software to control each operation and working.
Main Technical Features:

1. Sheet Thickness	0.2-2mm
2. Available Material	PP PET PVC PS PLA
3. Max. Forming Area	680x420mm
4. Sheet Width	400-690mm
5. Forming Depth	120mm
6. Speed	15-30/min
7. Heating Power	70kw
8. Motor Power	4kw x 4
9. Air Consumption	0.5-0.8 bar
10.Total installed Power	80kw
11. Weight	7.5 ton
12. Machine over Dimension	7.5x2.4x2.2M

About Zhejiang Hongyin Machinery Co., Ltd Services.
1. Purchase Service Zhejiang Hongyin Company has a specialized and efficient working team. If you are new on the printing and packing area, some samples of your products shown to us will be appreicated, and we will give you professional suggestions of whole work. 2. Installation Service Hongyin company will assigned 1 technician to coordinate installation, commissioning and training. Cost for return flight and suitable accommodation will be charged, and the allowance is USD100 per day. 3. Warranty Service 12 months limited warranty. Starting from the date of machine arrival buyer's place excluding wear parts. Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer. If you are interested in our machine, please feel free and contact me.
