5m Hydraulic Low Level Access Platform Electric Aerial Stock Pickers

Product Description

5m 6m Low Level Access Aerial Work Lift Platform Electric Order Picker
Product Description

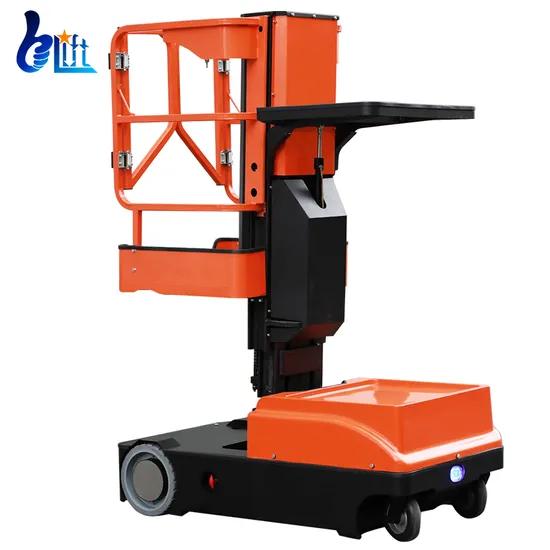

Blift Brand self propelled Order Picker is specially designed for indoor outdoor aerial works with lower height and narrow space. With comapct sizes, light weight and strengthened structure, it is portable and easy to operate.
There are safety precaustions equipped to keep it safe and steady.With the function of automatic walking, turning and lifting, self propelled order picker highly imporves the worker's woking efficiency.
The High End electric order picker can carry goods in multiple areas and has a working height of up to 5 meters, making it easy to pick and place items on the third-level shelves, change price labels or install ceiling decorations and lighting.
Now self propelled order picker is widly used in supermakets, warehouses, working shops, theaters, galleries etc.
Specification sheet

Model Specifications	EAP-H5		EAP-H6
Maximum platform height (mm)	3000	4000
Working height (mm)	5000	6000
Overall machine length (mm)	1480
Overall machine width (mm)	756
Overall machine height (mm)	1475	1805
Standing platform size (mm)	695*720
Grid platform size (mm)	550*740
Standing platform load (kg)	150
Grid platform load (kg)	90
Grid platform travel (mm)	480
Minimum turning radius (mm)	1700
Guardrail height (mm)	1100
Ground clearance (mm)	15
Overall machine weight (kg)	840	870
Performance Parameters
Ascending/descending time (sec)	30/40	40/50
Maximum climbing ability	5° -8°
Front tire size (mm)	Φ200*50
Rear tire size (mm)	Φ305*100
Lifting motor (V/Kw)	24/0.8
Drive motor (V/lkw)	24/0.5x2
Driving speed (Km/h)	0-4
DC battery voltage/capacity (V/Ah)	2×12/100
DC charger (V/A)	24/15

Product Parameters
1.Planetary Gear Drive Motors 2.Simultaneous Lift and Drive Capability 3.One-hand Drive and Steer System 4.Proportional Drive 5.Automatic Five-Hour Battery Charger 6.Battery Discharge Indicator -- Platform and base 7.Lubrication -- Free Anodized Aluminum Mast Sections 8.Maintenance -- Free Mast Guide System 9.Strobe Lights Front and Rear 10.Stand-on Foot Switch Operation Enable Control 11.Platform Gate Operation Interlock 12.Adjustable Height Material Tray 13.Non-Marking Tire Material 14.Lanyard Attachment Anchor Point 15.Hourmeter 16.Horn 17.Shipping Skid 18.Transportation Tie Downs 19.Side and Front Bumpers Detailed Photos

Company Profile
Shadong Belift machinery is specialized in the industry of Manufacturing Aerial Work Platforms and Material Lift Platforms. Establised in the year of 2015, now our products are welcomed the customers all over the world.
Certificate: CE, ROHS, SGS, ISO etc.
Welcome to visit us and negotiate business. We will pick up you and arrange the accommodation hospitally.
Dealers and Wholesalers are especially welcomed and we will give special discounts.

Our Advantages
1.Adopting perfect shot blasting treatment and anti corrosion paint spraying, it is beautifal in apperance.
2. Unique design for Compact structure,it is strong enough to support the loading.
3. Produced by automatic production line and the quality is highly guaranteed.
4. High strengthened steel structures, smoothly lift up and drop down, easily operated, very few faults.
5. Power sources: customised as per the local standards
After Sales Service
1.Spare parts provided freely within quality warranty.
2. Providing user's manual.
3.Liftetime techinique support.
4.24 hours telephone and Internet service
FAQ
1.How can customer buy parts once it break down?
The scissor lift table adopt most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the scissor lift table.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.If it breaks down within one year,we can send the parts free of charge to you.
Certificate:CE ROHS SGS ISO ETC.
