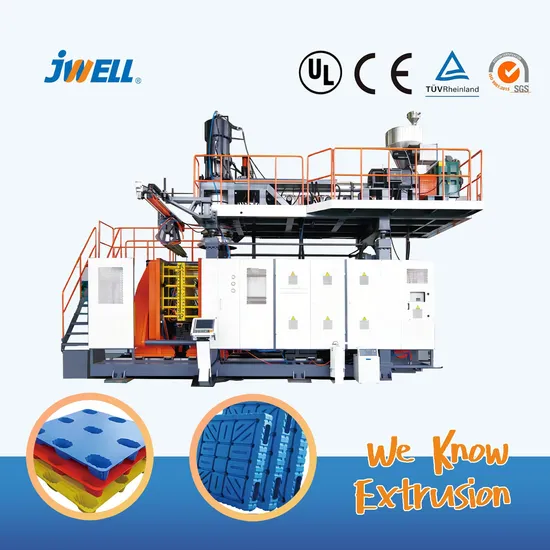

Plastic Machinery Blow Molding Machine of 2000L Pallet Blow Molding Machine

Product Description

Product Description
Product Parameters
Descriptions:
Suitable for producing difffferent kinds of pallet
1.Optional bottom sealing,product eject,core-pulling movement elements
2.Adopt high output extrusion system,accumulating die head
3.Hydraulic Servo control system

Model	Unit	BM2000	BM2000F
Die head structure		Accumulating type
Main screw diameter	mm	150	120*2
Max plasticizing capacity (PE)	kg/h	750-850	800-900
Driving motor	Kw	185	132*2
Accumulating volume	L	75	120
Oil pump motor power	Kw	54.5	54.5
Clamping force	KN	1200	1300
Max space between platen	mm	750-1950	750-1950
Platen size W*H	mm	1600*1800	1600*1800
Max.mould size	mm	1400*1800	1400*1800
Heating power of die head	Kw	79.6	101
Machine dimension L*W*H	m	10.2*8.6*7.3	12*9.5*7.8
Machine weight	T	50	62
Total power	Kw	365	480

Certifications
Company Profile
Jwell was founded in 1997, China Plastics Machinery Industry Association vice president unit, plastic extrusion equipment, chemical fiber spinning complete sets of equipment manufacturers. The production bases of Jwell company cover about 7,000,000 square meters and are consisted with 8 parts, which are located in Jiading district of Shanghai where the head office of the company locates, Haining and Zhoushan City of Zhejiang Province, Taicang City and Liyang City of Jiangsu Province, Chuzhou City of Anhui Province and Thailand. The company has 26 professional companies and nine large-scale gold processing plants and three heat treatment nitriding plants, with an annual output of 3000+ sets of high-grade plastic extrusion production lines and other complete sets of equipment, marketing in more than 120 countries and regions.
Jwell has a high-quality team and an experienced team of mechanical and Electrical Commissioning Engineers, as well as an advanced machining base and Standard Assembly Workshop.
Our Advantages
Workshop Processing
Quality Control
Exhibition
Packaging & Shipping
FAQ
Q1. What about the payment way?
A1. By TT, L/C at sight or ****** trade assurance. 30% down payment should be paid after contract is valid, 70% balance should be paid before shipment.
Q2. Installation and stuff training available from you?
A2. Yes, we have rich engineers around the world which can send to your factory and train your workers. Also we can online guide your members.
Q3. How long is the guarantee?
A3. We offer you high quality machines with 12 months guarantee and reply you as soon as possible within 6 hours.
Q4. If the machine some parts is broken one day, how can we get help from you?
A4. We will send you spare parts free of charge If they are in warranty, not including easy-broken parts. For easy-broken parts, we will only charge a cost fee.
Q5.How does your factory do regarding quality control?
A5.We have passed the IS09001:2000 Quality Management System and CE certificate and we have a special QC department in charge of products' quality. If you also need other certificates, we also can help to apply.
Q6. What is your packaging?
A6. Our conventional packaging is: After doing the anti-rust treatment, wrap the plastic film around the machine and then fix the machine on the wooden bracket.
Q7. How can we check the machines before delivery?
A7. We can provide online checking when testing the machine on site. We will take and prepare detailed testing videos for your checking before the delivery. We accept third-party testing. Except above points,we will provide detailed testing report.
