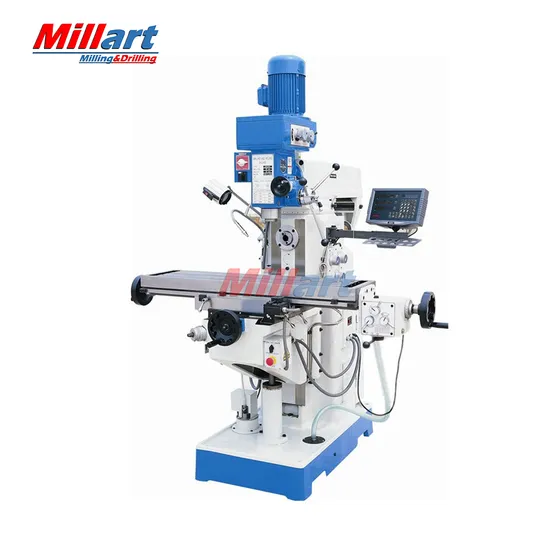

High Quality Vertical Milling Machine Zx6350c Knee Type Drilling Milling Machine
| US$3,000.00-4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX6350C
Type
Knee-and-Column Milling Machine
Object
Hardware
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
1120X280mm
Max. Load of Table
250 Kg
Spindle Taper
ISO40
Transport Package
Wood Case
Specification
CE ISO900 rohs
Trademark
L&T
Origin
Tengzhou China
HS Code
8459590000
Production Capacity
100 PC/Month
Product Description
High Quality Vertical Milling Machine ZX6350C Knee Type Drilling Milling MachineFeartures:
1.X axis is automatic feed through gear box
2.Spindle box is gear driven, quill can fine feed manually.
3.Ram is movable forward and backward, and swivel 180 degrees.
4.Three axis hardened treatment.
5.Mill head can swivel ±45 degree
6.Both vertical and horizontal mill head
Technical parameter:
| Model | Unit | ZX6350C |
| Table size | mm | 1200x280 mm |
| T slot no. /width/distance | mm | 3/16/50 mm |
| Max. load of Table | kg | 250 kg |
| Table XYZ axis Travel | mm | 600x240x355 mm |
| Spindle taper | ISO40 | |
| spindle speed /step -- Vertical | 115-1750/8steps | |
| --Horizontal | 40-1300/12steps | |
| Max.drilling dia. | mm | 30 |
| Max.end milling width | mm | 100 |
| Max. vertical milling Dia. | mm | 25 |
| Max.Tapping Dia. | mm | M16 |
| Quill travel | mm | 120 |
| swivel angle of headstock | ±45º | |
| Vertical spindle axis to column surface | mm | 230-680 |
| Vertical spindle nose to table surface | mm | 30-385 |
| Horizontal spindle axis to table surface | mm | 0-355 |
| Horizontal spindle axis to arm bottom | mm | 200 |
| Ram travel | mm | 500 |
| Longitudinal/cross feed | mm/min | 24-720/8steps |
| Longitudinal/cross rapid speed | mm/min | 720(X) |
| Main motor | kw | 0.85/1.5(V), 2.2(H) |
| Feed motor | kw | 0.37(X) |
| Coolant motor | kw | 0.04 |
| Overall dimension (CM) | cm | 152X1285X215 |
| N/W,G/W | kg | 1350/1500 |
Standard accessories:
| Drill chuck |
| Reduction sleeve |
| Draw bar |
| X axis auto power feed |
| Mill arbors |
| Collet chuck kits |
| Coolant system |
| Chip tray |
| Work lamp |
| Tools and box |
Optional accessories:
| Y axis power feed motor |
| Z axis motorized lifting |
| 3 axis DRO |
| Air draw bar |
| Separately control panel box |
| 58 pcs Clamping kits |
| Spindle protection |
| Worktable protection |
| Worktable swivel ±45 degree |
| Rotary table HV10 |
| Dividing head BS-0 |
| Machine vice 160mm |
Company information:
FAQ
1: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.
