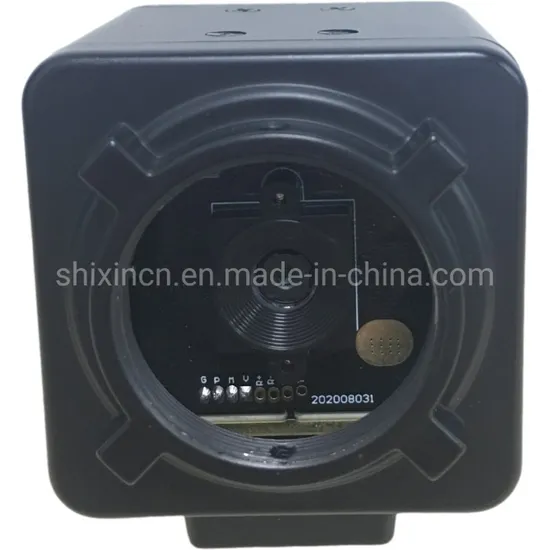

8.0MP USB Camera Module with Auto-Focus Lens Support Industrial Square Housing
| US$55.00-60.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
SX-6800AF-1
Interface
USB2.0
Free Drive Protocol
USB Video Class(UVC)
Sensor
CMOS
Kind
Manual Focus Lens
Certification
CE, FCC, CCC, RoHS, ISO9001: 2000
Feature
High Definition, Auto BLC
Effective Distance
10-30m
Technology
USB Camera
Style
Camera Module
Type
Auto Focus Camera
HDMI Format
Yuy2/Yuyv/Mjpeg
Horizontal Resolution
3264*2448
Sensor Size
1/3.2inch
Transport Package
Normal
Specification
Standard Package Box
Trademark
SHIXIN OR OEM
Origin
Shenzhen China
Production Capacity
5000PCS/Month
Product Description
Sony IMX 179 High Definition 8.0MP USB Camera with Auto Focus used for Portable Scanner, Medical equipment...Features:
-- USB3.0 High Speed Interface
-- 8MP high resolution, suitable for document capture
-- Advanced Sony image sensor
-- Can match with different angle of Lens
Specifications:
| Module NO. | SX-6800AF-1 |
| Module Size | 38*38mm / 32*32mm |
| Resolution | 3264(H)*2448(V) / 8Megapixel |
| Image Sensor | 1/3.2 inch Sony IMX179 |
| Mini illumination | 0.5Lux |
| Pixel Size | 1.4um |
| Focus | Auto |
| Frame Rate | 15 fps for 3264*2448 15 fps for 2592*1944 30fps for 1920*1080 |
| PCB printing ink | BLACK |
| Video Output | USB 3.0 |
| Power | USB BUS power |
| Power consumption | 1.8W |
| Operating system request | Win 2000,Win XP,Win 7,Win 8 |
| Assembly technique | SMT (ROSH) |
| S/N Ratio | 34dB |
| Dynamic Range | 72.5dB |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUV/MJPG |
| F/No | 3.85mm |
| Temperature (Stable Image) | 0°C to 50°C |
| Temperature (Operation) | 0°C to 50°C |
We are the manufacturer of USB Camera, Camera Module, resolution from 1.0mp/1.3mp/2.0mp/3.0mp/5.0mp/8.0mp/12mp with high speed USB port.
Compliance with WDM, VFW, TWAIN, UVC protocol.
Support OEM/ODM, Customization.
