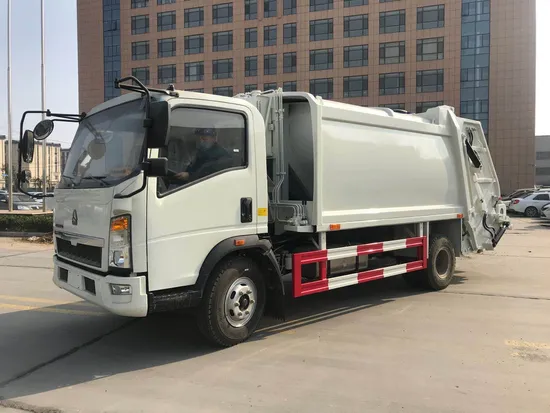

Low Price Chinese Sinotruk New HOWO 6cbm 4X2 Light Truck Garbage Truck for Sale
Basic Info.
Model NO.
4X2 Light Truck Garbage Truck
Volume
3001-6000L
Emission Standard
Euro 2
Transmission Type
Manual
Payload
10
Fuel
Diesel
Drive Wheel
4×2
Brand
HOWO
Usage
Swing Arm Type
Condition
New
Product Name
Garbage Transport Truck
Brand Name
Siontruk HOWO
Truck Type
Rear Loader Arm Roll Garbage
Tire
12.00r20
Emission
Euro-2
Keyword
Garbage Truck
Specification
5650*2050*2400
Trademark
Sinotruk
Origin
China
Production Capacity
5000pieces/Year
Product Description
| SPECIFICATION | |
| VEHICLE SPECIFICATION | DESCRIPTION |
| Truck Model | ZZ1167M4611W |
| Type of Vehicle | 16M3 compactor truck |
| Truck Brand | SINOTRUK-HOWO |
| Driving Position | Left hand Driving |
| The Total Mass | 16,000kg |
| Dead Weight | 12150 |
| Max speed(km/h)(km/h) | 90 |
| Color | Optional |
| Manufacture | China National Heavy Duty Truck Group Co., Ltd. |
| Chassis & Add Components | |
| Frame Details | parallel ladder with U-profiles and riveted cross members |
| Dimension(Lx W xH)(unloaded)(mm) | 9280x2496x3380 |
| Approaching angle/Departure angle(°) | 16/15 |
| Overhang(front/rear) (mm) | 1500/2850 |
| Wheel base (mm) | 4600 |
| Engine | |
| Model | WD615.62 |
| Brand | SINOTRUK |
| Power | 266HP |
| Emission | EURO II |
| Displacement(L) | 9.726 |
| Type | water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
| Kind of Fuel | Diesel |
| Clutch & Gear Box System | |
| Clutch | Single-plate dry clutch, hydraulically operating with air assistance |
| Gear Box | HW13710 10 forwards and 2 reverse. Ratio:5.73 Max toque:1390Nm |
| Brand | SINOTRUK |
| Axles | |
| Front Axle Model | HF7 axle. Capacity: 7000kg |
| Rear Axle | ST16 axle. Capacity:16000kg |
| Electrical System | |
| Battery | 2X12V/165Ah |
| Alternator | 28V-1500w |
| Starter | 7.5Kw/24V |
| Brake System | |
| Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels |
| Auxiliary brake | Engine exhaust brake |
| Steering system | |
| Model | ZF8118 |
| Brand | Germany Brand |
| Wheels & Tyres | |
| Type | 295/80R22.5 |
| Material | Tubeless tire |
| Quantity | 6+1 spare |
| Cabin | |
| Type | HW76 standard cabin |
| (single sleeper, with air-condition), all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | |
| Body | |
| Volume of body(m3) | 16 |
| Volume of filler(m3) | 2.0 |
| Time of one filling cycle(s) | <25 |
| Time of discharge(s) | <45 |
| Pressure of fluid system(Mpa) | 18 |
| Hydraulic system control | Manual |
| Max compression force(kg) | >25000 |
| Lifting time of filler(s) | 8-10 |
| The hydraulic oil tank volume | 150L |
| Oil cylinder type | Double acting piston |
| Operating voltage | 24V |
| Reversing valve | Multiple directional control valve |
