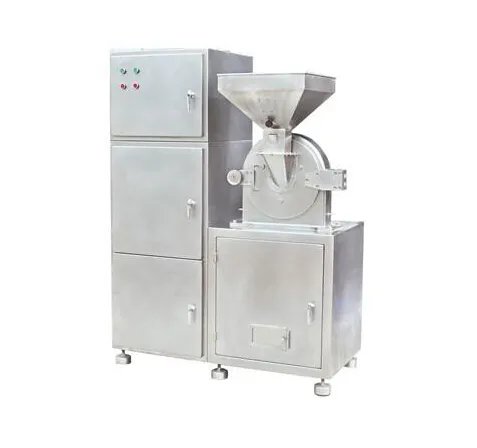

20b IV. V. VI Dust Collecting Grinding Machine Set
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
20b
Feeding Size
6mm
Weigh
480kg
Type
Impact Crusher
Object
Metal
Drive
Electric
Crushing Degree
Fine Grinding Machine
Crushing Style
Grinding and Impact
Principle
Fixed Culling
Cutter Material
High-Speed Steel
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
250-300MPA
Tongs′ Features
Universal Tongs
After-sales Service
1 Year
Warranty
1 Year
Transport Package
Standard Export Wooden Cases
Specification
GMP, CE
Trademark
SPM
Origin
China
HS Code
8465990000
Production Capacity
60-150kg/H
Product Description
Main Application:
Applied for such trades as pharmaceutical, chemical and foodstuff ect., this machine is a new generation coarse crushing equipment combining crushing and dust collection as a whole.
Technical Parameters:
| Model | Production Capacity | Feeding Size | Spindle speed | Crushing Fineness | Crushing Motor | Dust collecting motor | overall dimension | weight |
| 15BIV.V.VI | 10-50kg/h | 6mm | 6000r/min | 20-120mesh | 2.2kw | 0.55kw | 950*450*1550 | 220kg |
| 20BIV.V.VI | 60-150kg/h | 6mm | 4500r/min | 20-120mesh | 4kw | 1.5kw | 1120*600*1750 | 480kg |
| 30BIV.V.VI | 100-400kg/h | 10mm | 3800r/min | 20-120mesh | 5.5kw | 1.5kw | 1250*660*1750 | 550kg |
| 40BIV.V.VI | 160-1000kg/h | 12mm | 3400r/min | 20-120mesh | 11kw | 1.5kw | 1450*700*1750 | 680kg |
Working Principle:
By means of relative motion between movable and fixed fluted discs, material is crushed by impact and friction of the teeth and impact among the materials. The crushed material enters into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by dust collector through a bag. Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.
