Automatic Towel Longitudinal Hemming Sewing Machine Supplier

Product Description

Product DescriptionProduction of Longitudinal hemming machine
Stock machine is available.Very fast delivery time.

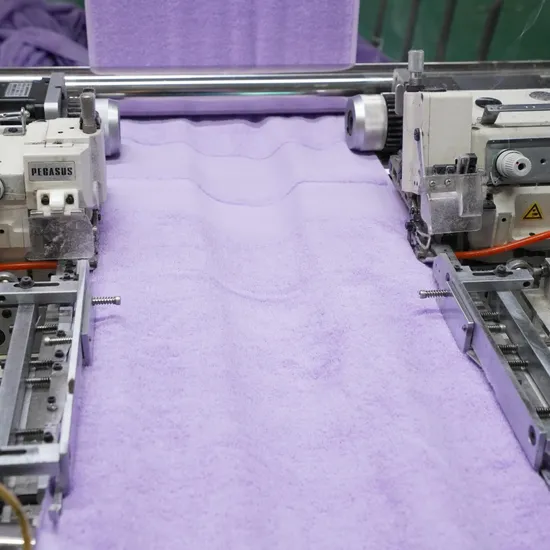

Automatic length hemming machine
Working width 20-125cm (adjustable)
Speed 15-18m/min
Package size 2.3x2.x2.3m (L X W X H)
Standard configuration: sewing machine single needle Ronbow brand,China,double head
Servo motor control system
Main control system: Mitsubishi
Cross Hemming Machine Specifications1,Auto thread cutting(thread-ends within 2MM)extraordinary quality.
2,Auto four-side folding and sewing,faster speed.
3, Auto label-sewing(multiple labels)
4, Auto fabric cutting and thread trimming
5, Auto Stack-up
6, Intelligent Touch Operating System
7,SPV Data Management System(Cloud Management)
8, Auto Button-Start,Convenient Operation
9, Auto Edge-cutting,Size-Standardized
Product Parameters

SQ Towel length sewing machine specification
1	PLC	Mitsubishi
2	Speed Limits	16 m/minute
3	Actual Speed	15 m/minute
4	Working Width	Working width 120cm
5	Type of Working	three needle,5 lines
6	Folder	hem size 6/7/8 mm
7	R-Head	Pigasus-W500PC
8	Edge Sensor	Optical fiber sensor,Panasonic Japan
9	Photoelectric sensor	Panasonic Japan
10	Stepping Motor	Chinese brand
11	Total power	3kw,380V,50HZ.3PH or 220V,50HZ,1PH
12	Cut Waste collect	Vacuum System 2HP
13	Pressure of Comp.Air	8.0 bar(actural lower than 8bar)
14	Touch screen	FLEXEM
15	Pneumatic Component	AirTAC Taiwan,China
16	Bearing	Imported quality
17	Cloth cutting knive	Tungsten steel.Water-resistant
18	proximity switch	Autonics
19	Machine frame	2 sets as one unit

Our AdvantagesMain Maintenance Cost is lower
User-Friendly Operation
Competitive Pricing,the best price in China
We are manufacturer of terry towel,also produce the machine for weaving towel and towel sewing machine.
We can supply whole production line for terry towel
After Sales Service1.full communication before making contract Comminicate on time after making contract
2.Arrange visa and air ticket in advance when the goods arrive at customer's factory.
3.Send good engineer to guide customer to install the equipment and trial the machine.
4.10days more Training guidance is available after installation trial.
5.Customer can send 2-3 engineer to China,we will arrange them to get trainning in good factory,to learn management,working skill,and operation training.
6.Online service is available Spare parts for reservition:we will advise customer to buy,also will give some for free.
SQ full product list

Name	Model	Usage	Advantages
air jet loom	SQ930	weave all fabric	High speed,low price
air jet loom	SQ910	calico or gauze fabric	low price
air jet loom	SQ710	gauze fabric	lower price
air jet loom	SQ720	glassfiber fabric	high output
air jet loom	SQ930M	terry towel	high output,low price
air jet loom	SQ810	velvet fabric	high output,low price
water jet loom	SQ822	filament heavy fabric	low price
water jet loom	SQ408	light weight fabric	high speed
water jet loom	SQ8100	high quality polyester fabric	good quality
water jet loom	SQ857	PP PE fabric for tarpaulin	good quality,low price
warping machine	SQ-YGA	Direct warping,for gauze	good quality
split warping machine	SQ188	for mono yarn	low price
sizing machine	SQ-HT	cotton yarn,blend yarn,short fiber yarn	good quality,low price
sizing machine	SQ-JSD	filament yarn	good quality
medical gauze production line		weaving-bleaching-final packing	more experience
terry towel production line		warping-weaving-dyeing-sewing	save customer time
cotton/rayon fabric production line		warping-sizing-weaving-packing	save customer engergy
shemagh loom		shemagh yashmagh Arab scarf weaving machine	more experience
leno loom		leno fabric weaving machine	more experience

Terry Towel Production Line
Warping-Weaving-Dyeing-Sewing
Normal Fabric Production line
Warping - Sizing - Weaving (with all assistant equipment)
Medical gauze production line
Warping - Weaving - Bleaching - Gauze machine(cutting,folding,rolling,packing machine)
