Stone Engraving Machine Stone Engraving Machine 3D Granite Marble Stone Engraving Carving Machine

Product Description

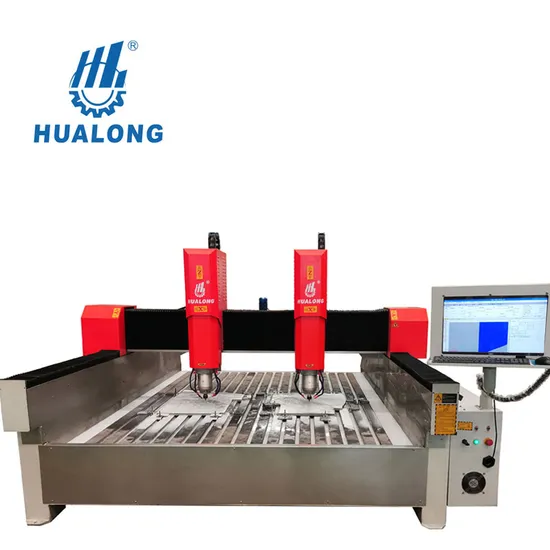

CNC Stone Carving Machine HLSD-2030-2 equipped with CNC control system and two working heads, is a reliable and versatile machine for engraving, drilling, lettering, cutting all kind of stones, such as marble, granite, quartize, sandstone or artifical stone or ceramics, glass. It's also workable for die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc.
Main Features:
1) Adopt NcStudio CNC control system large color screen display, easy and simple to operate.2) Break to rusume function. Continue carving from break point after power resuming from failure.3) Compatible with Artcam JD Paint CAM software and other software programs.
4) High-performance new material motors and drivers can resist heat, shock and bad environment, ensure the working high speed and accuracy..5) Professional vector control Inverter guarantee the variety working speed, smooth operation and make lower power consumption.6) Aircraft-quality surface oxidized aluminum profile table which adding thicken PVC board, Enhancing the loading capacity of the platform.7) Steel tube lathe bed, low center of gravity, strong bearing capacity, stable and long working life.

Thechincal Data
Model No.	HLSD1530-2	HLSD1825-2	HLSD-2030-2	HLSD2520-2-20 / 24
Workbench dimension (mm)	1500*3000	1800*2500	2000*3000	2500*2000
Number of working heads	2 pcs
Gantry height	450 mm
Feeding height	≤ 400 mm(customizable)
Spindle power	3.7 /4.5 / 5.5 kw (customizable)
Max. moving speed	30000 mm/min
Diameter of engraving tool	ø1-16 mm
Positioning precision	+/- 0.03 mm
Repeat positioning accuracy	+/- 0.02 mm
Command code	G code
Driving system	Step / Hybrid servo / Servo (customiable)
Cooling system	Water cooling
Gross power	15 kw
Gross weight	2200 kgs
Dimensions (L x W x H - cm)	400x230x220		520x230x220

Application:
* Bas-reliefs, Line engraving Cutting, Edge inversing
* Funeral tablets/gravestones, Milestones
* commemorative plates
* Furniture, Fireplace.
* Countertops, Sink hole, grooving, shower trays
Detailed Images

Control system -- CNC
Brand: NcStudioOriginal: China
NCstudio CNC system, keyboard operation, large screen display, easier to operate and maintain, more humanized design
Water-cooling Spindle
Power: 3.5/4.5/5.5 kw (customizable)
Rotating Speed: 6000-24000 rpm/min
Frequency changing water cooled spindle with high-speed bearing technology, make low noise, fast response, high rotational speed
and safeguard stability for longtime work.
Guide Rail, Ball Screw
Origin: Taiwan, China
High quality guide rail, ballscrew, rack used on X, Y and Z axises provide smooth motion and tight control for precise and quality
engraving.
Auto Lubricating System
Automatic oil feedingand lubrication system makes the regular maintenance very easy and reduce waste.
Hand Wheel
Remote or close to control the movement of working heads, especially convinient for positioning the original processing point.
Machines with different quantity head are customizable
