Agricultural Products Harvester Tractor Potato Harvester 4ux-110

Product Description

Product Description
AUTOMATIC LOADING HARVESTER
Potato automatic loading harvester has good performance and efficiency and can harvest crops directly into the transport truck.
It can be made according to the actual planting situation of farmers with the corresponding width of the harvester, which is mainly used for harvesting Potatoes, sweet potatoes, and other underground root crops.
Potato automatic loading harvester has automatic loading and harvesting efficiency high, low damage rate, light operation, no vibration, no blocking grass, fast soil leakage, simple structure, long service life, and so on.
These machines come in different sizes and types, including manual, semi-automatic, and automatic models, as well as those specifically designed for small-scale or large-scale farming operations.
Product Parameters

4UX-Roll Parameter List
NO	PROJECT	DESIGN VALUE
1	Model Number	4UX-83(ZG)	4UX-90(ZG)	4UX-100(ZG)	4UX-110(ZG)
2	Structural Style	Three Point Suspension
3	Walking Mode	Wheel Type
4	Number of tires/tracks	2
5	Tire/track spacing(center)	1010mm	1080mm	1180mm	1280mm
6	Minimum Ground Clearance	170mm
7	Working size(length*width*height)	1820*1120*1100mm	1820*1190*1100mm	1820*1290*1100mm	1820*1390*1100mm
8	Overall Weight	290kg	320kg	340kg	360kg
9	Working Width	830mm	900mm	1000mm	1100mm
10	Operation Efficiency	0.14-0.27 hectares/h	0.14-0.34 hectares/h	0.14-0.34 hectares/h	0.14-0.34 hectares/h
11	Supporting Power/Machine Horsepower	≥40HP	≥40HP	≥50HP	≥50HP
12	Matched To The Power Output Shaft Speed	540r/min
13	Matching Hanging Width	560mm	570mm	570mm	570mm
14	Type Of Excavation Device	Set the blade
15	Blade Material	65Mn
16	Digging Depth Adjustment Range	0-250mm
17	Pick Up The Smallest Size	38.5mm
18	Type of cleaning separation	Vibrating Screen
19	Conveyer Type	Grid Chain
20	Conveyor Chain	50mm
21	Chain Bar Material	55CrSi
22	Collection Methods	Pickup On The Ground
Note:The values in the specification table are theoretical values,please refer to actual values

4UX-130 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	9	Matched To The Power Output Shaft Speed	540r/min
2	Walking mode	Wheel Type	10	Matching Hanging Width	800mm
3	Working Size (length*width*height)	2670*1560*1350mm	11	Blade Material	65Mn
4	Transport Dimensions (length*width*height)	2220*1560*1170mm	12	Digging Depth Adjustment Range	0~150mm
5	Overall Weight	580kg	13	Depth Limiting Mechanism Type	Depth Roller
6	Working Width	1300mm	14	Conveyer Type	Grid Chain Type
7	Operation Efficiency	Estimated at 0.2~0.33ha/h	15	Conveyor Chain Clearance	55mm
8	Supporting Power/Machine Horsepower	70~100(Bridge) Horsepower	16	Chain Bar Material	55CrSi
Note:The values in the specification table are theoretical values,please refer to actual values.

4UX-160 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	9	Matching Hanging Width	800mm
2	Working Size (length*width*height)	2670*1860*1350	10	Blade Material	65Mn
3	Transport Dimensions (length*width*height)	2220*1860*1170	11	Digging Depth Adjustment Range	0~150mm
4	Overall Weight	620KG	12	Depth Limiting Mechanism Type	Depth Limiting Wheel
5	Working Width	1600mm	13	Conveyer Type	Grid Chain Type
6	Operation Efficiency	Estimated 0.267~0.4 hectares per hour	14	Conveyor Chain Clearance	55mm
7	Supporting Power/Machine Horsepower	70~100 (Bridge) Horsepower	15	Chain bar material	55CrSi
8	Matched To The Power Output Shaft Speed	540r/min	16	Walking mode	Wheel Type
Note:The values in the specification table are theoretical values,please refer to actual values.

4UX-Disk Cutting Parameter List
NO	PROJECT	DESIGN VALUE
1	Model Number	4UX-90(QP)	4UX-100(QP)	4UX-110(QP)
2	Structural Style	Three Point Suspension
3	Walking Mode	Wheel Type
4	Number of tires/tracks	2
5	Tire/track spacing(center)	1080mm	1180mm	1280mm
6	Minimum Ground Clearance	170mm
7	Working size (length*width*height)	2130*1190*1160mm	2130*1290*1160mm	2130*1390*1160mm
8	Overall Weight	310kg	330kg	350kg
9	Working Width	900mm	1000mm	1100mm
10	Operation Efficiency	0.14-0.27 hectares/h	0.14-0.34 hectares/h	0.14-0.34 hectares/h
11	Supporting Power/Machine Horsepower	≥40HP	≥50HP	≥50HP
12	Matched To The Power Output Shaft Speed	540r/min
13	Matching Hanging Width	570mm	570mm	570mm
14	Type Of Excavation Device	Set the blade
15	Blade Material	65Mn
16	Digging Depth Adjustment Range	0-250mm
17	Pick Up The Smallest Size	38.5mm
18	Type of cleaning separation device	Vibrating Screen
19	Conveyer Type	Grid Chain
20	Conveyor Chain Clearance	50mm
21	Chain Bar Materia	55CrSi
22	Collection Methods	Pickup On The Ground
Note:The values in the specification table are theoretical values,please refer to actual values

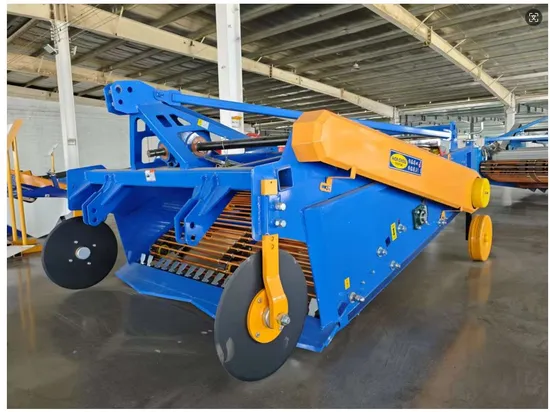

Detailed Photos
MULTIFUNCTIONAL HARVESTING:
This machine is designed to harvest multiple crops, including potatoes, sweet potatoes, and peanuts, making it an ideal investment for farmers with diverse agricultural needs.
RELIABLE PERFORMANCE:
The machine features a gear drive system and a powerful motor, ensuring reliable performance and durability in various farming conditions.
SUITABLE FOR VARIOUS FARM SIZES:
This harvester is suitable for farms of all sizes, including small, medium, and large-scale operations, making it a versatile addition to any agricultural operation.
OUR ADVANTAGE:
1.It features working efficiency, lower breakage rate, and lower skin break rate.
2. Light & quick running without vibration, no blocking by the grasses, leaks the soil quickly, lower buried potato rate.
3. The penetrating angle of the excavating device is the same as the elevation angle of the transfer & separate device. It effectively solves the problem of soil accumulation after shoveling.
4. Matching power is the common four-wheel tractor, it features wide adaptation, strong applicability, low investment, and ease of operation.
OUR FEATURE:
1. Single-row potato harvester machine for sale can be used in various tubers harvest, such as potato, sweet potato, peanut, garlic, and so on.
2. This Single-row potato harvester machine for sale has high efficiency, low breaking rate, and fast working speed without vibration.
3.The Single-row potato harvester machine for sale has no block grass & soil leakage fast, simple structure & durable.
