Chilli Flakes Coarse Crusher From Shenzhou
| US$8,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CSJ
Dimensions(mm)
560X580X1200
Weight(Kg)
220
Type
Impact Crusher
Drive
Electric
Crushing Degree
Fine Grinding Machine
Crushing Style
Grinding and Impact
Cutter Material
High-Speed Steel
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
>300MPA
Tongs′ Features
Adjustable Tongs
After-sales Service
24 Hours on Line
Warranty
1 Year
Transport Package
Wooden Case
Specification
560x580x1200
Trademark
Shenzhou
Origin
China
Production Capacity
1000sets/Year
Product Description
Chilli Flakes Coarse CrusherCSJ Series chilli flakes coarse crusher is suitable for the rough crusher processing of various chemical, pharmaceutical, food and other tough and hard materials, such as rubber, plastic, traditional Chinese medicine raw materials, epoxy resin, sugar, etc.The coarse crusher has the advantages of simple structure, small and reasonable, convenient operation, low noise, low energy consumption, good crushing effect, uniform particles, etc. it is an ideal equipment for coarse crushing.Structure and Principle

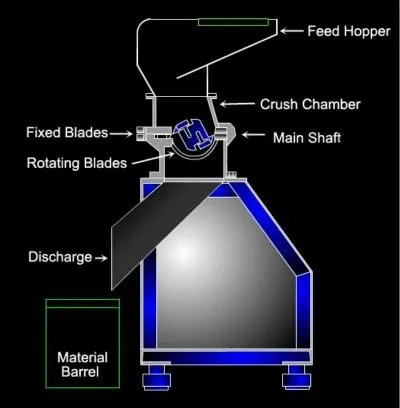

| The coarse crusher is composed of four parts: frame, motor, feed hopper and pulverizing mechanism. The material enters the pulverizing chamber directly through the feed hopper, and the purpose of pulverizing is achieved through the strong shearing of the moving knife and fixed knife with medium speed rotation. By adjusting the clearance between the moving and fixed knives, the size of the particles can be controlled. Through the control of the screen, the particles that meet the requirements will be discharged from the outlet, while the materials that do not meet the requirements will continue to be cut and crushed in the crushing chamber until they meet the requirements. |
Mesh diameter of coarse crusher: 3-20mm(Customizable)
Comminution Effect
Coarse crushing, fineness adjustable 3-20mm
Technical Parameter
| Model | CSJ-200 | CSJ-300 | CSJ-400 | CSJ-500 | CSJ-600 |
| Capacity(kg/h) | 50-200 | 80-300 | 100-500 | 120-700 | 150-1000 |
| Feeding granularity (mm) | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 |
| Discharging granularity (mm) | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
| Spindle rotation speed(r/min) | 650 | 650 | 650 | 650 | 650 |
| Motor Power(kw) | 3 | 4 | 5.5 | 7.5 | 11 |
| Dimensions(mm) | 560×580×1200 | 560×680×1250 | 560×780×1300 | 560×880×1500 | 560×980×1700 |
| Weight(kg) | 220 | 300 | 420 | 580 | 750 |
