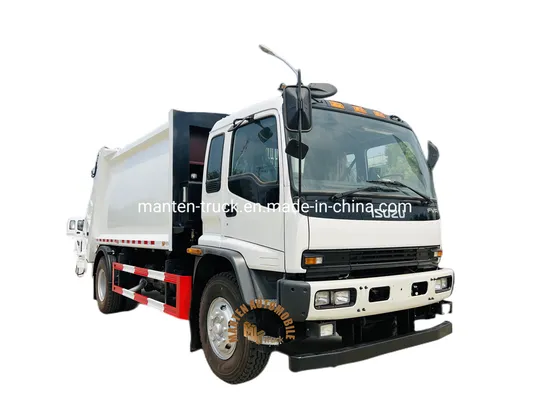

4X4 Isuzu Fvr 10 Cubic Meters 10 Ton Compactor Compressed Garbage Truck for Waste Colleaction

Product Description

HUEBEI MANTEN AUTOMOBILE CO.,LTD
I. Details of 4X4 ISUZU FVR 10 cubice meters 10 ton compactor Compressed Garbage Truck for waste colleaction
(1) Functions:
Garbage compactor (also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck,rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.
Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing repollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.
(1) More than 12 years professional manufacturer experience.(2) CCC ISO9001 agreement (3) Be designed according to your requirements (4) Small order can be accepted (5) We accept 100% inspection, welcome to our factory at any time
(6) 12 month quality guarantee term We can offer 4x2, 6x4, 8x4, Dongfeng, Sinotruck, FOTON, SHACAN, FAW, CAMC, ISUZU, JMC, JAC with 3m3 to 20m3 garbage compactor trucks.
II. Technical data of 4X4 ISUZU FVR 10 cubice meters 10 ton compactor Compressed Garbage Truck for waste colleaction

Chassis parameters
Chassis model	QL1180XMFRY		Chassis brand	ISUZU
Overall dimensions	8500X2500X2920mm		Wheel base	4500mm or 4700mm
Front/rear wheel track	1504/1425mm		Front/rear suspension	1335/2450mm
Approach/departure angle	24/14°		Maximum speed	95km/h
Cab	Configuration		FVR single cab,hydraulic mechanical flip,channel type instrument panel,air conditioner,allowable 3 passengers
	Color		white,other color is optional
Engine	Model		6HK1-TCL
	Emission		Euro 5
	Type		6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,4- valve,diesel engine
	Rated power		240hp
	Displacement		7780ml
	Max.torque		760N·m
	Bore x stroke		115*125mm
	Manufacturer		Isuzu Engine (Chongqing) Co., Ltd.
Tire	Size		295/80R22.5 Tire, With one spare tyre
	Number		6+1 nos
Front axle	6.3 tons
Rear axle	13 tons
Drive form	4*2
Rated voltage	24V,DC
Transmissions	MLD six speed transmission, 6 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
Refuse compactor structure parameters
Equipment
Loading capacity	10m3-12m3
System of loading	Mechanized, rear loading
Modes of the pressing	Manual,semi-automatic,automatic,lifting rear part operation manual,loading,pushing,pressing, pushing out automatic
Body
Version	All-metal
Sidewalls	Sheet carbon steel (thickness: 4 mm)
Bottom	Sheet carbon steel (thickness: 5 mm)

III. Details and operation of Compactor Garbage Truck
Load operation is less than 30 seconds, unloading operation time is less than 45 seconds;
Can choose 240L(single bin,double bins)or 360L,660L,1100L standard bin lifting and turnover mechanism,can also choose ground hopper and other kinds of loading mechanism.
Automatic control-- The hydraulic control operation system can be controlled by electric and manual, one operation system button installed in the cab, the other operation system button installed at the back of the upper body.
IV. Production workshop
There are more than 500 workers in our factory. Every production details are strictly controlled by our technicial engineers and production manager.
V. PRODUCT SHIPPING (RORO OR BULK SHIP OR CONTAINER)
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
VI. COMPANY INFO HUBEI MANTEN AUTOMOBILE CO.,LTD is an authorized special truck manufacturer which has many years in design ,product ,sales and service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck , wrecker truck , refrigerated truck and etc. Main info as below:
Welcome to contact with us for more info. We will offer you the best truck as we can .
