Iron Ore Multi-Cylinder Single Cylinder Hydraulic Cone Crusher Machine
| US$2,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
HP series
Application
Mineral Industry
Drive
Electric
Crushing Style
Impact
Compressive Strength (For Crushing)
>300MPA
Crushing Degree
2mm-300mm
Finished Surface
Multifarious
Certification
CE, ISO, CCC
Condition
New
Color
Customized
Factory Visit
Any Time You Can
Spare Parts Supply
Lifelong Time
Product Name
Good Quality Crushing Machine Cone Breaker Crusher
Test&Installation
Senior Professional Engineers Assigned
After Sale Service
7*24hours
Max Feeding Size
120-200mm
The Machines Classification
Crushing Equipment
Price
Resonable
Pre Sales Service
The Whole Time
Transport Package
Suitable for Ocean Shipping
Specification
all kinds of sizes
Trademark
HONGJI
Origin
China
Production Capacity
100 Sets/Month
Product Description

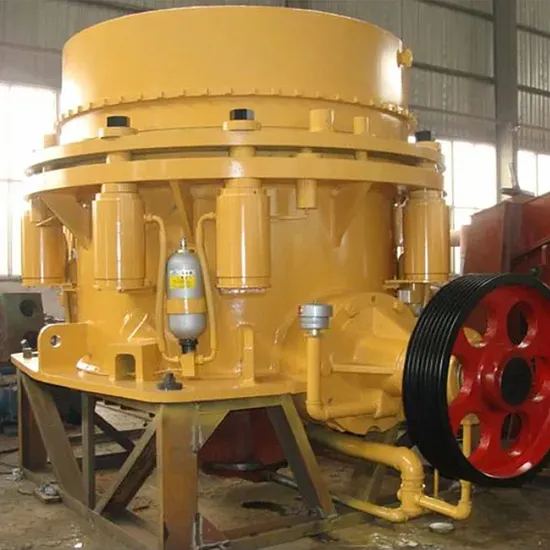

Product DescriptionHydraulic Cone Crusher The hydraulic cone crusher of H series adopts computer optimization design to speed up main shaft speed. The unique crushing chamber replace system can quickly replace components in crushing chamber to meet different size requirement. This hydraulic cone crusher is widely used in Mining industry. It is suitable for hard stone such as granite and basalt. The friction disc design and rotation of eccentric shaft bushing around fix cone plus more reasonable "labyrinth seal" system are unique features of H series, which have more advantages like easier operation, larger application scope, more reliable, more smooth functioning comparing with spring and traditional cone crusher. It is the most ideal equipment for large stone crushing factory and mining industry.
Product Features
1,The hydraulic system allows for easy and precise adjustment of the crusher's discharge opening size.
2,Hydraulic cone crushers are equipped with hydraulic cylinders that provide overload protection.
3,High-performance crushing chamber.
4,Automatic control system.
6,Efficient power utilization.
7,Versatility.
8,Enhanced safety features.
Product Parameters
| Model | Feeding Size(mm) | Discharge size (mm) | Capacity(t/h) | Motor Power(kw) |
| HP100 | 33-175 | 6-19 | 45-140 | 4P 100 |
| HP200 | 116-235 | 8-19 | 90-250 | 4P 160 |
| HP300 | 120-265 | 8-25 | 115-440 | 4P 220 |
| HP400 | 135-360 | 10-30 | 140-630 | 4P 315 |
| HP500 | 150-370 | 10-38 | 175-790 | 4P 400 |
| HP800 | 235-450 | 10-38 | 260-1200 | 4P 830 |
Working Priciple
Success Case
Company Profile
Packaging & Shipping
Certifications
