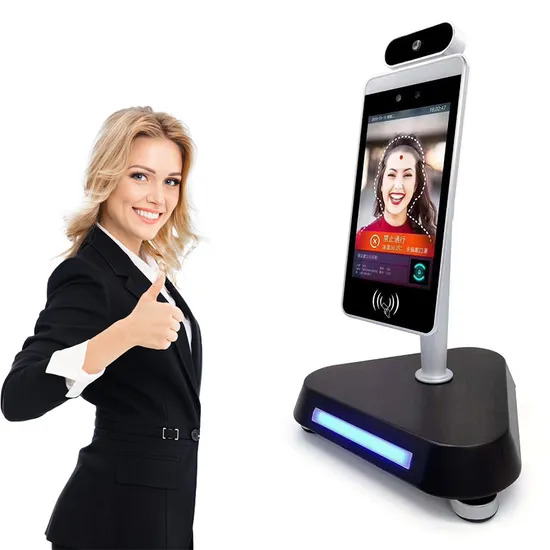

Face Recognition Terminal with Thermal Infrared Temperature Measurement Machine and Time Attendance for Access Control System

Product Description

Product Feature:
- Non-contact automatic body temperature detection, brush human face and perform high-precision infrared human temperature acquisition at the same time, fast and high effect
- Temperature measurement range 30-45 (ºC) Accuracy ± 0.2 (ºC)
- Automatically identify unmasked personnel and provide real-time warning
- Support temperature data SDK and HTTP protocol docking
- Automatically register and record information, avoid manual operation, improve efficiency and reduce missing information
- Support mid-range temperature measurement and real-time warning of high temperature
- Support binocular live detection
- Unique face recognition algorithm to accurately recognize faces, face recognition time <500ms
- Support human motion tracking exposure in strong backlight environment, support machine vision optical wide dynamic ≥80dB
- Adopt Linux operating system for better system stability
- Rich interface protocols, support SDK and HTTP protocols under multiple platforms such as Windows / Linux
- 7-inch IPS HD display
- IP34 rated dust and water resistant
- MTBF> 50000 H
- Support 22400 face comparison library and 100,000 face recognition records
- Support one Wiegand input or Wiegand output
- Supports fog through, 3D noise reduction, strong light suppression, electronic image stabilization, and has multiple white balance modes, suitable for various fields
Scene demand
- Support electronic voice broadcast (normal human body temperature or super high alarm, face recognition verification results)

Screen
Size	8 inch, full-angle IPS LCD screen
Resolution	1280x800
CAMERA
Type	Design of double camera
Sensor	1/2.8" SONY starlight CMOS
Resolution	1080P
Lens	6mm
White balance	Auto
Face exposure	Support
Mirror	0°, 90°, 180°, 270° rotation
Image settings	Exposure, gain, contrast, saturation and brightness adjustable
ACCESSORIES
Complementary light	IR light, LED white light
Identity module	Support ID card recognize module optional
Loudspeaker	Support voice broadcast after successful recognition
Network module	Built-in 4G All-Netcom Module optional
FUNCTION
Network protocol	IPv4, TCP/IP, NTP, FTP, HTTP
Access protocol	ONVIF, RTSP
Safe mode	Authorized user name and password
Face recognition	Support
Event linkage	Capture TF card storage, FTP upload, alarm output linkage, wiegand output linkage, voice broadcast
Remote upgrade	Support
Temperature measurement range	30-45 (ºC)
Accuracy	± 0.2 (ºC)
FACE RECOGNITION
Detection type	Support lving face detection, effective prevention of print photos, phone photos and video spoofing
Face detection number	Sync detection≤10pcs face targets, detection target size filter can be adjusted
Recognition face size	Pupils distance ≥ 60 pixels; Face pixel ≥150 pixels
Face database capacity	Support built-in ≤ 20000 faces; support black/white list
Posture	Support side face filter, comparable within 20 degrees in vertical and 30 degrees in horizontal
Shelter	Recognizable with ordinaryglasses and short bangs hair
Expression	Recognizable with slight expression
Capture/comparison rate	Capture rate≥98%(meet the above conditions); Recognition rate≥95%
Response speed	≤1s
Face / card recognition	Support 1:1 / 1:N mode
Local storage	Support storage of more than 100,000 capture and recognition records
Recognition area	Full image recognition, support zone optional setting
Upload mode	TCP, FTP , HTTP upload, SDK function calling upload
INTERFACE
Network interface	RJ45 10M/100M network adaptative
Alarm input	2CH
Alarm output	2CH
RS485	Support
TF card	Max.support 128G local-storage
USB	1CH
Wiegand interface	Support wiegand 26,34 protocol
Reset	Support
SIM card	Support
GENERAL
Operating temperature	-20°C ~ 60°C
Operating humidity	0%-90%
Protection grade	IP66 (protective cover optional)
Power supply	DC12V
Power consumption (max)	≤12W
Dimensions(mm)	399mm(H)*138mm(W)
Weight/PCS(g)	TBD

FAQ
1.Q: Are you a factory or trading company?
-A: We are a OEM&ODM factory.
2.Q: What payment methods your company accept?
-A: We accept most of payment methods,but mainly accept T/T, L/C, Western Union and Paypal.
3.Q: How long is the warranty time for your products?
-A: Our officially promised warranty time is one whole year after delivery at best.
4.Q: I haven't done business with you guys before,how can I trust your company?
-A: And we've got quite a lot authority certificates,for example,CE,RoHS, FCC, ISO9001,etc.I hope those above will be persuasive enough.Our Trade Assurance Limit is US $500,000,and it is still going up.
5.Q: What's the shipment terms and delivery time of your company?
-A: Well,the depends on the quantity of your order.As you know ,we need time to manufacture the machines.But mostly, the shipment time is 3-8 working days after delivery.For delivery way,for Sample&Bulk order<100KG,we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order>100KG,as for detailed cost, it depends on your final order.
6.Q: Do you give me any discount?
-A: I'm surely try my best to help you get those by the best price and good service at the same time.
7.Q: I would like to ask you if it's possible to have my logo on the products.
-A: We hope you know that our company perfectly support customized logo service.But,we also hope you know it's an extra service,so a little bit extra service fee is needed.
