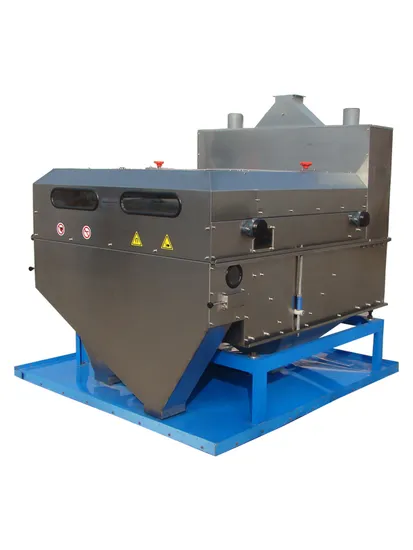

Advanced Magnetic Belt Dirt Sorter for Removing Ferrous Impurities From Granular Material After Pre-Cleaning Process

Product Description

Product Description
Magnetic belt dirt sorters are specialized in separating stuffs with weak magnetism(such as clods, pumices, stones, brick chippings, mineral substance and so on) from granular materials after pre-cleaning process. The materials fed into the machine by vibrating feeder and conveyed by belt, the stuffs with weak magnetism are caught by magnetic roller, and discharged to outlet of impurities, the materias are discharged to another outlet to next process.

Detailed Photos
Product Parameters
1) Magnetic Performance: Gauss value on the surface of magnetic roller≥16000Gs, Gauss value on the surface of belt≥10000Gs-13500Gs.
2) Material of housing and other parts: 304 stainless steel/316 stainless steel
3) Surface finish: Brushed
4) Inside magnets: Strong permanent rare earth magnets
5) Working Temp.<: 80ºC, 100ºC, 120ºC, 150ºC,

Model No.	Inlet AXBmm	Outline Dimension CXDXEmm	Belt Width mm	Power KW	Working Voltage V	Capacity T/h
SCXC-050	100X100	900X578X1180	500	0.37	220/380	1-2
SCXC-097	116X150	1940X1100X1477	970	0.55	220/380	2-3
SCXC-150	150X150	1940X1600X2123	1500	0.75	220/380	3-6
SCXC-230	200X400	2030X2500X2360	2300	1.10	220/380	6-10

Certifications
Packaging & Shipping
SunMag provide different packing methods to protect the magnetic separator in good condition to suit for Air, International express, Sea shiping methods.
Goods will be packed into carton, wooden pallet, or wooden case.
Or if the customer has specific requirements of packing, we will arrange the packing according to this.
Company Profile
Sun Magnetic Sys-Tech Co., Ltd founded in 2001 by the founder Mr. Sun Jianguo in Beijing, China, as a professional and well equipped manufacturer of permanent magnetic system, we have more than 20 years of experience in R&D, design and manufacture.
SunMag foucus on design an manufacture of magnetic separators to remove ferrous contaminants from dry solids(powder & granule), liquids and slurries in the processing industry, and provides customers with professional solution, top quality and great service.
With quality assurance of ISO9001 certification, our products are mainly exported to Southeast Asia, Europe, North and South America and Australia, and widely used in food industry, pharmaceuticals Top quality and continuous improvement are perpetual commitment to customers in the entire process of service.
Exhibitions Attended:
Domestic market:Lithium battery exhibition, Packing exhibition, Food processing exhibition, Plastic exhibition Pharmaceuticals exhibition, and so on.
Abroad market: GEAPS(USA), IAOM(USA & Southeast Asia),IPPE(USA), VICTAM(Europe & Thiland), IDMA(Türkiye), Eurotier(Europe),
For more specific information of our all kinds magnetic separator, you could visit our website.

Our Advantages
1) Strong rare earth magnets
2) Automatic cleaning structure
3) Belt replaceable
4) S EW or NORD gear reduction drive motor
5) Special voltage available
6) Food grade
7) Simple type is supplied
FAQ
Q1:How about the cleaning effect of SunMag Magnetic Separators?
A: ABOVE 99%.
Q2: How about your delivery date?
A: 15-40 days.
Q3: Do you test all your magnetic separtor before delivery?
A: Yes, we have 100% test before delivery
Q4: What is the usual payment method?
A: T/T, L/C, VISA, or other payment .
Q5: Could the magnetic separator be customized?
A: All the magnetic separator could be customized according to the customer's specific requirements.
Q6: Do you have a factory?
A: We are a manufacturer, all the magnetic separators are designed and produced by ourselves, and we have our own technical R&D team.
Q7: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
