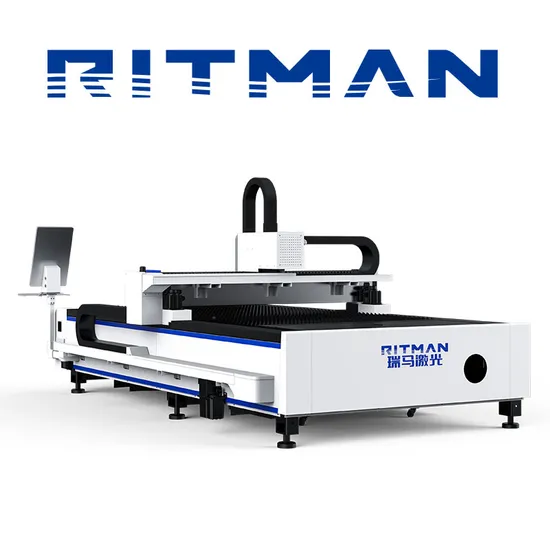

1.5kw 3kw 6kw 12kw 20kw High-Precision Fiber Optic CNC Metal Laser Cutting Machine for Fast Cutting of Copper, Aluminum, Carbon Steel and Stainless Steel Plates

Product Description

Detailed Photos
Product Parameters
model

model	RM-LC FS3015	RM-LC FS4015	RM-LC FS6015	RM-LC FS4020	RM-LC FS6020	RM-LC FS6025
power	1500W-6000W	1500W-6000W	1500W-6000W	1500W-6000W	3000W-12000W	3000W-12000W
Processing format	3000mmx1500mm	4000mmx1500mm	6000mmx1500mm	4000mmx2000mm	6000mmx2000mm	6000mmx2500mm
Countertop load-bearing	900kg	1200kg	1800kg	1600kg	2500kg(1-6kw) 3800kg(12kw)	2950kg(1-6kw) 4700kg(12kw)
acceleration	1G	1G	1G	1G	1G	1G
Maximum linkage speed	100m/min	100m/min	100m/min	100m/min	100m/min	100m/min
positioning accuracy	±0.05mm	±0.05mm	±0.05mm	±0.05mm	±0.05mm	±0.05mm
Repeatability	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm

Product Description
CNC laser controller
Advanced CNC fiber laser cutting machine controller adopts system, easy to maintain, and has the versatility of anti-collision cutting and residual cutting.
Marking software
CypNest is a nesting software specially designed for the CypCut/HypCut photo laser cutting system. It integrates advanced functions such as drawing modification, rapid layout, tool path generation, and analysis reports to meet your production needs.
It equipped with intelligent CNC cutting operating system at the forefront of the industry at Domestic and International, it makes man-machine interaction, high stability, fast dynamic response, high positioning speed.

Wireless controller

1. Button life: 400,000-500,000 times

2. Wireless communication distance: 40 meters in open environment

3. Operating temperature: -25° to 70°

4. Anti-fall height: 1.5m

5. Receiver port: USB2.0

6. USB double-layer shielded cable

7. USB communication transmission distance: ≤5 m

Hollow work bed
The hollow structure design of the fuselage, excellent dust removal and heat dissipation system can effectively reduce the impact of cutting heat, ensure the accuracy of the fuselage, and increase the service life.
Packaging & Shipping
Cut sample
Company Profile
Xuzhou RITMAN Equipment Co., Ltd. is an intelligent equipment company under the Metavast group(Short name "RITMAN Intelligent ", English name"RITMAN"). RITMAN with the mission of "intelligent, digital, and trouble-free production", the company is a national high-tech enterprise and National-Level SRDI "Little Giant" Enterprise. Relying on strong R&D and production strength, the company focuses on the sales and service of laser cutting equipment. The main products include: laser plate cutting machine, laser tube cutting machine, large format customized laser cutting machine, laser plate & tube integrated machine, sheet coil laser cutting machine, 3D laser cutting machine, handheld laser welding machine, automated laser welding equipment, robot laser welding machine and other equipment. We are willing to work with our partners for mutual benefit and win-win situation!
Certifications
FAQ
1. What factors should be considered when choosing a laser cutting machine?
When choosing a laser cutter, consider factors such as the type of material being cut, required accuracy, speed, production cost and machine energy efficiency.
2. Is the laser cutting machine safe to use?
Although laser cutters are generally safe to use when proper safety procedures are followed, they can also cause hazards such as burns, eye injuries, and exposure to fumes. Using proper safety equipment and training is crucial.
3. How efficient is the fiber laser cutting machine compared to other types of laser cutting machines?
Fiber laser cutting machines are known for their high efficiency, especially when cutting thin materials. Fiber laser cutting machines also save significant energy compared to other types of laser cutting machines.
4. What are the advancements in laser cutting machine technology?
Advances in laser cutting machine technology include improvements in accuracy and cutting speed, improvements in energy efficiency, the development of machines capable of cutting thicker materials, and the integration of smart software for increased levels of automation and control.
