Cheap 2 Ton 3 Ton Mini Excavator Price CE Approved Excavator Machine Mini Excavator for Sale Small Construction Machinery Farm Mini Excavator

Product Description

Product Description

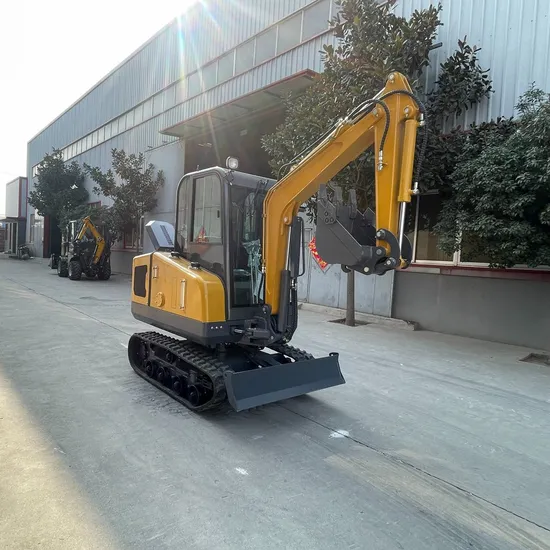

The 2 T model mini excavator is a compact and agile machine that packs a punch in terms of performance and versatility. With its precise controls and efficient design, it excels in various applications, from digging trenches and foundations to landscaping and demolition work. Despite its small size, the 1.5T model offers an impressive digging depth and reach, allowing it to navigate tight spaces and access hard-to-reach areas with ease. Equipped with a reliable engine, it delivers ample power and excellent fuel efficiency, making it suitable for both small-scale residential projects and larger commercial ventures. The 1.5T mini excavator is designed with operator comfort and safety in mind, featuring ergonomic controls, excellent visibility, and advanced safety features. Whether you're a contractor, landscaper, or homeowner, the 1.5T model mini excavator is a reliable and efficient choice for tackling a wide range of excavation tasks.

Detailed Photos
Excavators with compact dimensions can easily drive through narrow passages and doors.
Retractable undercarriage and dozer blade allow the excavators to be configured for excellent working stability
and optimum performance.
The excavator's powerful engine and perfectly matched hydraulic system provide efficient, economical, and reliable
performance for the toughest jobs.
The mini excavator operator area is spacious and well-laid out, providing comfort and ease of operation.
Applications
Product Parameters

Model		Unit	JM20 Off-road	JM20 without tail	JM22 Cross Country	JM22 Kubota	JM25 Off-road	JM25 Kubota	JM25 without tail
Performance Parameters
Operating weight		kg	1950	1950	1950	1,950	2200	2200	2200
Canopy/Cabin Awning/Driver's Cab			Canopy	Canopy	Canopy	Canopy	Cabin	Cabin	Cabin
Bucket	Capacity	m3	0.06	0.06	0.06	0.06	0.06	0.06	0.06
	Width	mm	400	400	400	400	400	400	400
	Max. digging force	kN	12	12	12	12	12	12	12
Arm digging force		kN	5	5	5	5	5	5	5
Engine	Brand/Model		Laidong LL385	Laidong LL385	Laidong LL385	KUBOTA 1703	Laidong LL385	KUBOTA 1703	Laidong LL385
	Rated power/speed	kW/rpm	22.1KW/2200RPM	22.1KW/2200RPM	22.1KW/2200RPM	18.2KW/2200rpm	22.1KW/2200RPM	18.2KW/2200rpm	22.1KW/2200RPM
	Displacement	lt	1.617	1.617	1.617	1.7	1.617	1.7	1.617
Main Pump	Brand		Walking in Tianjin	Walking in Tianjin	Walking in Tianjin	Walking in Tianjin	Walking in Tianjin	Walking in Tianjin	Walking in Tianjin
	Pump type		12/12 gear pump	12/12/04 Gear Pump	12/12 gear pump	12/12/04 Gear Pump	12/12 gear pump	12/12/04 Gear Pump	12/12 gear pump
	Flow rate	lt/min	24/24	24/24	24/24	24/24	24/24	24/24	24/24
Motors	Swing motor	cc	Liton 400	Liton 400	Liton 400	Liton 400CC	Liton 400	Liton 400	Liton 400
	Traveling motor	cc	200	200	200	200	200	200	200
Running speed (high/low)		km/h	2.8	2.8	2.8	2.8	2.8	2.8	2.8
Max. traction		kN	12	12	12	12	12	12	12
Ground pressure		kPa	23	23	23	23	twenty four	24	23
Gradeability		°	30	30	30	30	30	30	30
Fuel tank capacity		lt	30	45	30	30	36	36	30
Hydraulic oil tank capacity		lt	30	30	30	30	40	40	30
Boom deflection (left/right)		°	Left 58 Right 31	Left 58 Right 31	Left 58 Right 31	Left 58 Right 31	Left 58 Right 31	Left 58 Right 31	Left 58 Right 31
Slewing speed		r/min	10	10	10	10	10	10	10
Swing radius (minimum)		mm	2100	2100	2100	2,100	2100	2100	2100
Scope of Work
Max. digging heightMaximum digging height		mm	3200	3200	3200	3,200	3200	3200	3200
Max. dumping heightMaximum dumping height		mm	2200	2200	2200	2,200	2200	2200	2200
Max. digging depth		mm	2000	2000	2000	2,000	2000	2000	2000
Max. vertical digging depth		mm	2000	2000	2000	2,000	2000	2000	2000
Max. digging radius		mm	3800	3600	3800	3,800	3800	3800	3800
Dozer blade (Length*Width)		mm	1300*300	1300*300	1300*300	1300*300	1300*300	1300*300	1300*300
Max. lift height of the dozer blade		mm	210	210	210	210	210	210	210
Max. digging depth of the dozer blade		mm	150	150	150	150	150	150	150
Outline Dimensions
Overall Dimension (LxWxH)		mm	3300X1300X2300	3100X1300X2350	3300X1300X2300	3300X1300X2300	3,400x1300x2400	3,400x1300x2400	3300X1300X2400
Total track length		mm	1890	1890	1890	1,890	1890	1890	1890
Wheel tread		mm	1040	1040	1040	1040	1040	1040	1040
Platform tail slewing radius Platform tail slewing radius		mm	1150	950	1150	1150	1270	1270	1150
Platform ground clearance		mm	810	900	810	810	810	810	810
Chassis ground clearance		mm	260	260	260	260	260	260	240
Chassis width		mm	1300	1300	1300	1300	1300	1300	1300
Track width		mm	245	245	245	245	245	245	23
Track height		mm	490	490	490	490	490	490	450

Company Profile

Packaging & Shipping

FAQ
Q:How to guarantee the quality problem?
A:We have a professional quality inspection department, on-site inspection of the production process, layer upon layer of strict control and inspection of products before delivery, absolutely eliminate defective products.
Q:Why choose us?
A:In this industry, we have a better service and quality management system, I believe you will choose professional, and the same quality to provide you with a better price of us.
Q: How long is your delivery time?
A:In the case of stock, it is usually 2-5 days. Others calculate the time according to the quantity of your order.
Q:How do I receive the goods?
A:We have professional transport agents,which can deliver goods to various ports, FOB, CIF, DHL, Federal Express, etc.Please provide detailed address, we can also provide door-to-door service for you.
Q:How do I pay?
A: We accept 30% T/T in advance , balance before shippment. If you have other needs, you can also contact us.
