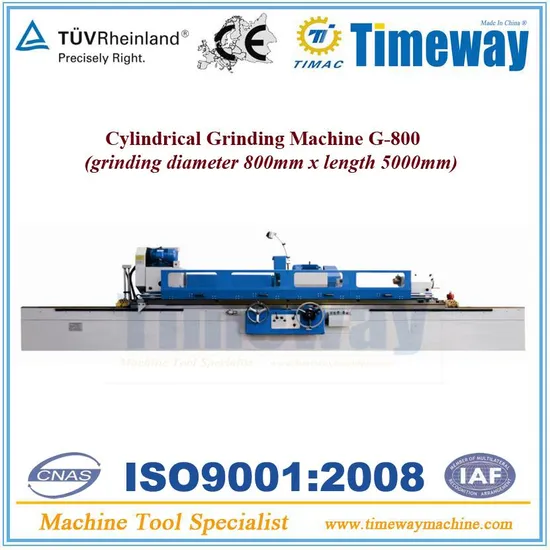

G-800 Large Sized Cylindrical Grinding Machine for External Grinding

Product Description

Large OD Cylindrical Grinding Machine
(Model: G-800 x 3000/4000/5000 workpiece length)
Features:
* The wheel head cross feed is driven by hydraulic, which realizes automatic periodical and rapid feed. It can also do rough and fine feed through hand wheel.
* The worktable and wheel head guide way adopt hydrostatic lubrication, its movement on low speed is smooth.
* The spindle is supported by hydrodynamic bearings of high rigidity, ensuring the high rotary accuracy and perfect rigidity.
* The workhead adopts inventer motor to realize variable speed changing.

Specification		Unit	G-630	G-800
* General capacity
Distance between centers		mm	2000, 3000, 4000, 5000	3000, 4000, 5000
Center height		mm	370	500
Dia. Ground (O.D)		mm	30-630	50-800
Max. length ground (O.D)		mm	2000, 3000, 4000, 5000	3000, 4000, 5000
Max. weight of workpiece		kg	3000	3000
* Work head
Center taper (MT)		MT	(metric) 80#	(metric) 80#
Spindle speed		r/min	50HZ:10-100 stepless	50HZ:10-100 stepless
* Wheel head
Wheel spindle speed		r/min	870	870
Wheel head rapid travel		mm	100	100
Max. travel		mm	475	550
Hand feed per.rev		mm	rough:4, fine:0.5	rough:4, fine:0.5
Hand feed per.gra		mm	rough:0.02, fine: 0.0025	rough:0.02, fine:0.0025
Wheel size (ODXWXID)		mm	750x75x305	900x75x305
Peripheral velocity		m/s	35	35
* Table
Hand feed per.rev		mm	5	5
Max.swiveling angle of table	Clockwise	°	2° (2000), 1° (3000, 4000, 5000)	1° (3000, 4000, 5000)
	Anticlockwise	°	4°(2000), 3° (3000), 2° (4000), 1.5° (5000)	3° (3000), 2° (4000), 1.5° (5000)
Table Longitudinal speed range		m/min	0.1-2.5	0.1-2.5
* Tailstock
Center taper (MT)		MT	(Metric) 80#	(Metric) 100#
Quill travel		mm	70	70
* Motor
Wheel head motor power		kw	22	22
Work head motor power		kw	15	15
* Machine
Gross weight		T	20(2000), 22 (3000), 24 (4000), 26 (5000)	30 (3000), 36 (4000), 41(5000)

*** Standard accessories: Coolant tank; Wheel periphery dresser base(without diamond pen); Flange and wheel extractor; Standard grinding wheel; Balancing arbor; Working lamp; Leveling wedge; Open steady rest; Internal grinding device for UG-200; Operational manual(English edition). ***Optional accessories: Balance stand, Magnetic separator apparatus, Paper filter apparatus, Center grinding attachment, Close steady rest, End wheel dresser, Radius (arc) wheel dresser.
