Zx-3D-208 Wire Bending Machine with Best Price
| US$16,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX-3D-208
Warranty
3 Year
Certification
GS, RoHS, ISO, CE
Wire Diameter Range
2-8mm
Wire Feeding Motor Power
3.1kw
Bending Motor Power
3.1kw
Weight
1500kg
Transport Package
Wooden Package
Trademark
greatcity
Origin
Hebei
Production Capacity
30 Set Per Month
Product Description

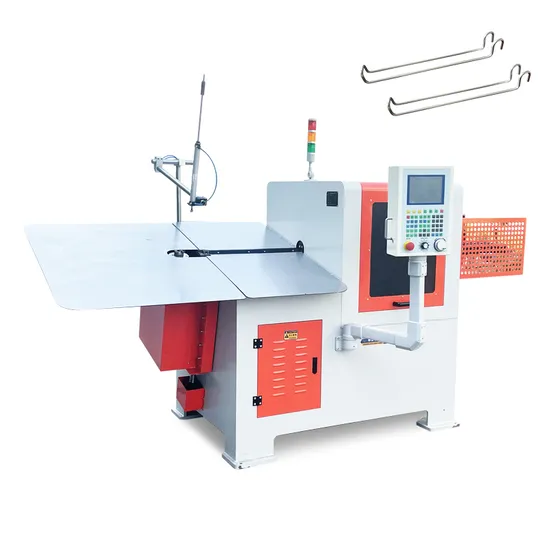

ZX-3D-208 Wire bending machine Product DescriptionZX-3D-208 Wire bending machine can make all 3d shapes workpieces.
The machine use CNC operation, the die is made of CR12MOV.
Product Parameters
ZX-3D-208 Wire bending machine
| ARCUCHI SERVO MOTOR+ CHNT ELECTRICAL EQUIPMENT | |||
| ZX-3D-208 | Specification | Qty | Note |
| Wire diameter range | 2-8mm | -- | Stainless steel and high carbon steel are hard wires. Iron wire and below Q235 grade are soft wires. |
| Matching cutters | 2-8mm universal | 6 sets | CR12MOV |
| Servo motor | ARCUCHI | 4 sets | ARCUCHI (overload protection safety alarm) |
| Wire feeding motor | 3.1kw | 1 set | ARCUCHI |
| Bending motor | 3.1kw | 1 set | ARCUCHI (bending and cutter motor integrated) |
| wire transfer motor | 3.0kw | 1 set | ARCUCHI |
| Lifting platform motor power | 1.5kw | 1 set | ARCUCHI |
| Control system | ARCUCHI | 1 set | ARCUCHI 3-4 axis controller |
| Pneumatic components | Air TAC | Several | Taiwan |
| Electrical components | Zhengtai | Several | China |
| Controller | Mingwei | 1 set | Taiwan |
| Bearing | NSK | Several | Japan |
| Sensor | Bidok | Several | China |
| Feeding wheels | 2sets as a set | 8 pcs | CR12MOV |
| Equipment net weight | 1.5T | Dimension of machine | 3.5*1.2*1.5M |
| Equipment with package weight | 1.6T | Dimension of package | 2.4*1.25*1.65M |
Detailed Photos
