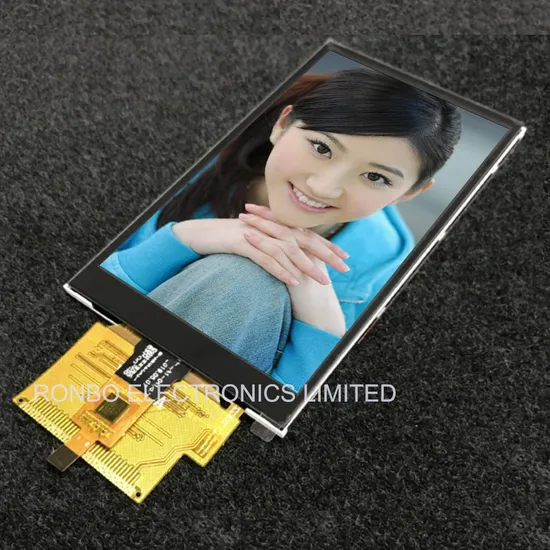

Driver IC Nt35510 4.3 Inch Resolution 480 X 800 Capacitive Touch TFT Screen

Product Description

Driver IC NT35510 4.3 inch Resolution 480 x 800 Capacitive Touch TFT Screen

Product Specification:
CTP structure explanation:
* P+G=PET+Glass (cover lens is PET and touch sensor is glass).
* G+G=Glass+Glass (cover lens is glass and touch sensor is glass).
* G+F/F=Glass+Film+Film (cover lens is glass and touch sensor is film+film).
* CG= Cover Glass, OD= Outside Dimension, VA= Viewing Area.
LCD and CTP Specification:
* It is a TFT LCD Display bonding with Capacitive Touch Screen.
* Backlight with different brightness is customized according to your request.
* It is Standard TFT LCD Module and Capacitive Touch Screen.
* It can be customized for LCD and Touch screen.
* Experienced Team for Your Custom Solution.
* RoHS compliant.

Main Specification	Model NO.:	RB043W37N01A-GG02
	Screen Size:	4.3"
	Display type	TN
	Resolution:	480*800
	Viewing direction:	12 O'clock
	Module size(W*H*T):	61.56*104.65*4.1mm
	Active area (W*H):	56.16*93.6mm
	Brightness:	250cd/m²
	Operating Temperature:	-20 ~ +70ºC
	Storage Temperature:	-30 ~ +80ºC
LCD Specification	Controller:	--
	Backlight:	8S1P=8 WLED If=20mA, Vf =24.8V
	Contrast	500
	Interface:	MCU 16bit
	Pin NO:	37Pin
	Pin pitch	0.8mm
	Connecting type	FPC Soldering Type
CTP Specification	Touch type	Multi-touch capacitive touch panel
	Structure:	G+F
	Surface Treatment:	Customized
	Sensor/CG Thickness:	0.5/0.7mm
	Total Thickness:	1.2mm (don't including Double Tape)
	Controller:	GT9147 or equivalent
	Touch Action Force:	30~60g
	Operating Voltage::	2.8V~3.3V
	Transmittance:	≥86%
	Surface Hardness:	≥6H
	Interface:	IIC
	Pin NO:	8Pin
	Pin pitch	0.5mm
	Connecting type	FPC Connector
	Operating system support:	Linux, Android, Windows

Custom Projected Capacitive Touch Screen:
Our capacitive touch panel design can be suitable for housing design from the customers to cover their lens or replace the physical buttons on its original module. we are also capable of doing the customized shape needed to suit for customer's mechanical design. With the assistance of the simulation software, equipment with high accuracy and simplifying assembly process, we are capable of making the sample in shorter period and with lower development charge.

	Lens's Features > Shape: Irregular and hole > Color: Silk printing, Logo > Glass brand: AGC, Corning, CSG, ETC > Treatments: AG, AR, AF, Anti-explosion > Thickness: 0.55mm, 0.7mm,1.0mm, 1.1mm, 1.8mm, 2.0mm, 3.0mm, 4.0mm
	Sensor Features > Sensor material: Glass, Film,Film + Film > Thickness:0.125mm,0.4mm, 0.55mm, 0.7mm, 1.1mm > FPC: Shape design optional > IC: Focaltech, Goodix, Cypress, EETI > Interface: IIC, USB, RS232, SPI
	Assembly > Optical Bonding with OCA > Double faced adhesive tape

Packaging & Shipping & Delivery
Packaging Details:
All the products are packed in right way to keep it safe.
For small sizes of products we use tray + carton,
For bigger sizes we use foam slot + carton.
we also design packages according to customers' requirements
Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
For large quantity orders: we ship by buyer's cargo agent in China,
we can also ship by air or sea transportation by our cargo agent.
Delivery Details:
Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
Our Advantage:

Rich experience	Good knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client
Advanced Equipment	Full automatic FPC&IC bonding machine, film attaching machine, CNC machine, polish machine advance production equipment ensure product quality
Quality Assurance	Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment
Fast response	Quickly realize your customized ideas, and have a sample ready in short time
Low MOQ	Depends on product
Stable supply	1~10 years supply period
Extensive range	Providing complete solution from Mono to Color LCD module, Optical bonding between display to cover glass as well as cover glass to touch screen
Large production capacity	Operation capacity 2KK monthly
Quality guarantee	RoHS compliant
Management	ISO 9001:2008, ISO 14001:2004

Product Line:
☆ Clean Room class 10k@0.8um, Pressurec 0.8kgf
☆ Antistatic floor, resistance : 1x10 ohm to 1x10 ohm
☆ COG production lines: 4 .
☆ Backlight production lines: 2 .
☆ Existing machine capacity will be 1KK per month.
Quality Policy:
All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2008 management system.
Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment
Certification:
FAQ:
Q: How can I get some samples?
A: We don't provide free one, but we can have a discount when you reorder according to different quantity, and you will win at least 3% discount.
Q: What is the MOQ?
A: It depends on different products. Please keep in touch with sales to confirm the MOQ.
Q: How do you control quality?
A: All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2008, ISO 14001:2004 management system.
Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment0*480 CapacitouScreenCDsplay
Q: Does your product have any warranty?
A: Yes, we offer 12 months warranty for our products.
Q: What's your payment method?
A: Payment: T/T, Paypal, Western Union, etc.
For samples: payment in advance.
For mass production: 30% deposit and 70% balance before shipment.
Q: Do you offer custom solution?
A: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements.
