CE Certificated Hydraulic Stone Splitting/Cutting Machine for Making Natural Face Stones

Product Description

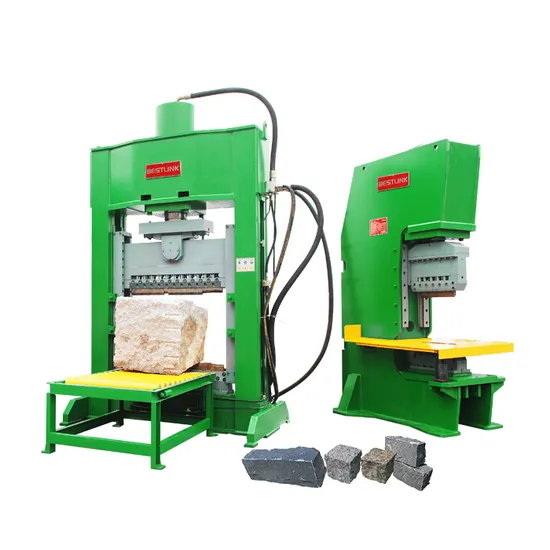

Bestlink hydraulic stone splitting machine has a variety of models, with bridge or open frame, specially for splitting every type of nature and artificial stone from any size of rough blocks: Mosaics and cubes of paving, rusticated ashlars of walls,kerbstones,rectangular tiles with split edges for paving and coverings,binders,small strip of slabs, steps and all the operations of blocks' splitting of big size and so on. All the machines are modular and can be integrated also in a second phase, in complete split plants, in accordance to the effective necessity of the customer.

Models and specifications:

Style	Model	Max splitting	Splitting
		width×height	pressure
C-font style	BRT20T	160×180mm	20ton
	BRT40T	240×320mm	40ton
	BRT70T	400×350mm	70ton
	BRT120T	500×450mm	120ton
	BRT160T	500×550mm	160ton
Bridge style	BRT20T	600×150mm	20ton
	BRT50T	600×300mm	50ton
	BRT800T	800×280mm	80ton
	BRT320T	1200×800mm	320ton

BRT50T-MF & BRT100T-MF
The machine is used to split concrete block and saw face natural stone; it is equipped with four blades to ensure a perfect split every time on the four sides of the product.

Model		BRT50T-MF 400*200	BRT100T-MF 600*300
Max.splitting width	mm	400	600
Max.splitting height	mm	200	300
Max.splitting power	ton	50	100
Electric power	kw	7.5	11
Main machine dimension (L*W*H)	mm	1145*1000*2030	1510*1100*2370
Machine weight	kg	2000	2500
Conveyor dimension(L*W*H)	mm	1400*750*700	/

Conveyer Systems can be situated at the front or back of the splitting machine to facilitate the movement of irregular and heavy stones. Thanks to this application it's possible to have a continued input of semi manufactured products, which will give an increase of work productivity.
