Industrial CNC Plate Drilling System for H Beam Applications

Product Description

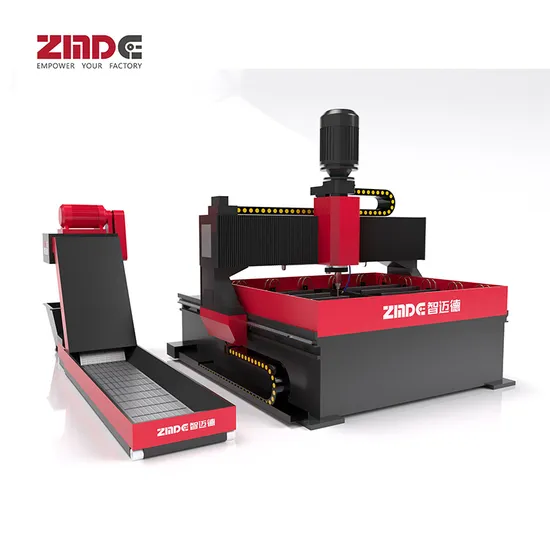

ZMDE Industrial Grade CNC Plate Drilling System CNC H Box Beam Drilling Machine

>Highly Cost-Effective Equipment <
1. Constructed from premium, durable materials ensuring a low failure rate and significantly reducing maintenance costs. The ball screw, linear guide vice, hydraulic parts, electrical components, servo motor, and frequency converter all come from reputed industry brands;
2. CRT display with automated chip removal, eliminating the need for manual cleaning and saving valuable time;
3. Boasting high precision, the equipment guarantees a high qualification rate of workpieces, thus minimizing the cost of consumables.
>Simple Operation, High Productivity <
1. User-friendly human-machine interface that is clear and visual, capable of generating automatic machining programs;
2. Accurate positioning is ensured through control by CNC and PLC systems;
3. Workpieces are clamped by hydraulic clamps, while the operator controls them effortlessly via a foot switch;
4. Featuring 12 fast hydraulic clamps strategically distributed around the table, allowing four groups of workpieces to be clamped simultaneously;
5. Small workpieces can be easily clamped at the four corners of the working table, significantly reducing production preparation time and enhancing efficiency;
6. Clamping small workpieces at the table's corners shortens production preparation periods and boosts production efficiency.
> Guaranteed Quality, Wide Range of Applications <
1. Key components such as the gantry, column, and table are made from robust materials, with the main machine weighing up to 6300kg;
2. Versatile across various industries, making it essential for plate processing;
3. Capable of handling a broad range of drilling diameters, from 12mm to 50mm.
> Suitable for Various Production Scenarios <
1. Ideal for continuous production of multiple batches of a single flat-type workpiece;
2. Perfect for small batch production of diverse workpieces, capable of processing plates in different shapes such as rectangular, round flange, polygonal, and more. Also, can handle two or four different specifications of plates simultaneously;
3. Efficient production of multiple thinner sheets stacked up to a maximum of 100mm drilled holes;
4. Automatically processes start and end points through upper computer software, handling both through holes and blind holes, step holes, and hole end chamfering.
> Highly Automated Production Process <
1. Integrated line board with a high degree of automation, ensuring automatic positioning according to the drilling program;
2. Automatically adjusts the optimal feeding volume based on different hole diameters;
3. Capable of automatic and continuous processing of large hole diameters and one-time processing and forming;
4. Equipped with an automatic chip removal function for seamless operations.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg

Company Profile
Founded in 2013, ZMDE Co., Ltd. stands as a pioneering high-tech enterprise specializing in the research, development, manufacturing, sales, and service of intelligent assembly building equipment. Recognized as one of the national specialization, specialty, and new 'small giants' enterprises, ZMDE excels in the core industries of steel structure assembly building intelligent industrial mother machines and industry IoT solutions.coupled with advanced intelligent control systems.
Nestled in the Lingang New Area, Pudong New District, Shanghai, our headquarters spans an impressive 32,000 square meters. It houses the Research Institute of Artificial Intelligence for Assembled Buildings, focusing on high-end core technologies in Artificial Intelligence for Assembled Buildings, Intelligent Buildings, and the Industrial Internet of Things (IoT). This site primarily manages and spearheads our cutting-edge research and development initiatives.
Our Shandong base, situated in Weicheng District, Weifang City, is dedicated to the research, development, and production of intelligent industrial mother machines for steel beams and walls in assembled buildings. This location serves as a hub for pioneering advancements in intelligent industrial machinery.ensuring the seamless integration of intelligent systems in construction projects.

FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.

2.Q: What are the payment terms?
A: L/C; T/T.

3.Q: How long is the delivery time?
A: 30 Days.

4.Q:How long is the warranty period?
A: 1 Year.(Original Manufacturers. equipment parts can be achieved lifelong maintenance)
