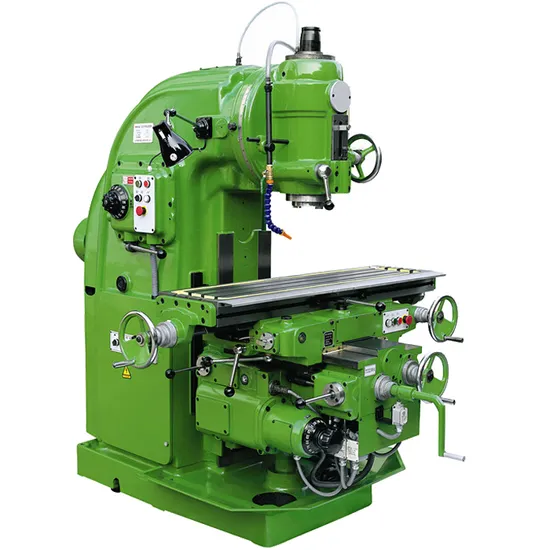

X5040 Metal Swivel Head Knee Type Universal Milling Machine
Basic Info.
Model NO.
X5040
Type
Knee-and-Column Milling Machine
Object
Tool
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Name
Heavy Duty Unviersal Milling Machine
Table Size
1700X400mm
Table Travel
900X315X385mm
X Axis Rapid Feed
2300mm/Min
Y Axis Rapid Feed
1540mm/Min
Z Axis Rapid Feed
770mm/Min
Spindle Taper
ISO50
Mill Head Swivel
45degree
Distance Spindle to Table
115mm
Spindle Quill Stroke
85mm
Spindle Speed
30-1500rpm
Spindle Motor
11
T Slot
3X18mm
Table Load
800kg
Transport Package
Ply Wooden Case
Origin
China
HS Code
84595900
Production Capacity
80sets/Month
Product Description
swivel head knee type universal milling machine X5040heavy duty vertical univesal milling machine feature:
1 Swallow tail guide ways with high accuracy.
2. Hardened and ground table surface, guideways with longer life.
3. Automatic feeds on x,y axes, motorized lifting and lowering of table on z axis
4. Head spindle swivel angle +/-45 degrees;
5. with enforce lubricating on X,Y,Z-axis and guide way with less ware out for the machine
5.Knee part with 3 supporter for Heavy load on the worktable.
6. Table Longitudinal and cross auto-feed with interlock system to avoide the error operation.
7. Spindle with ISO50, main motor with 11kw power ensuing the heavy-duty cutting stability.
knee type vertical univesal milling machine specifications:
| Specification | Unit | X5040 |
| Table size | mm | 400X1700 |
| T-slots(NO./Width/Pitch) | 3/18/90 | |
| Longitudinal travel(manual/auto) | mm | 900/880 |
| Cross travel(manual/auto) | mm | 315/300 |
| Vertical travel(manual/auto) | mm | 385/365 |
| Rapid feed speed(X/Y/Z) | mm/min | 2300/1540/770 |
| Max. load | kg | 800 |
| Table feed range(X/Y/Z) | mm/min | 23.5-1180/15-786/8-394 |
| Spindle speed range | r/min | 30-1500 |
| Spindle speed step | steps | 18steps |
| Stroke of spindle quill | mm | 85 |
| Max.swivel angle of vertical milling head | ±45° | |
| Distance between spindle nose and table surface | mm | 115/500 |
| Power of spindle motor | kw | 11 |
| Overall dimensions(L×W×H) | mm | 2556×2159×2258 |
| Net weight | kg | 4250/4350 |
heavy duty vertical univesal milling machine standard accessories:
| name | Specification Model | Qty |
| Drawbar | 1set | |
| ISO50 Cutter arbor Cutter arbor | φ40 | 1 piece |
| 7:24 The middle set of | 7:24 ISO50/MS4 | 1piece |
| Oil gun | 1 piece | |
| Inner hexagon spanner | 6 | 1 piece |
| Double-ended wrench | 17x19 | 1 piece |
| Double-ended wrench | 22x24 | 1 piece |
| Double-ended wrench | 27x30 | 1 piece |
| Double-ended wrench | 32x36 | 1 piece |
| Single head spanner | 14 | 1 piece |
| Single head spanner | 50 | 1 piece |
| Inner hexagonal wrench | 5 | 1 piece |
| Inner hexagonal wrench | 8 | 1 piece |
| Inner hexagonal wrench | 10 | 1 piece |
heavy duty vertical univesal milling machine optional accessories:
| Name | Specification Model | Remark |
| Universal dividing head | 125A | Include three-jaw chuck |
| Universal dividing head | 160 | Include three-jaw chuck |
| Swivel table | φ320 | Manual |
| Indexable carbide mill tool | φ63 | With shank |
| Indexable carbide mill tool | φ100 | No shank |
| Indexable carbide mill tool | φ160 | No shank |
| Sizing block | 240x120 | 6 pieces/set |
| Clamping kit | ||
| Milling chucks | 15pcs |
heavy duty vertical univesal milling machine more photos:
