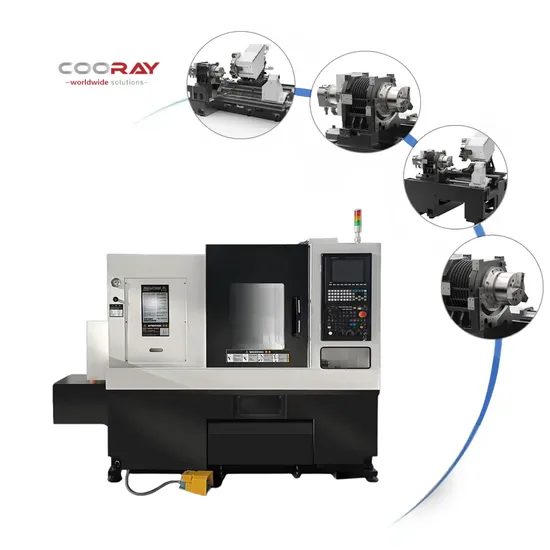

Cooray Crl200tc Milling Center CNC Turning Lathe Mazak Design

Product Description

Detailed Photos

Product Parameters

Processing scope and capacity	Maximum turning diameter	550mm
	maximum machining diameter	330/350mm
	Maximum processing length (one clamp one top)	520mm
travel stroke	X-axis travel	190mm
	Z-axis travel	580mm
	Tail seat shaft travel	440mm
main spindle	New generation motor output power (30min/continuous)	11/15KW
	Main shaft end form	JISA2-6
	Main shaft speed ★ 1	10-4500rpm
	chuck	8 inches (optional 10 inches)
	through hole diameter	62mm
turret	Tool capacity	8 / 12
	Tool division time	0.2 seconds/position
	Tool body size	25mm×25mm /20mm× 20mm
	Maximum boring tool diameter	40mm/ 32mm
	New generation motor power	1.1KW
Tailstock	Transmission form	Servo programmable
	Conical hole form	MT.NO.4
	New generation motor power	1.7 KW
Feed	X-axis fast forward speed	30000mm/min
	New generation motor power	2.4KW
	Z-axis fast forward speed	36000mm/min
	New generation motor power	2.4KW
Coolant passage	volume	150L
Else	Power source (continuous)	18KVA
	floor space	2318(L) × 1585(W)× 1770(H)
	Net weight of machine tool	4500Kg
	power requirement	3380V +10%~ -15%
	ambient temperature	0~40ºC
	Relative humidity of the environment	≤85%

Advantages
Packaging & Shipping
For LCL transportation (less than container load), it is recommended to use export standard fumigation-free wooden boxes, which are stronger and suitable for long-distance transportation.
For FCL transportation (full container load), wooden boxes are not required and can be loaded directly at the factory, and the maximum number of machines can be loaded to reduce costs.
Company Profile
Foshan Kurui Machinery Co., Ltd. was established in 2018 and is located in Guangdong Province, which is known as the world's factory. It is a technology-based company integrating design, production and trade. While owning the COORAY brand, it also provides OEM services for well-known manufacturers at home and abroad.
The company's main products are CNC machine tools and spare parts. With the business philosophy of breaking the foreign technology blockade and developing high-end machine tools and equipment in China, it has absorbed high-end brands from all over the world such as Mazak, Tsugami, Takizawa, Okuma, DMG... has engineers and design and production personnel, with a total number of more than 300 employees, including 30 design team members, 200 production team members, and 30 after-sales and sales team members.
In the first year of its establishment, the company successfully developed the same CNC lathe as Mazak, and independently developed and produced key components such as the bed, turret, and spindle, reaching the same level as Mazak in terms of rigidity, precision, and stability. Once this lathe was launched, it received good market feedback. Later, the company successively developed a series of products such as VDI turret tool holders, anti-vibration tool bar blades, high-precision spindle chuck cylinders, etc., all of which have achieved great success.
Since its establishment, it has applied for more than 100 patents. At the same time, thanks to the strong support of the local government in taxation and funds, the company has continued to invest in factory sites and production equipment. The annual output value has now exceeded 100 million. It has more than eight production bases and cooperative factories across the country, and continues to output high-quality mechanical products to the market, making outstanding contributions to the development of China's machine tool industry. While meeting the needs of the Chinese market, the company actively expands overseas markets.
With the reliability and high quality of its products, it has received good market feedback in Europe, America, the Middle East, Southeast Asia, etc. Foshan Kurui Machinery Co., Ltd. will continue to work hard to conquer the market with high-quality products and realize the grand vision of making the world fall in love with Made in China.
Service for Machining of multiple machined surfaces can be realized CNC milling machine 3 axis for Russia
1. Reply in 24 hours.
2. Customized cnc lathe machine power and voltage.
3. Every cNc lathe machine will be tested before the delivery.
4. Delivery on time and excellent after-sales service.
5. High quality, reliable price.
Exhibition and Convention
Maintain good cooperative relationships with major domestic and foreign brand manufacturers for mutual benefit and win-win outcomes.
Certifications
FAQ
Q1. How to choose the most suitable machine?
A: Please tell me your specifications and we can choose the best model for you, or you can choose the exact model. You can also send us the product drawings and we will choose the most suitable machine for you.
Q2. What are the main products of your company?
A: We specialize in manufacturing various machines such as CNC Lathes, CNC MillingMachines, Vertical Machining Centers, Lathes, 5-Axis Machining Centers, Horizontal Machining Centers, etc.
Q3. Where is our factory located? How can I get there?
A: Our factory is located in Foshan City, Guangdong Province, China 528300. You are warmly welcome to visit us.
Q4. What is your trade terms?
A: FOB, CFR and CIF are all acceptable.
Q5. What are the payment terms?
A: TТ/T, 30% initial payment when ordering, 70% balance payment before shipment; Irrevocable L/C at sight.
Q6. What's the MOQ?
A: 1 set. If you order more, we will offer you a better price.
Q7. Technical support?
A: Technical response is available within 12 hours, while troubleshooting solutions are available within 48 hours.
Q8. Demonstration and testing?
A: A training center has been set up for customers and employees to study the operation of the machine. You are welcome to visit our factory for machine demonstration at any time. In addition, we can make demonstrations according to your equipment parts drawings.
