TIG/MIG/Mag/Paw/Saw Longitudinal/Circumferential/Straight/Circular/Ring/Girth/Circle Seam Automatic LPG Tank Water Heater Pipe Flange Welding Machine
| US$2,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZJ
Electric Current
as Required
Work Form
as Required
Type
as Required
Color
as Required
Customized Design
Available
Lead Time
10-30days
Warranty
One Year
Transport Package
Plywood Case
Specification
as required
Trademark
HY
Origin
Chengdu
Production Capacity
1000 Units/Year
Product Description

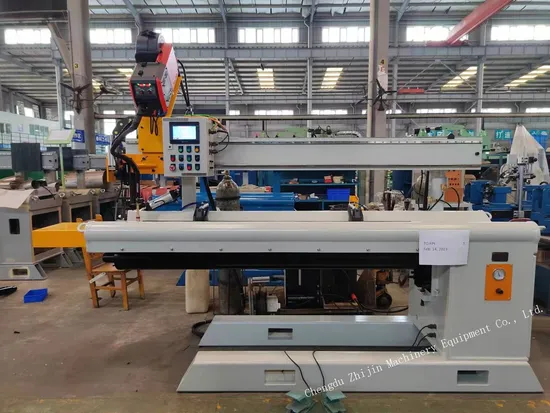

Longitudinal/circumferential Automatic seam welding machine
Universality:
1. Can be used for TIG/MIG/MAG/PAW/SAW welding applications.
2. Can be used to weld Metal Sheets/Pipes/Cones/Boxes.
3. Can be used with Oscillator, Seam Tracker, Wire Feeder and other Function parts
Models of Longitudinal Automatic seam welding machine
| Item | Unit | ZF-500 | ZF-1000 | ZF-1500 | ZF-2000 | ZF-2500 | ZF-3000 |
| Max. workpiece's length | mm | 500 | 1000 | 1500 | 2000 | 2500 | 3000 |
| Workpiece's diameter | mm | 80-750 | 115-700 | 155-700 | 185-700 | 220-700 | 250-700 |
| Workpiece's thickness | mm | 0.5-3.0 | 0.5-6.0 | ||||
| Torch stroke(pneumatic) | mm | 100 | |||||
| Torch adjustment | mm | Y:± 30mm; Z: ± 30 mm | |||||
| Power input | V | AC 1 Phase 220V(±10%) 50Hz | |||||
| Carriage travel speed | mm/min | 100 - 1800 | |||||
| Max. welding current | A | 500 | |||||
| Weight | Kg | 500 | 1200 | 1500 | 1800 | 2100 | 2400 |
| Package | CBM(m³) | 2.97 | 5.17 | 7.00 | 8.84 | 10.68 | 12.51 |
Options:Intergrated wire feeder,seam aligning device,different backing bars,backing bars cooling device,backing bar's gas shielding device,shielding cove
Models of Longitudinal Automatic seam welding machine
| Item | Unit | HTC-3C | HF-300W | HF-300WS | HF-300L | HF-300LY |
| Max. workpiece's length | mm | 500 | 1200 | - | ||
| Max. workpiece's weight | kg | 30 | 50 | 250 | ||
| Max. workpiece's diameter | mm | 350 | 550 | 600 | ||
| Chuck's working diameter | mm | 10 - 120 | 10 - 200 | - | ||
| Through-hole diameter | mm | 30 | 50 | - | ||
| Torch stroke(pneumatic) | mm | 100 | 150 | |||
| Tailstock stroke(pneumatic) | mm | - | 150 | - | - | |
| Headstock rotating speed | RPM | 1 - 10 | 0.6 - 6 | |||
| Headstock angle | ° | 0°, 30°, 45°, 60°, 90° | - | |||
| Torch adjustment | mm | X: ± 30 mm Y:± 30mm Z: ± 30 mm | ||||
| Max. welding current | A | 500 | ||||
| Power input | V | AC 1 Phase 220V(±10%) 50Hz | ||||
| Weight | kg | 310 | 380 | 400 | 300 | 350 |
| Package | CBM(m³) | 1.45 | 2.39 | 2.39 | 1.08 | 1.37 |
