Carter CT160-8c (15t) Multifunction Backhoe Crawler Heavy Duty Backhoe Excavators
| US$51,000.00-53,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CT135-8C
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.7m3
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Ground Pressure
42 Kpa
Power Output
84kw/2200rpm
Engine
4jj1X
Travel System
Kyb, Japan
Hydraulic System
Kpm, Japan
Main Control Valves
Kyb, Japan
Swing System
Kpm, Japan
Bucket Width
1020 mm
Max. Digging Height
8659mm
Max. Dumping Height
6200mm
Max. Digging Depth
5569mm
Max. Digging Distance
8387mm
Transport Package
Nude Packing
Specification
15.2 ton
Trademark
Carter
Origin
China
HS Code
8429521200
Production Capacity
1200set/Year
Product Description
Name:Carter CT160-8C ExcavatorAdvantage Points:
1. engine, In conformity with the EU II emission control regulations
2. Digital monitoring and control system GPS satellite position(optional)and remote diagnose system(optional)
3. Rubber pedrail(optional, or steel pedrail), no damage to the ground of road full opened engine hood and easy up-forward-lifted cab Cold&warm air conditioner(optional)
4. Guarantee for 3 yrs under normal use and maintenance.
8. Steel pedrail

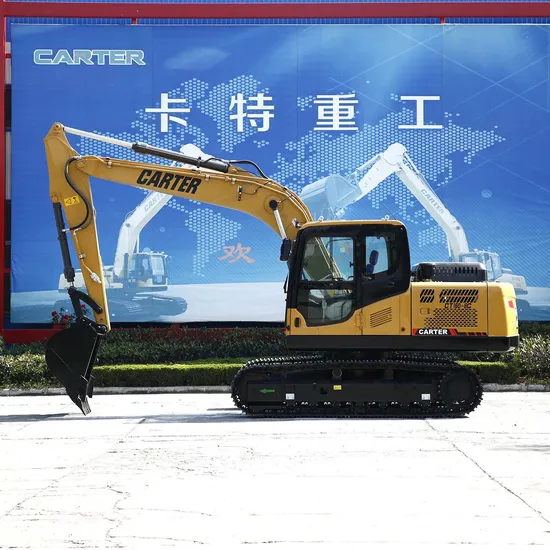

Products Pictures:
Specification:
| Engine | Travel System | ||||||||||
| Model | 4JJ1X | Travel motors | KYB, Japan; | ||||||||
| Type | Turbocharged, 4 stroke, Direct injection, water cooled, with air-air intercooler | Support roller quantities | 2×7 | ||||||||
| Carrier roller quantities | 2×2 | ||||||||||
| No. of cylinder | 4 | Travel shoes | 2X41 | ||||||||
| Bore and stroke | 95.4X104.9(mm) | Travel speed | 2.7/5.0(km/h) | ||||||||
| Displacement | 2.999L | Drawbar pulling force | 126kN | ||||||||
| Power output | 84kw/2200rpm | Gradeability | 70%(350) | ||||||||
| Max. torque | 375N.m/1800rpm | Track shoes thickness | 8mm | ||||||||
| Hydraulic System | Cab & Electrical System | ||||||||||
| Pump | KPM, Japan | Cab | Cab installed with silicon oil rubber, adjustable luxurious seat, cold and warm air-conditioning system plus flexible pilot control system | ||||||||
| Type | axial piston pump | ||||||||||
| Max. discharge flow | 2X110(L/min) | ||||||||||
| Max. discharge pressure | |||||||||||
| Boom, arm and bucket | 31.4/34.3 MPa | Voltage | 24V | ||||||||
| Travel circuit | 27 MPa | Batteries | 2X24V | ||||||||
| Swing circuit | 27 MPa | Battery capacity | 160Ah | ||||||||
| Control circuit | 3.9 MPa | Boom, Arm & Bucket | |||||||||
| Pilot control pump | Gear type | Boom cylinder | Ф105xФ70xS941-L1448 | ||||||||
| Main control valves | KYB, Japan | Arm cylinder | Ф115xФ80xS1135-L1650 | ||||||||
| Oil cooler | Air cooled type | Bucket cylinder | Ф100xФ70xS875- L1350 | ||||||||
| Swing System | Refilling Capacity & lubrication | ||||||||||
| Swing motor | KPM Japan | Fuel tank | 240 L | ||||||||
| Swing motor type | Axial-piston motor | Cooling system | 22 L | ||||||||
| Brake | Hydraulic oil released | Engine oil | 13 L | ||||||||
| Parking brake | Hydraulic disc brake | Hydraulic oil tank | 120 L Tank Oil Level | ||||||||
| Swing speed | 12.4 r/min | 165 L Hydraulic System | |||||||||
| Bucket | |||||||||||
| Type | Backhoe bucket | ||||||||||
| Bucket capacity | 0.70m3 (SAE) | ||||||||||
| Bucket capacity scope | 0.55-0.70 m3 | ||||||||||
| Number of bucket teeth | 5 | ||||||||||
| Bucket width | 1020 mm | ||||||||||
| Working Ranges | |||||||||||
| Boom length | 4600mm | ||||||||||
| A | Max. digging height | 8659mm | |||||||||
| B | Max. dumping height | 6200mm | |||||||||
| C | Max. digging depth | 5569mm | |||||||||
| D | Max. vertical digging depth | 5050mm | |||||||||
| F | Max. digging distance | 8387mm | |||||||||
| G | Max. digging reach at ground level | 8261mm | |||||||||
| H | Min swing radius of work equipment | 2509mm | |||||||||
| Digging Force (ISO6015) | |||||||||||
| Arm length | 2524mm | ||||||||||
| A | Bucket digging force | 99.7 KN | |||||||||
| B | Arm digging force | 73.8 KN | |||||||||
| Overall Dimensions | |||||||||||
| A | Overall length | 7723mm | I | Track grounding length | 2930mm | ||||||
| B | Ground contact length | 4073mm | J | Track length | 3630mm | ||||||
| C | Overall height(to top of boom) | 2740mm | K | Track gauge | 1995mm | ||||||
| D | Overall width | 2495mm | L | Track width | 2495mm | ||||||
| E | Overall height(to top of cab) | 2767mm | M | Track Shoe width | 500mm | ||||||
| F | Counter weight ground clearance | 948mm | O | Counter weight height | 1960mm | ||||||
| G | Min Ground clearance | 410mm | P | Revolving frame width | 2490mm | ||||||
| H | Tail swing radius | 2380mm | Q | Distance from swing center to tail | 2380mm | ||||||
| Operating Weight and Ground Pressure | |||||||||||
| Operating weight includes basic machine; | |||||||||||
| Operating weight | 15200 Kg | ||||||||||
| Ground pressure | 42 KPa | ||||||||||
