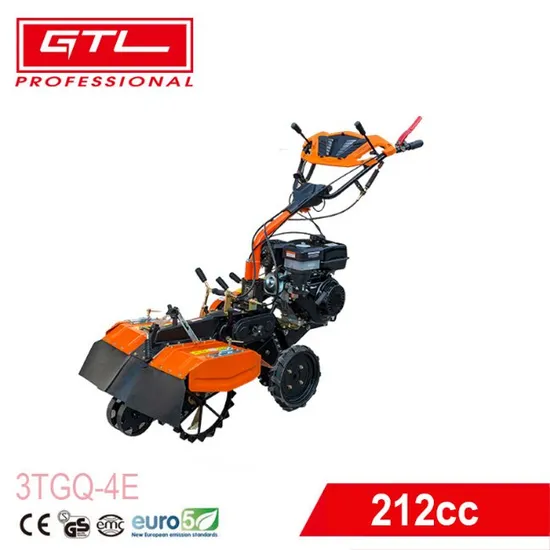

Agricultural Machinery Farm Cultivator 7.5HP 212cc Gasoline Powered Tiller
| US$480.00-515.00 | 50 Pieces (MOQ) |
Basic Info.
Model NO.
3TGQ-4E
Power Source
Gasoline
Operation
Arable Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Belt + Chain
Arbor Configuration
Horizontal Axis
Certification
CE, EMC,Euro-V
Color
Customized
Warranty
1 Year
Displacement
212cc
Engine Type
Single Cylinder,4-Stroke, Forced Air-Cooled
Fuel Tank Capacity
3.6 L
Starting System
Recoil
Tilling Ditch Width
250mm
Tilling Ditch Depth
>100mm
Maximum Power and Speed HP(Kw)Rpm
7.5(5.6)/1800
Transport Package
Carton Box
Trademark
GTL; OEM
Origin
China
HS Code
8432100000
Product Description
PRODUCT SPECIFICATIONS| Model No. | 3TGQ-4E |
| Engine model | 170F |
| Engine Type | Single Cylinder,4-Stroke, Forced Air-Cooled,gasoline |
| Displacement | 212 cc |
| Maximum power and speed hp(kw)rpm | 7.5(5.6)/1800 |
| Fuel Tank Capacity | 3.6 L |
| Starting System | Recoil |
| Handle bar adjustable range (Vertical) | 360° |
| Tilling ditch Width | 250 mm |
| Tilling ditch Depth | >100mm |
| Working box speed | 420-620 r/min |
| Shift Gear | (1,0,-1)*2 |
| Transmission | Belt + Chain |
| Tire | 3.5-12 |
| Blades | Ditching and Earth cultivating knife (2 pairs) |
| Certification | CE, EMC,EURO V |
PRODUCT PHOTOS
MAIN FEATURES
Main functions: rotary tillage , weeding, furrowing pre-planting
Scope of application: garden, greenhouse, sloping field, paddyfield etc.
1. 170F engine, with more strong power
2. Novel tillage method, rotary blades positive inversion on same axis, low handling strength, more effect of rotary tillage
3. Engine mounting position down,It is more easy for operation.
4. Increased rpm,it is more effective for ditching and ridging.
5. Use solid tire in this mechine,never bursted,never air leakage.It allows longer life time.
6. Can adjust the depth roller to meet different soil texture and diffrent terrain requirement.
