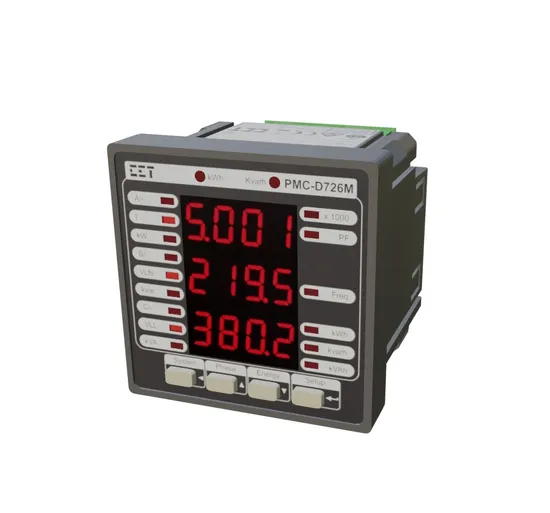

PMC-D726M Three-Phase Multifunction Power Energy Meter LED RS-485 Modbus RTU Pulse Output

Product Description

CET PMC-D726M DIN72 3 Phase LED Display RS-485 with Modbus RTU Digital Multifunction MeterThe PMC-D726M Digital Multifunction Meter is CET's latest offer for the low-cost digital power/energy metering market. Housed in an industry standard DIN form factor measuring 72mmx72mmx76.8mm, it is perfectly suited for industrial, commercial and utility metering applications. The PMC-D726M features quality construction, true RMS multifunction measurements and an LED display. Compliance with the IEC 62053-21 Class 1 kWh Accuracy Standard, it provides optimum Price to Value ratio and is a cost effective replacement for traditional analog instrumentation, capable of displaying 3-phase measurements at once. The PMC-D726M optionally provides Split-Core CT (SCCT) support for retrofit applications, two Digital Inputs for status monitoring, two Digital Outputs for control, or one 0/4-20mA Analog Output for interfacing with 3rd party SCADA system. The standard SOE Log records meter events such as power-off, setup and DI status changes in 1ms resolution. With a standard RS-485 port and Modbus RTU protocol support, the PMC-D726M becomes a vital component of an intelligent, multifunction monitoring solution for any Power and Energy Management systems.

Typical Application

• Analog meter replacement • Industrial, Commercial and Utility panel metering• Substation, Factory and Building Automation
• Sub-metering and Cost Allocation
• Ideal for retrofitting with the SCCT option

Feature Summary

Ordering Information

Dimensions

Technical Specifications

Company Profile

CET has approximately 300 R&D Engineers and a 8000 m2 R&D Center that is strategically located around some of China's Tier 1 Universities in Wuhan.
CET's Production facility is located in Shenzhen's Yantian District, approximately 30 minutes by car from the headquarters, employing about 200 Production workers. CET is fully certified for RoHS manufacturing with an annual production capacity of 600,000 units.
