57HS76-2004 NEMA 23 Electric Hybrid Stepper Motor 1.8 Degree 2 Phase Step Motor

Product Description

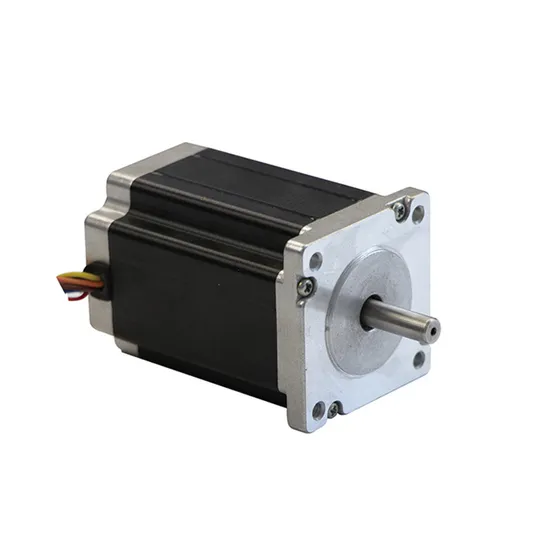

57HS76-2004 Nema 23 Hybrid Stepper Motor 2 Phase 1.8° Electric Step Motor
All models in the table are available
57HS76-2004 is a type of 1.8 square shape hybrid stepper motor. It combines features of both permanent magnet (PM) and variable reluctance (VR) stepper motors. The motor wire is made of pure copper. It has the characteristics of small step angle, large output torque, good dynamic performance and low noise. Due to different parameters, it has many models. If you want to know more, please contact with me, and I will provide the motor parameters, according to different motor matching related procedures.
Specification:

Item	Value
Model Number	57HS76-2004
Type	Hybrid
Phase	2
Step Angle	1.8°
Temperature Rise	80ºC Max
Ambient Temperature	-20ºC Max~+50ºC
Insulation Resistance	100M ΩMin., 500VDC
Dielectric strength	500VAC for 1 minute
Shaft Radial Play	0.02Max(450-load)
Shaft Axial Play	0.08Max(450-load)
Max Radial Force	75N (20mm from the flange)
Max Axial Force	15N

Application:
Stepper motors are widely used in various fields, especially in the field of mechanical automation, such as artificial intelligence robots, laser engraving machines, 3D printers and plotters ect. Our stepper motor models include Nema 8, Nema 11, Nema 14, Nema 16, Nema 17, Nema 23, Nema 24, Nema 34, Nema 42, Nema 52. If you want to know more, please contact me.

Packing Details: 1. Carton box with foam
2. Box can be customized as your requireme Delivery: We usually ready goods and stocks within 3-10 days after receiving the payment. However, the lead time may vary due to different product models and the quantities. If you want to know more, please contact me.
