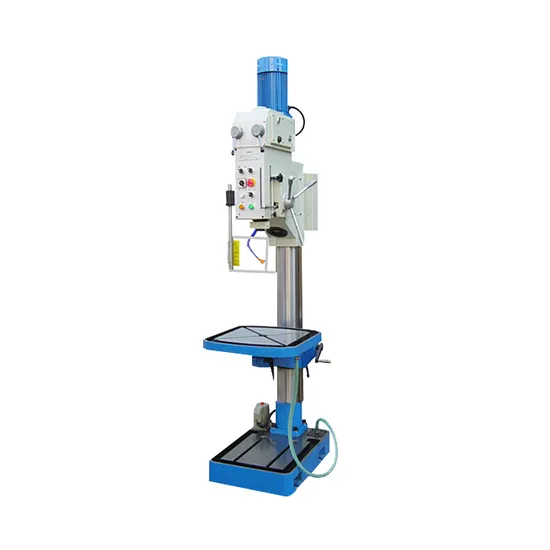

High-Performance Vertical Column Core Drilling Machines by Smac

Product Description

Product Description
Standard Features:
SO9001 certified
CE certificate issued by TUV
CE, UL approved main electrical components
Gear driven system (except Z5050)
Belt driven system (z5050)
Automatic feed and tapping (electromagetic clutch), realize auto feed and tapping by putting any button on the feed handle
Spindle speed stepless (variable speed for Z5050)
Overload and shortcut protections
Coolant system
Digital display of speed and drilling depth (Z5050, Z5050A)
Emergency stop
Drill guard with micro-swtich
Convenient loading and unloading tool device
Motor driven and manual lifting system of worktable (Z5050, Z5050A, Z5040)
Large processing range of worktable
New-designed and compact construction
Aluminum alloy crust motor
Spindle box could be moved up and down, and titled +45 (Z5032A)
Manual feed and tapping model Z5030, Z5032, Its specifications is the same as Z5030A, Z5032A respectively

MODEL		Z5050	Z5050A	Z5040	Z5035A	Z5032A	Z5030A
Max. Drilling Capacity		2" 50mm	2" 50mm	1.58" 40mm	1.38" 35mm	1.26" 32mm	1.18" 30mm
Max. Tapping Capacity		1.18" M30	1.18" M30	1.06" M27	0.95" M24	0.79" M20	0.79" M20
Max. Travel of Spindle		7.11" 180mm	9.49" 240mm	7.11" 180mm	7.9" 200mm	6.32" 160mm	5.34" 135mm
Distance from spindle axis to Column		14.23" 360mm	14.23" 360mm	14.23" 360mm	13.04" 330mm	13.83" 350mm	12.65" 320mm
Distance from spindle nose to worktable		18.4" 460mm	18.4" 460mm	18.4" 460mm	24.9" 630mm	33.6" 850mm	24.51" 620mm
Distance from spindle nose to base table		47.43" 1200mm	47.43" 1200mm	47.43" 1200mm	47.43" 1200mm	55.34" 1400mm	46.64" 1180mm
Max. travel of worktable		11.86" 300mm	18.97" 480mm	11.86" 300mm	20.55" 520mm	21.74" 550mm	21.74" 550mm
Swivel of worktable		+450	+450	+450	+450	+450	+450
Swivel of spindle box						+450
Spindle bore taper (Morse)		MT4	MT4	MT4	MT4	MT4	MT3 (MT4 ls special)
Spindle Speed rage		Stepless 48-1500	12 42-2050	12 42-2050	12 70-2600	12 72-2600	12 72-2600
Spindle feed range		4 0.003"-0.014" 0.08-0.35	4 0.003"-0.014" 0.08-0.35	4 0.004"-0.012" 0.1, 0.2, 0.3	3 0.004"-0.012" 0.1, 0.2, 0.3	3 0.004"-0.012" 0.1, 0.2, 0.3	3 0.004"-0.012" 0.1, 0.2, 0.3
Effective dimension of worktable		20"x15" 510 x 380mm	20"x15" 510 x 380mm	20"x15" 510 x 380mm	18"x15" 450 x 390mm	20"x18" 500 x 450mm	20"x18" 500 x 450mm
Effective dimension of base		17"x17.3" 450 x 440	17"x17.3" 450 x 440	17"x17.3" 450 x 440	16"x15.6" 405 x 395	14.6"x14.2" 370 x 360	16"x15.6" 405 x 395
Diameter of column		6.32" 160mm	6.32" 160mm	6.32" 160mm	5.53" 140mm	4.74" 120mm	4.74" 120mm
3-Phase AC motor (YD112M-4/2)	Power	3.2/4hp 2.4/3kw	2.9/3.7hp 2.2/2.8kw	2.9/3.7hp 2.2/2.8kw	2/2.9hp 1.5/2.2kw	1.3/2hp 1/1.5kw	1.3/2hp 1/1.5kw
	Speed	1440/2890	960/1450	960/1450	960/1450	960/1450	960/1450
Coolant pump		6L/min	6L/min	6L/min	6L/min	6L/min	6L/min

Company Profile
SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.
