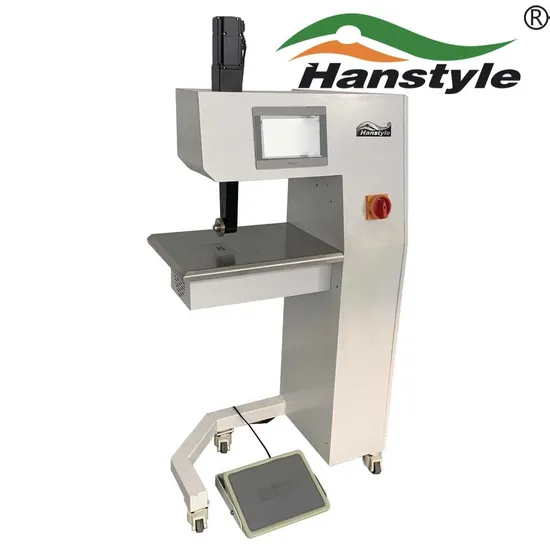

New Ultrasonic Sewing Machine with Consistenly Good Seam Quality

Product Description

New Ultrasonic Sewing Machine With Consistenly Good Seam Quality
Product Description
Description:Ultrasonic bonding is achieved by transmitting high frequency vibration to the fabric. When synthetic materials or nonwovens pass between the corner and anvil of the ultrasonic equipment, the vibration will be directly transmitted to the fabric, through generating heat rapidly in the fabric. The ultrasonic energy generated by the ultrasonic generator is added to the transducer to generate longitudinal mechanical vibration, which is amplified by the horn and the tool head to obtain uniform and strong ultrasonic on the plane of the tool head (also known as the welding head).
Two groups of adjustable speed motors drive the welding head and the welding roller to rotate respectively. When the roller is pressed down, it contacts with the working surface of the tool head. Under the action of ultrasonic mechanical effect (up and down vibration) and thermal effect, the fabric between the roller and the working surface of the welding head can be cut, perforated, stitched and welded..
Product Specification

Model	H-US30/ H-US35
Frequency	30KHz / 35KHz
Power	1000VA
Voltage	220V
Speed	0~20M/min
Welding Width	10mm
Suitable For	Surgical suits, parachutes, bulleproof undershits, swimwear, underwears etc.

Product Advantage
1. Using ultrasonic and special steel wheel processing, the edge of the seal does not crack, does not damage the edge of cloth, and there is no burr, curl phenomenon.2. It's easy to operate. It's not much different from the traditional sewing machine. Ordinary sewing workers can operate it.3. Low cost, 5 to 6 times faster than traditional machines, high efficiency.4.The flower wheel is designed according to the pattern to enhance the strength and beauty of the processed products.5.Short welding time, ultrasonic automatic sewing without needle and thread, save the trouble of frequently changing needle and thread, the sewing speed is 5 to 10 times of the traditional sewing machine, and the width is determined by the customer.
Product Application
Ultrasonic sewing machine is based on the principle of ultrasonic welding. It is used for chemical fiber cloth, nylon cloth, knitted cloth, non-woven fabric, glue spraying cotton, PE paper, PE + aluminum, PE + cloth composite materials; it is suitable for clothing, jewelry series, Christmas ornaments, bedding, car cover, non-woven fabric, leather lace, pajamas, underwear, pillowcase, bed quilt cover, skirt head flower, hairpin ornaments, ribbon slitting, gift wrapping belt, composite cloth, mouth cloth, chopsticks cover Seat covers, coasters, curtains, raincoats, PVE handbags, umbrellas, food packaging bags, tents, shoes and hats products, disposable surgical clothing, masks, surgical caps, medical eye masks, etc. It has the advantages of one-time fusing molding, no burr, convenient wheel replacement, various styles, fast speed, no preheating and no temperature debugging.
