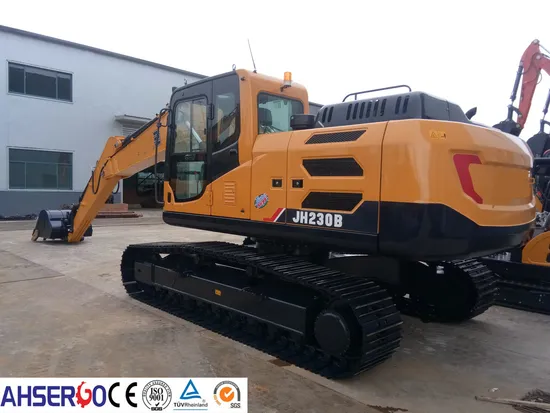

Hot Sale High Efficiency Jh230b 23ton Middle Type Multifunctional Hydraulic Crawler Excavator Best Price
| US$75,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JH230B
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
1.0~1.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Transport Package
Nude
Specification
86.112cbm
Trademark
AHSERGO
Origin
China Shandong
HS Code
8401200000
Production Capacity
3000
Product Description
Product DescriptionThe crawler excavator is an economic middle excavator , which matched the CUMMINS engine with strong power and low noise and low consumption and environment protection, the machine fitted the international brand main pump and valves and motor from KOREA, adopted the hydraulic servo pilot controlling system and hydraulic oil radiator ensure the machine has high working efficiency. the professional structural parts and working mechanism welding by robot, ensure the machine has reliability and durability. It installed the Luxury closed cabin with A/C and LCD display and LED lamp etc. The humanized design , ensure the machine can comfortable operation and convenient maintenance for your all working conditions.
Product Parameters
| Emission standard | Stage III |
| Make/Model | CUMMINS/QSB7-C166 |
| Rated power | 124kw(169HP)/2050rpm |
| Number of cylinder of engine | 6 |
| Max. travel speed | 5.6km/h |
| Standard Bucket capacity | 1.1m3 |
| Machine weight | 22500kg |
| Overall dimension(L*W*H) | 9600mm*2990mm*3000mm |
| Max. digging height | 9680mm |
| Max. digging depth | 6130mm |
| Max. dumping height | 6770mm |
| Max.digging radius | 9935mm |
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make | CUMMINS |
| Model | QSB7-C166 |
| Power /Rotation speed | 124kw(169HP)@2050rpm |
| Number of cylinder | 6 |
| TRACK SYSTEM | |
| Maximum Travel speed | 5.0km/h |
| Width of track shoe | 600mm |
| Number of upper roller per side | 2 |
| Number of bottom roller per side | 9 |
| PERFORMANCE PARAMETER | |
| Rock Bucket capacity | 1.1m³ |
| Swing speed | 11rpm |
| Maximum Grade ability | 30° |
| Maximum Bucket digging force | 140KN |
| Maximum Arm digging force | 99KN |
| Hydraulic system pressure | 34.3Mpa |
| Ground pressure | 46kPa |
| Machine weight | 22500kg |
| Fuel tank | 360L |
| Hydraulic oil tank | 212.5L |
| Boom length | 5700mm |
| Arm length | 3800mm |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 9565mm*2990mm*3000mm |
| Height of cabin | 3000mm |
| Track length on ground(Axle base) | 3700mm |
| Track gauge | 2390mm |
| Minimum Ground clearance | 580mm |
| Min.slewing radius at front work device | 3424mm |
| WORKING RANGE | |
| Maximum Digging height | 9680mm |
| Maximum Dumping height | 6770mm |
| Maximum Digging depth | 6000mm |
| Maximum Vertical digging depth | 6000mm |
| Maximum Digging radius | 9935mm |
Detailed Photos
Various attachments are available for different working purpose
Packaging & Shipping
After Sales Service
FAQ
