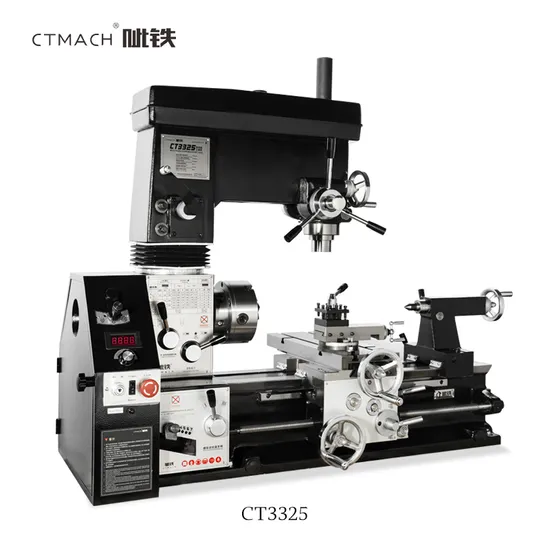

3 in 1 Milling and Drilling Lathe Multi-Purpose Machine CT3325-L with Dro and Variable Speed
Basic Info.
Model NO.
CT3325-L
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
1640*570*1100mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000
Product Description
| Turning-parameters | ||
| Max. swing over bed | 330mm | |
| Max. swing over cross slide | 190mm | |
| Table size | 450x170mm | |
| Distance between centers(CT3325/CT3325L) | 610mm/1000mm | |
| Spindle taper | MT4 | |
| Spindle bore | 28mm | |
| Max. travel of tail-stock sleeve | 51mm | |
| Taper of tail-stock | MT3 | |
| Large carriage travel(CT3325/CT3325L) | 508mm/890mm | |
| Middle carriage travel | 203mm | |
| Transverse feed /grade | 0.019~0.14mm/r (21) | |
| Longitudinal feed /grade | 0.038~0.284mm/r (21) | |
| Metric Thread/grade | 0.5~3mm(9) | |
| Inch Thread/grade | 7~52T.P.I(21) | |
| Spindle speed range/Variable | 50~2600R.P.M | |
| Drilling and milling-parameters | ||
| Max.Drilling capacity | 24mm | |
| Max.milling capacity | 63mm | |
| Max.vertical milling capacity | 12mm | |
| Drilling and milling box stroke | 110mm | |
| Spindle taper | MT3 | |
| Spindle travel | 127mm | |
| Minimum distance from spindle end to table | 100mm | |
| Rotation angle of drilling and milling box | 360° | |
| Spindle speed range/Variable | 50~2600R.P.M | |
| Motor power | 1.1KW | |
| Overall dimensions | 1325x585x1110mm | 1705x585x1100mm |
| Package Size | 1260x570x1100mm | 1640x570x1100mm |
| Net weight/gross weight | 300/350KG | 330/380KG |
