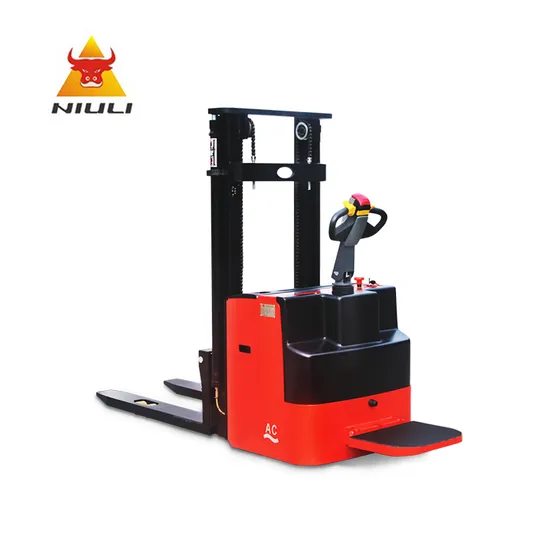

Niuli Full Stacker with Different Loading Capacities

Product Description

Our Advantages
1. High-Quality Products: NIULI is known for producing high-quality material handling equipment that is durable, reliable, and efficient. They use advanced production technology, high-quality materials, and rigorous quality control measures to ensure that their products meet or exceed customer expectations.
2. Competitive Pricing: NIULI offers competitive pricing, making their products affordable for customers around the world. They maintain low overhead costs by using efficient production methods and sourcing materials and components from reliable suppliers.
3. Innovation: With a strong focus on research and development, NIULI is constantly developing innovative products and improving existing ones. They invest heavily in new technology, design, and engineering to stay ahead of the competition and meet the evolving needs of their customers.
4. Global Reach: NIULI has a global network of distributors and partners, allowing them to reach customers in over 40 countries around the world. They have established a strong reputation in international markets and continue to expand their global footprint.
5. Customer Service: NIULI places a high value on customer service. They have a dedicated team of professionals who provide excellent pre and post-sales support, including technical assistance, spare parts availability, and after-sales service. Customers can rely on NIULI to deliver prompt, responsive, and helpful support whenever they need it.

Product Parameters

Max capacity: 2000KG, 2500KG
Lower fork height: ≤ 85MM
Total lifting height: 200MM
Forks length: 1220MM
Forks width: 550MM/685MM
Truck width: 800MM
Truck length: 2280/1920MM
Slope angle load/unload: 5/10
Min rovolving radium: 1750mm
Lifting motor: DC24V/2KW, DC24V/2.2KW
Driving motor: DC24V/0.9KW, DC24V/1.2KW
Battery: DC12V/210Ah
Battery continous working time: 8 hpurs
Self weight: 580/600KG

Model	CTQ10/25,15/25,20/25	CTQ10/30,15/30
Capacity(kg)	1000/1500/2000	1000/1500
Load center(Q\mm)	500	500
Front wheel size(mm)	φ80x60	φ80x60
Rear wheel size(mm)	φ130x55	φ130x55
Traction wheel(mm)	φ250x80	φ250x80
Fork Dimensions(L3\mm)	1150x160x60	1150x160x60
Max.lifting height(H2\mm)	2500	3000
Extended height(H3\mm)	3000	3500
Closed height H3(H1\mm)	1850	2080
Fork clearance from ground(H5\mm)	80-90	80-90
Total length(L1\L2mm)	2070/2360	2070/2360
Total width(B\mm)	815	815
Max.fork width(B1\mm)	680	680
Turning radius (open pedal)(R1\mm)	1950	1950
Self Weight(without battery)(kg)	750\780\820	780\860
Battery charger	AC220V/50Hz DC24V/40A	AC220V/50Hz DC24V/40A
