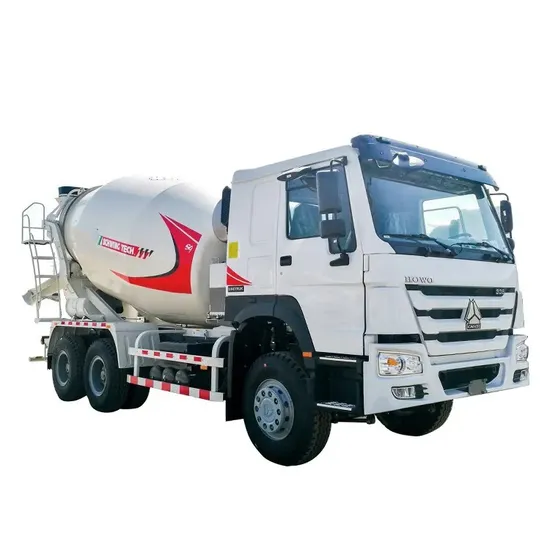

G12K Concrete Machine Mixer 12m3 Diesel Cement Mixer Truck with Cheap Price

Product Description

1, On the basis of in-depth and integrative research on theindustry, the XCMG new generation truck mixers
are system optimized by taking the integrated modularization design totruly realize the integrated innovation. 2, Particular mixing technology with continuous trace,original double log spiral technology with changeable lift angle and changeable screw pitch and optimized auxiliary blades and pressure-reducing hole design can make the
operation path of the spiral in perfect state and can ensure the best concrete flowing trend
in mixing drum and more uniformly discharging. 3, Twin-output control, lightweight technology and anti-scattering technology make the vehicle
more environmental and more effective. 4, Optimized chassis matches with upper parts and such parts as front base andaccessory beam,
rear base and tilted beam, rear base and accessory beam adopt integration design.
After force bearing research and analysis and long-term application, the best position of the connecting point
between tilted beam and rear base are confirmed and thus deformation and break of cross beam can be avoided effectively. 5, Internationally branded hydraulic transmission system: Hydraulic pump, motor and speed reducer of such
world-famous brands as ZF, Rexroth, Bonfiglioli, PMP, TOP are adopted to make the power more sufficient,
system more steady and reliable and service life longer.

Description	Unit		Parameter value
Performance of mixing drum	Geometric volume	m³	19.5
	Max. diameter of drum	mm	2380
	Drum length	mm	5967
	Mounting tilt angle	°	12
	Rotary speed	r/min	0~14
	Charging speed	m³/min	≥3
	Discharging speed	m³/min	≥2
	Residual ratio of discharging	%	<0.7
	Range of slump	cm	5~21
Water supply	Volume of water tank	L	450
	Way of water supply		Air pressure
Overall machine	Chassis brand		Sinotruck
	Chassis model		ZZ1257N4048W
	Steering wheel		Left steering wheel
	Curb mass	kg	15870
	Driving type		6×4
	Wheelbase	mm	4025+1350
	PTO way		Flywheel PTO
	Outline dimension (L×W×H)	mm	9850×2500×3980
Engine	Model		WD615.47
	Rated power	Kw/r/min	273
	Displacement	L	9.726
	Emission standard		China
