Belt Good Double Seal Reduces Material Spillage and Waste

Product Description

Order No.	Product Name	Dimension(mm)
3521100	Skirt rubber	10/15/20/25*100*10000
3521150	Skirt rubber	10/15/20/25*150*10000
3521200	Skirt rubber	10/15/20/25*200*10000
3521250	Skirt rubber	10/15/20/25*250*10000
3521300	Skirt rubber	10/15/20/25*300*10000

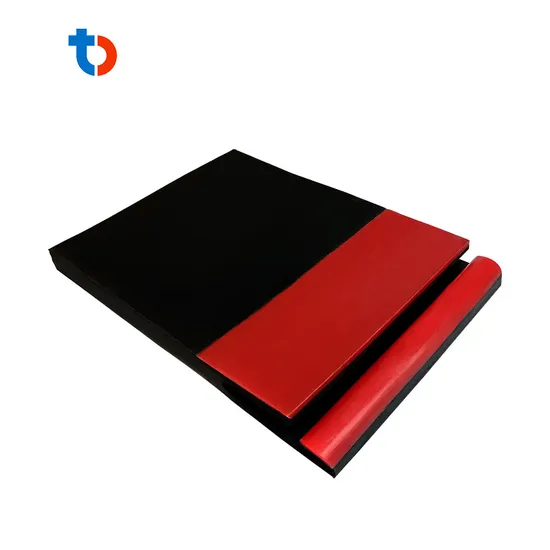

Conveyor belt side skirt rubber manufacturer

Skirt rubber is used mainly in the mining industry as a side skirt on conveyor belt system.
Skirt rubber has a double layer of skirt rubber compound from polyurethane and rubber. The inner wear resistant of polyurethane exceeds the wear life of traditional rubber on skirting, whilst outer anti-dust integral molding can adapt to belt vibration and maintain the correct pressure to effectively seal the belt.
Natural rubber mixed with styrene-butadiene rubber will make skirt rubber more durable, increase its elasticity so that the sealing strip can be firmly attached to the conveyor belt.
Bai-ott's newly formula add semi-solidified lubricant to natural rubber, which solves the problem of high wear and tear and the belt easily damaged.
Advantage:
Reduce dust leakage
Polyurethane layer-high wear resistant
Low contact pressure
Protect conveyor belt and prolong service life
Custom service is available

Color		OEM
Polymer	DIN ISO 1629	NR
Hardness	DIN ISO	51 Shore A
Abrasion	DIN ISO	160 mm³
Specific Weight	DIN EN ISO 1183-1	1.11 g/cm³
Tensile Strength	DIN 53 504	25 N/mm²
Elongation At Break	DIN 53 504	600%
Resilence Elasticity	DIN 53 512	70%
Tear Growth Resistance	ISO 34-1 Method A	11 N/mm
