High Capacity Double Disc Waste PP PE PS LDPE Plastic Pulverizer/Miller/Grinder Machine

Product Description

High Capacity Double Disc Waste PP PE PS LDPE Plastic Pulverizer/Miller/Grinder Machine
Application Areas:
The PNMF-pro series automatic plastic mill is disk-type plastic pulverizer, which has the advantages of high capacity and low-power, This machine can be used for powder processing of PE, HDPE, PP, PS, ABS, EVA, PET, nylon,SPC and other materials.
PNMF series plastic shredders can process powder sizes up to 20-120 mesh.
Description:
The disc grinding pulverizer machine of the PNMF series are available with disc diameter from 300 to 800 mm. These plastic pulverizer machines are high speed, precision grinders for the processing of medium hard, impact resistant and friable materials. The material to be pulverized is introduced through the centre of a vertically fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system. Depending on the application the machines can be equipped with one piece grinding discs or grinding segments.
PNMF-Plus series pulverizing system has its compact designis the perfect fit for the large production user, it uses the dualgrinding disc, one disc as primary disc, another is used for finesgrinding disc to improve the capacity.Up to Double the productionrate of a similar size conventional water-cooled pulverizing systems,Lower operating costs through 25-30% energy savings.

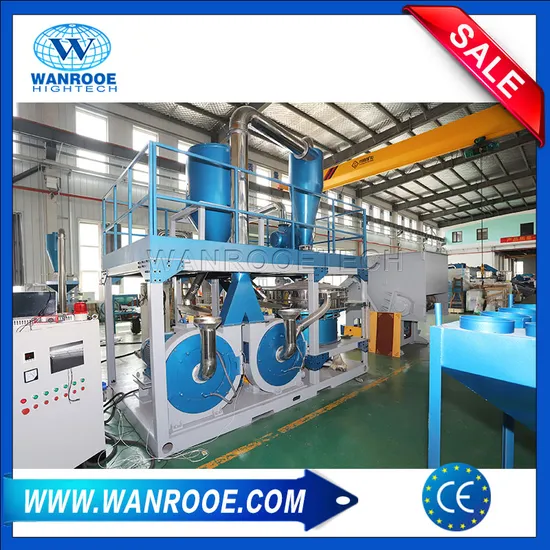

The plastic pulverizer machine is mainly composed of electric motor, disc type blade, feeding fan, vibrating sieve, dust removing system, etc.
According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.
Technical Features:
1. The new disc design is with high quality, strong resistance and the life of this grinding disc is double the ordinary ones.
2. The newly designed professional bearings, is with a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time of machine operation and engineering control.
3. Easy installation and maintenance, just open the door to clean up.
4. The whole milling process is sealed, without dust leakage.
5. Full automatic design, automatically feeding, discharging and sorting.
6. Grinding gap adjustment is simple, just use the feeler gauge and adjust bolts can be fine tuning.
7. The mill use the water and wind double cooling system.
8. With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.
Specification:

	PNMF-500Pro	PNMF-600Pro	PNMF-800Pro
DimensionxLxWxH(mm)	2290x1630x4500	2490x1680x4600	2890x1780x4800
Grinding Disc Diameter(mm)	510	610	810
Main Motor Power(kw)	55x2	75x2	90x2
Vibrating Sieve Diameter/power(mm/kw)	1000/1.1	1500/1.5	1800/2.5
Blow power(kw)	11	15	18.5
Capacity(kg/h)	600-1000	800-1600	1600-2000

Customer Feedback:
FAQ 1,Are you trading company or manufacturer ?
A:WANROOETECH is a Factory-Outlet Platform for excellent manufacturers only!
2,As the shipping period will take long time, how can you make sure the machine won't be broken?
A:Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.

3,I am foreign customer, if the product's part is broken, how can get help from you?
A:Some standard configurations you can buy in your local market, such such as SIEMENS Motor.

4,Could i know the process of manufatcuring production after placing the order?
A:Our sales will share video after testing, or take online video when testing machine. Of course, also welcome you to our factory to see machine testing.

5,Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings according to the quantity .

6,Where is your factory located? How can I visit there?
A:Our company is located in ZhangJiaGang City, China, really glad to invite you to come to our office to have a face to face meeting before we build order.

7,We are new buyers, do not know how to buy? Can we use our own freight forwarding?
A:We are a very experienced company, we will provide you with the guidance of security. We have l ong-term freight forwarders partners to ensure delivery goods to various countries for our customers .You can use your freight forwarding.
Our Service 1. One year guarantee for whole machine
2. 24 hours technical support
3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.
