Dialead Arix Segmented Core Drill Bit for Reinforced Concrete
| US$15.00-150.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
DLZT-001
Certification
CE , ISO
Application
Concrete
Machine
Drilling Machine
Segment Welding Material
Laser Welding
Feature
Fast Cutting, Long Life
Length
450mm , or to Be Customized
Connection
1 1/4" or to Be Customized.
Transport Package
Carton/Wooden Pallet
Specification
50mm~500mm
Trademark
DIALEAD
Origin
Quanzhou China
Production Capacity
10000PCS/Month
Product Description
Product Description Dialead is the top stone machine and stone tools manufacturer in China with over 20 years experience.

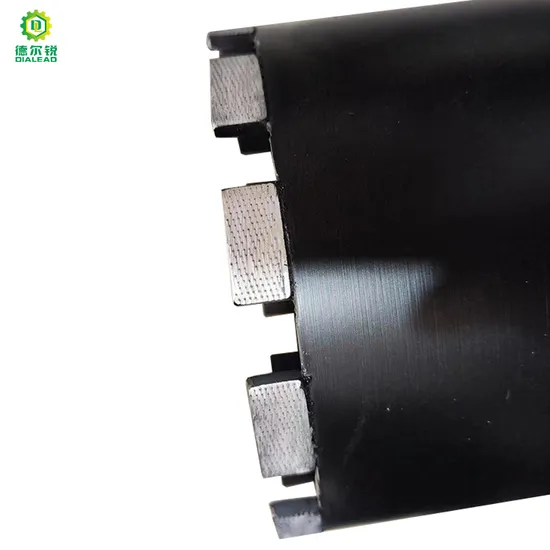

Dialead Arix Segmented Core Drill Bit for Reinforced Concrete is mainly used on drilling machine for cutting concrete and reinforced concrete.
Features
1.fast cutting with longlife.
2.excellent performance and sharpness.
3.good quality for smooth cut.
4.strict product quality inspection processes
Product Parameters
| Reinforced concrete core bits | ||||||
| Specification | segment size | Effective Length | Overall Length | Segment Number | Joint | Optional segment |
| 16 | 3x10 | 400 | 475 | 1 | 1-1/4UNC | shallow slot crown segment |
| 18 | 3x10 | 400 | 475 | 1 | ||
| 20 | 3x10 | 400 | 475 | 1 | ||
| 24 | 15x3x10 | 400 | 475 | 3 | ||
| 25 | 15x3x10 | 400 | 475 | 3 | Normal segment | |
| 28 | 15x3x10 | 400 | 475 | 3 | ||
| 32 | 16x3x10 | 400 | 475 | 4 | Sharp corners segment | |
| 36 | 16x3x10 | 400 | 475 | 4 | groove turbo segment | |
| 38 | 16x3x10 | 400 | 475 | 5 | ||
| 40 | 16x3x10 | 400 | 475 | 5 | Sharp corners groove turbosegment | |
| 42 | 16x3x10 | 400 | 475 | 5 | ||
| 47 | 24x3.5x10 | 400 | 475 | 4 | ||
| 51 | 24x3.5x10 | 400 | 475 | 5 | ||
| 63 | 24x3.5x10 | 400 | 475 | 6 | ||
| 68 | 24x3.5x10 | 400 | 475 | 6 | ||
| 78 | 24x3.5x10 | 400 | 475 | 7 | ||
| 82 | 24x3.5x10 | 400 | 475 | 7 | ||
| 92 | 24x3.5x10 | 400 | 475 | 8 | ||
| 112 | 24x4.0x10 | 400 | 475 | 9 | ||
| 122 | 24x4.0x10 | 400 | 475 | 10 | ||
| 127 | 24x4.0x10 | 400 | 475 | 11 | ||
| 132 | 24x4.0x10 | 400 | 475 | 11 | ||
| 142 | 24x4.0x10 | 400 | 475 | 12 | ||
| 152 | 24x4.5x10 | 400 | 475 | 12 | ||
| 162 | 24x4.5x10 | 400 | 475 | 12 | ||
| 172 | 24x4.5x10 | 400 | 475 | 12 | ||
| 182 | 24x4.5x10 | 400 | 475 | 13 | ||
| 202 | 24x4.5x10 | 400 | 475 | 15 | ||
| 212 | 24x4.5x10 | 400 | 475 | 16 | ||
| 225 | 24x4.5x10 | 400 | 475 | 16 | ||
| 250 | 24x4.5x10 | 400 | 475 | 16 | ||
| 300 | 24x4.5x10 | 400 | 475 | 17 | ||
| 350 | 24x5x10 | 400 | 475 | 20 | ||
Company Profile
Certifications
Exhibition
FAQ
