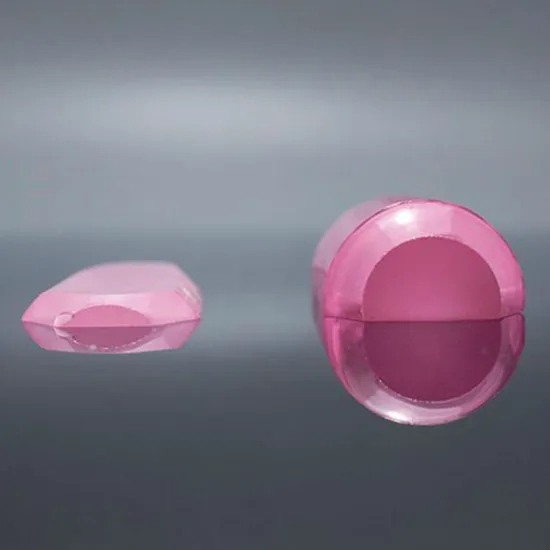

Hot Selling ND: Yap Laser Crystal

Product Description

Products Description
Nd:YAP Nd:YAP is an excellent laser crystal for high-power solid-state lasers. Because it outputs linearly polarized light, it is especially suitable for solid-state lasers with electro-optic boxes or harmonic generators to obtain high-efficiency laser output . The 1.34μm wavelength laser emitted by Nd:YAP crystal has greater advantages in laser medical applications than the 1.32μm wavelength laser emitted by Nd:YAG crystal. Main features: Output linearly polarized laser 1.079μm laser threshold and output efficiency are similar to 1.064μm of Nd:YAG crystal 1.34μm laser output efficiency is higher than 1.32μm of Nd:YAG crystal The absorption of water and human body fluid tissue to 1.34μm laser is higher than that of 1.32μm
Product Parameters

Crystal structure	Orthorhombic system
Lattice constant	a = 0.518 nm, b = 0.532 nm c = 0.736nm
Melting point	1870°C
Density	5.35 g/ cm3
Moh's hardness	8.5
Specific heat capacity	400J/(kg K)
Coefficient of thermal expansion	a axis: 9.5 x 10 -6 /K , b axis: 4.2 x 10 -6 /K ; c axis: 10.8 x 10 -6 /K
Thermal conductivity	11W/(m·K)
Refractive index	na=1.91 , nb=1.92 , nc=1.94
Thermo-optic coefficient	dna/dT=9.7 x 10 -6 /K dnb/dT=14.5 x 10 -6 /K

Doping concentration	Nd: 0.7~ 0.9 at%@1.079 μm (continuous, pulsed laser), 0.85~0.95at%@1.34μm ( continuous laser) other doping concentrations can be customized
Orientation	[010], ±5°
Crystal rod size	Diameter: 2~10mm, length: 20~150mm , can be customized
Dimensional tolerance	Diameter: +0.00/-0.05mm, Length: ± 0.5mm
Cylindrical processing	Grinding and Polishing
Parallelism of end faces	≤10"
Perpendicularity between end face and rod axis	≤5′
Flatness of end face	≤λ/10 @632.8nm
Surface Quality	10-5 (MIL-O-13830A)
Chamfer	0.15±0.05mm
AR Coating Reflectance	≤0.25%
Damage threshold	≥500MW/ cm2
