High Precision Auto-Feed Drilling Machine with ISO 25mm (JZB-25B)

Product Description

COMPANY PROFILE
Hangzhou West Lake Drilling Machine Co ., Ltd . is the largest manufacturer of drilling presses , milling / drilling machines and tapping machines in China , which was established fifty years ago and has been always on the top of quality , production and varieties in the field of bench drills in China .
With brand " Westlake ", our products have been served for international market since 1956. You may find them widely used in different fields around the country and more than 60 countries / areas worldwide at present . Westlake is one of the most famous trademark among China machine and electric products for exportation , enjoying a high reputation by all customers both domestically and overseas .
Equipped with a R & D center , Metrology and test center , we have advanced product and test equipment such as CNC , Composite Machine Tool , Coordinate Measuring Machine and laser interferometer etc . Our company is experienced and strong in product design and manufacture , in constant pursue of advanced technology and continuous development of CNC . Currently we are supplying three series of Westlake drilling machines , Westlake Precision Machine and Westlake compact - sized CNC with more than one hundred types of products .
we obtained ISO9002QA and ISO9001:2000 certification as early as 1996 and 2002 respectively . Our products have obtained Germany GS and Europe CE certification as well .
Product DescriptionMain feature:
1.25mm autofeed drilling machine with the cooling system.
2.Spindle feeding can be not only automatically but also manually.
3.Auto -feeding can reduce labour intensity.
4.Belt driving,low noise.
5.The feeding belt pulley was equipped with over loading protection mechanism.
6.Auto-feeding can use fixed distance operation.It will go back to the start place automaticall.
7.Widely use in various kinds of artifacitious area.
Technical data:

Max.drilling capacity	25mm
Diameter of column	102mm
Spindle travel	130mm
Distance spindle axis to column surface	230mm
Max. distance spindle nose to worktable	740mm
Max. distance spindle nose to base	1050mm
Spindle taper	MT.3
Spindle speeds range	230-2160rpm
Spindle speeds	6
Spindle power feeds	0.1,0.16,0.25mm/r
Diamension of worktable surface	390×470mm
Diamension of base worktable surface	325×275mm
Overall height	1640mm
Motor	1500w
G.W./N.W.	298/270kg
Ship measurement	177×91×55cm

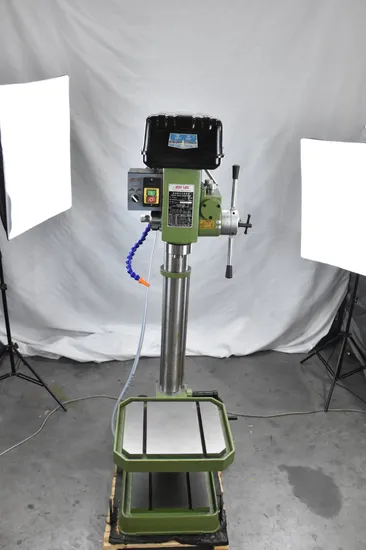

The picture:
FAQ:
1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM / ODM manufacturer factory with export license. we have an experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.

2. Question : Why choose cooperate with us ?
Answer :
--Reliable Quality and All components from world leading suppliers ;
--Cost-effective export infrastructure and total supply chain management ;
3. Question : Where is your factory located ? How can I visit there ?
Answer: With an ISO90001 certified factory located in Hangzhou city, Zhejiang Province, China . It takes about 1 hours from Shanghai by high speed train. Warmly welcome clients to visit us .
4. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5. Question : How does your factory do regarding quality control ?
Answer: Reliable Quality is our dignity and we do quality checking carefully such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control , Environment Control, Product Traceabitity System , Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc.
Welcome to visit our company website (http://wl-mach.en.made-in-china.com/)to send enquiry to us so you would get the best factory direct price,it is only for you !
