Basic Info.
Nominal Pressure
PN1.0-32.0MPa
Channel
Straight Through Type
Structure
Floating Ball Valve
Function
Blow-Down Valve, Relief Valve, Atmospheric Valve, Bypass-Valve
Temperature
Ultralow Temperature
Standard
ANSI/ASME Standard Valves
Application
Industrial Usage, Water Industrial Usage, Household Usage
Warranty
1 and a Half Years
Voltage
220V 110V 380V 24V
Nominal Diameter
DN8-DN100
Production Capacity
10000piece Per Year
Packaging & Delivery
Package Size
3.00cm * 3.00cm * 6.00cm
Package Gross Weight
5.000kg
Product Description
•Direct mount ISO5211 Full Port stainless steel ball valve • 3-piece swing out body designed for easy maintenance • 1000 PSI working pressure at 100°F (38°C) • Visual valve position indicator • Heavy duty motors with overload protection • Thermostatically controlled anti-condensation heater • Manual override with end of travel mechanical stops • Two auxiliary limit switches included with on-o ffunits
Specification and model | | H | L |
mm | in | | | |
DN20 | 3/4" | SQ-05 | 196 | 85 |
DN25 | 1" | | 200 | 90 |
DN32 | 1 1/4" | | 210 | 112 |
DN40 | 1 1/2" | SQ-10 | 231 | 120 |
DN50 | 2" | | 252 | 145 |
DN65 | 2 1/2" | SQ-20 | 261 | 170 |
DN80 | 3" | | 332 | 200 |
DN100 | 4" | SQ-60 | 387 | 263 |
Product Overview:

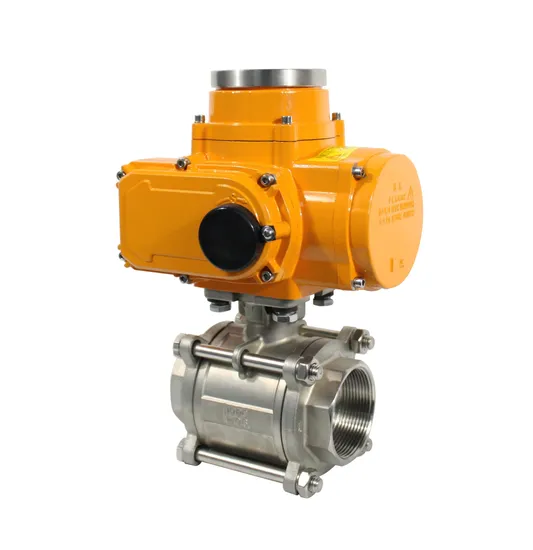

The electric threaded ball valve adopts an integrated structure, which is matched with SQ electric actuator. It can operate by inputting (4-20mADC, 0-10VDC or 1-5V) signal or single-phase power supply. It has the characteristics of strong function, small size, lightweight and pleasant, reliable performance, simple matching, and large circulation capacity. At present, this valve is widely used in industrial automation control systems in industries such as food, environmental protection, light industry, petroleum, papermaking, chemical engineering, teaching and research equipment, and power.
