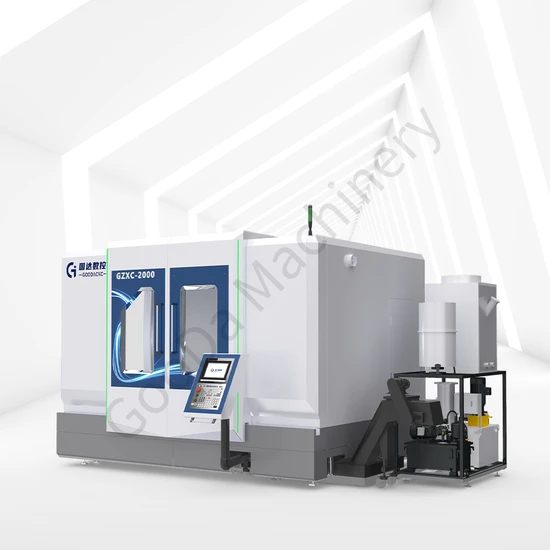

Advanced 5 Axis Machining Center with Enlarged Worktable

Product Description

Main Features
GooDa 5-Axis Multi-Tasking Machining Center Introducing the pinnacle of precision and innovation, this state-of-the-art machining center features an advanced, fully digital numerical control system, meticulously harmonized with cutting-edge artificial intelligence technology for seamless operation.
This remarkable machine is adorned with a suite of extraordinary features: comprehensive full-lifecycle screw load analysis, intelligent management of tool service life, robust and unwavering machine protection functions, and convenient QR code capabilities. It also boasts the ability to self-adjust servo parameters, thereby dramatically enhancing processing quality, optimizing process parameters, and prolonging the equipment's life span.
This adaptable powerhouse is ideally suited for use in high-demand fields, including aerospace, automotive, energy, shipbuilding, precision machine tools, mold fabrication, and the ever-evolving 3C industries, making it an indispensable asset for leading-edge production.
Main Functions
Innovative Thermal Deformation Countermeasures
State-of-the-Art Countermeasures for Heat Management in Milling & Lathe Spindle, Turntable, and X-axis Screw Rod
- Our system masterfully circulates temperature-controlled cooling water around the spindle bearing's outer cylinder. This advanced method significantly curtails spindle deformation due to the intense heat generated by high-speed rotation, thereby safeguarding machining precision.
- Equally, by channeling temperature-controlled cooling water around the turntable bearing's outer cylinder, the system effectively diminishes heat from rapid rotations. This precise control ensures stable machining accuracy and preserves precision.
- The meticulously regulated temperature flow of cooling water within the shaft adeptly counteracts ball screw heating, while effectively neutralizing thermal effects arising from the servo motor.
Advanced Mill-Turn Spindle Technology
Our all-in-one turning and milling spindle boasts seamless compatibility with matching ATC motors. Its streamlined and compact design notably reduces interference between the spindle and workpiece, expanding the range of processing capabilities. It excels in handling diverse materials such as cast iron, 45# steel, aluminum, and titanium, thus broadening your machining possibilities.
Precision Angle Encoders
- Equipped with cutting-edge linear encoders, the X, Y, and Z axes offer precise detection of each axis's movement, substantially enhancing the machine tool's positioning accuracy and precision in repeatability.
- For the B and C axes, our spindle encoders ensure remarkable precision in angular positioning and perfect alignment of the rotational axis.
Illustrative Examples of Processed Parts
Our team of seasoned experts is passionately committed to assisting you in selecting the perfect machine that seamlessly aligns with your specific processing demands.Connect with Our Experts for Tailored Assistance Now!
Product Parameters

Model	GZXC-2000
Category	Attribute	Value	Unit
Fixed worktable	Worktable size	2000*500	mm
	Max. load capacity	1500	KG
	T-slot	7-20*63	/
X/Y/Z-axis	X-axis travel	1800	mm
	Y-axis travel	500	mm
	Z-axis travel	600	mm
	Rapid traverse speed(X/Y/X)	20/20/20	mm/min
	Feed rate	16/16/16	mm/min
	Positioning accuracy	0.015/1000	mm
	Repeat positioning accuracy	0.01/1000	mm
Turntable	Outer diameter	800	mm
	Max.load	850	KG
	T-slot	7*18*100	mm
	Min.speed/Max.speed	60/100	rpm/min
	Positioning accuracy	±7	arc-sec
	Repeat positioning accuracy	±5	arc-sec
B-axis	B-axis travel	-30°~+210°	°
	B-axis speed	500	rpm/min
	Positioning accuracy	6	sec
	Repeat positioning accuracy	-30~210°
Spindle	Tool holder specifations	HSK-63A	/
	Distance from spindle nose to table	150	mm
	Spindle speed(MAX.)	45~12000	r/min
Tool magazine parameters	ATC capacity	40	T
	Tool size(full tool)*tool length	∅125*300	mm
	Tool Dia(adjacent empty)*tool length	∅220*300	mm
	Max.tool weight	8	KG
Power requirement	Rated voltage	AC380V±10%	V
	Total power	80	KW
	Air pressure	0.6-0.7	Mpa
Space & weight	Machine weight	18	T
	Maching size (L*W*H)	7400*4400*3000	mm

Core Components
Milling and Turning Combined Machine Structure
1. Our pioneering machine structure is expertly crafted, utilizing exhaustive structural analysis to seamlessly integrate both milling and turning centers. This fusion ensures lasting high-precision positioning and processing capabilities.
2. Experience unparalleled high-precision positioning across the entire expanse of the Y-axis travel, setting a new standard in accuracy.
B-axis Uses a Roller Cam System
1. The roller cam system offers exceptional rigidity, eliminating backlash to achieve remarkable high-precision and highly efficient processing performance.
2. The standard B-axis rotary encoder provides a stunning 0.001° precision indexing, ensuring exactitude in every movement.
C-axis Uses Hydraulic Locking System
This potent hydraulic locking system, in synergy with a rotary encoder, guarantees extraordinary repeatability and positioning accuracy, confined to just ±5 arc seconds.
Compact Milling-Turning Spindle and Wide Processing Area
Ingeniously designed, the compact spindle's dimensions are reduced by approximately 10% compared to similar models. This enhancement optimizes the processing area and minimizes interference risks between the spindle and workpiece.
