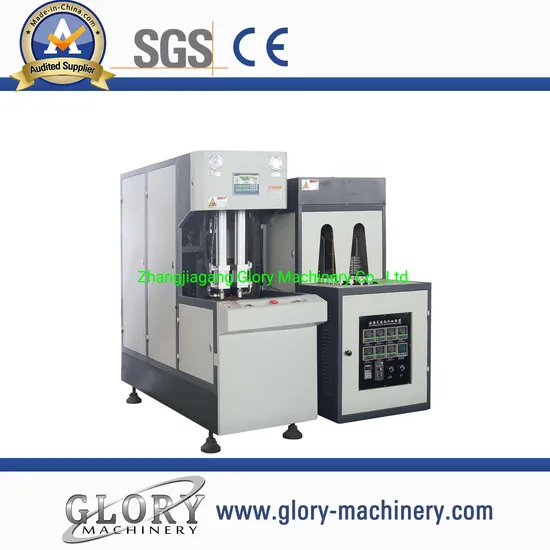

Semi Automatic Bottles Making Machine

Product Description

Semi-automatic blow moulding machine Use integated mic computer controler,with OMRON control chip,the response speed is very quickly and the timing very precisely.Use life durable and failture rate very low.It's the revolutionary product of industrial control. High responsiveness pneumatic components,action timely and precisely Thorough safe operation mechanism,start-up with two hands,avoid the accident during the operation Infrarted heating technology,safe and energy conservation,no pollution of the environment.With the 8 rates adjustable temperature controler,make the temperature suitable for blowing. Technology advantage: Special design,high rigid compound die structure Wide adaptability, suitable for every type mould thickness Adjust convenience No mould rolling out More energy conservation,no need much air supply High burnish principal axis, with very precise polishing, light action and low noise. Short mould stroke,quick action All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100% Hig dead-weigh, ensure the steady during the operation Main parameters :

Model NO.	GMS-800
Theoretical Output	800pcs/hr
Max.Container Volume	2L
Max. Neck Diameter	55mm
Max. Container Diameter	95mm
Max. Container Height	320mm
Mold Thickness	120-250mm
Number Of Cavity	2 cavity
Use Power	8kw
Working Pressure	1.0mpa
Blow Pressure	<3.0mpa
Machine Size	1.6x0.6x1.56m
Machine Weight	0.5T
Heater Size	1.7x0.6x1.34m
Heater Weight	0.2T
