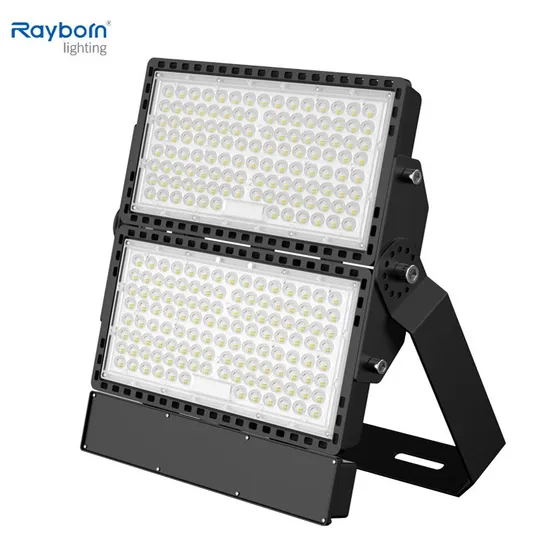

Outdoor Stadium High Mast Sports Football Field Pitch Golf Baseball Tunnel Tennis Court Light 100W 150W 200W 300W 400W 500W 600W 800W 1000W LED Flood Lighting

Product Description

Outdoor Stadium High Mast Sports Football Field Golf Baseball Tunnel Tennis Court Light 100W 150W 200W 300W 400W 500W 600W 800W 1000W Watt LED Flood Lighting
Product Parameters Specifications of Outdoor Sports LED Flood Lighting :

Model	RB-FLL-100WHX	RB-FLL-150WHX	RB-FLL-200WHX	RB-FLL-240WHX
Power	100W	150W	200W	240W
Input Volt	100-240V/100-277V//AC 50/60Hz
Power Factor:	>0.96
Power Efficiency:	>92%
Driver	Sosen/Meanwell/customer specified
Ra	Ra>80
Lumen(Lm/W)	150LM/W
Control method	Ordinary, 0-10V, PMW, DALI,Photocell sensor
Light body material	Die-casting aluminum lamp body + Tempered glass+PC Lens+ 304 stainless steel screws
Beam angle	80*150Deg/30/60/90Deg
CCT:	3000K/4000K/5000K/5700K/6500K
Protection level	IP66/IK09
Products Size:	298*275*47mm	298*275*47mm	400*305*47mm	400*305*47mm
Lightning protection level	10KV or 20KV, according to the actual needs of customers
Work temp	-35ºC~65ºC
Work humidity	10%~90%
Warranty/Life	5years/50,000hrs
Installation method	Adjustable angle bracket installation
Model	RB-FLL-300WHX	RB-FLL-400WHX	RB-FLL-600WHX	RB-FLL-600WHX-F
Power	300W	400W	600W	600W
Input Volt	100-240V/100-277V//AC 50/60Hz
Power Factor:	>0.96
Power Efficiency:	>92%
Driver	Sosen/Meanwell/customer specified
Ra	Ra>80
Lumen(Lm/W)	150LM/W
Control method	Ordinary, 0-10V, PMW, DALI,Photocell sensor
Light body material	Die-casting aluminum lamp body + Tempered glass+PC Lens+ 304 stainless steel screws
Beam angle	80*150Deg/30/60/90Deg
CCT:	3000K/4000K/5000K/5700K/6500K
Protection level	IP66/IK09
Protection level	IP66/IK08
Size:	400*305*47mm	400*465*68mm	490*448*84mm	594*438*85mm
Lightning protection level	10KV or 20KV, according to the actual needs of customers
Work temp	-35ºC~65ºC
Work humidity	10%~90%
Warranty/Life	5years/50,000hrs
Installation method	Adjustable angle bracket installation

Primary Competitive Advantages of Our New Design Outdoor Arena LED Flood Lights as Below :
1. Taiwan MeanWell or INVENTRONICS drivers, 3030/5050SMD single power LED chips.
2. Finned radiators, very good heat dissipation.
3. Flexible positions can be adjusted within 180°.
4. Waterproof IP66 design,elimination mist,avoid condensation,widely used for indoor and outdoor environment.
5. Reflector 8°/20° /40°/ 60°/90°/120°/140*100° beam angles are available,meet the requirements of professional light distribution and can be use at different place.
6. 100W to 1500W can be chosen, 5 years warranty. Detailed Photos
Product Description Features of Outdoor Flood light LED :
1. With 100W 200W 300W 400W 500W 600W 1000W power, two installation methods :
2. Total luminous flux up to 170lm/W;
3. High index CRI>90, TLCI>90, R9>20, common CRI>80/CRI>90 optional;
4. High-purity aluminum integrated cold segment fin heat dissipation, fast heat conduction and excellent heat dissipation performance;
5. Professional light distribution, the lens is available in a variety of angles such as narrow, medium and wide;
6. Professional anti-overflow hood to effectively control spillage and avoid light pollution;
7. Protection grade IP66, IK10, resistance to 17 winds, no fear of outdoor harsh environment;
8. Maximum surge voltage (T3) Vmax 20KV.
Product Production Floodlight LED Spot Lights Production Workshop:

Strict Tests of IP66 Flood LED Lights :
Before shipping, all our LED flood lights will be over 12 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled less than 0.1%. Quality is ensured, you can be assured.

Rayborn Testing Equipment:
Packaging & Shipping Packaging of Outdoor LED Flood Light :
Our individual package maximize protecting the lights from transfer damage in transit.
1.Label on backside of each flood LED lights and your required label is available.
2.One piece led flood Light per carton.
3.This is our regular packing of the led flood lamps,if you need,we can also custom color packing and put your logo on it.

Shipping of Flood LED Lights : By Sea,Air,Express,Railway
Big quantity advised to be shipped by sea.
Samples advised to be shipped by express.
Samll quantity advised to be shipped by air.


Design Simulation LED Flood Light Dialux:

Certification:
Applications Applications of IP66 Outside Flood Light LED :
1. Advertising board,playground and stadium lighting.
2. Parking lot and airport lighting.
3. Highway and Railway tunnel lighting.
4. Bridge and culvert lighting.
5. Square,garden,and building lighting.
Widely used in factory,gymnasium,billboards,buildings,landscaping,the site of light project and decorative lighting project etc.
Company Profile Rayborn Good Service:
1.Your inquirey related to our products or price will be replied within 24 hours.
2.All your inquireies will be well explained by our experienced staff.
3.OEM&ODM,also provide customized service.
4.Distributor ship is available for your unique design and some our current models.
5.We will keep secret for customer sale area,design ideas and all other private information.

Company Information:
Rayborn Lighting Industry Co., Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,ETL SAA authentication.
With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including LED Stadium Light,Led Flood light,Led Tunnel Light,Led High Bay light,LED Street Light etc
We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.
FAQ:
Q1: What is the warranty of your led flood lights?
A: We offer 5 years guarantee for our LED flood lights,and we will offer you based on your requirements.

Q2: What color temperature we can choose?
A: We offer LED flood lights in warm white, natural white,pure white and cool white and the range is as follow:(These are our conventional color ranges,we also can offer you other range that you need)
Warm white = 3000K-3500K
Natural white = 4000K-4500K
Pure white = 5000K-5700K
Cool white = 6000K-6500K

Q3: Do your led flood lamps can be used in our country?
A: Yes, Our LED flood lamps have wide input voltage AC100-277V, and it can be customized too.

Q4: How do you help me to save freight cost?
A: We will give you best solution based on your order quantity,and freight quotation can be sent within 1 hours.
Q5: Do you have any MOQ limite?

A: We don't have MOQ,even only one piece LED flood light you can buy.
Q6: What's the lead time?

A: Sample :3-7 days. Mass production: 7-15 days depends on the order quantity.

Q7:How do you ship the goods?

A: Goods can ship by SEA,TRAIN,AIR shipment to all over the world.
Q8: Do you accept Paypal or Western Union for sample order?

A: Yes, we accept Paypal and Western Union as payment term.T/T,LC are also accepted.
