LED Wall Washer for Energy-Efficient LED Lighting Solutions

Product Description

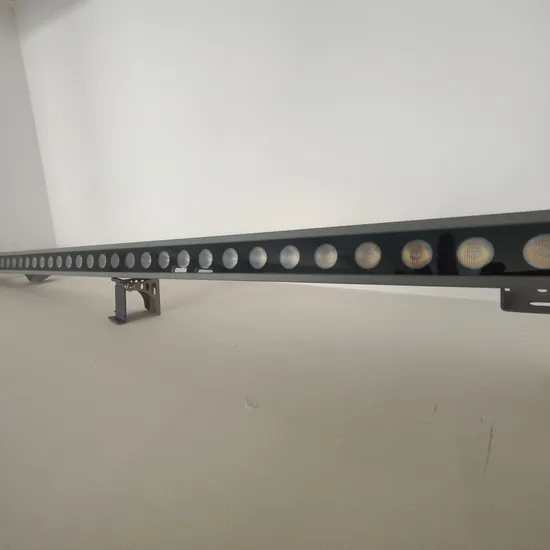

LED wall washer for energy-efficient LED lighting solutions
Product DescriptionAppearance and StructureThe lamp body features a streamlined design. An anti - glare light - shield is optional, which facilitates concealed installation. The material is extruded 6063 aluminum, with an anodized natural - color surface treatment, offering high corrosion resistance. The lampshade is made of ultra - white glass, boasting high light transmittance.
Electrical ProtectionInsulation resistance and electrical strength, touch current and protective conductor current are considered. It includes protection against electric shock and meets the requirements of grounding resistance.
Optical Light DistributionThe lamp is equipped with a PMMA optical lens, which has high light transmittance, provides uniform light emission, has strong UV resistance, and can withstand impact tests. The lamp is fitted with high - specification lamp beads from imported brands, featuring high brightness, high color rendering index, and high luminous intensity. With a one - time light distribution and precise optical design, it ensures uniform light output and consistent light color.
Installation and WiringThere are two installation methods: side - mounting and end - mounting, both of which are simple and convenient. Quick connection can be achieved through the joint components or accessories of the lamp, which also facilitates maintenance.
Control MethodIt adopts the standard DMX512 protocol for control. The light color and brightness can be adjusted uniformly to achieve effects such as synchronization, chasing, and flowing water.Product Parameters

Model	SY-XGLXQD-011
light source	Well known brand
Size	1000*23*H30mm
LED color	single color/RGB//RGBW
LED quantity	Configure according to power.
Voltage	DC24V
Material	Aluminum alloy lamp body, glass face cover, and surface electrostatic spraying
IP rate	IP65
beam angle	10x60 degree
Input voltage	AC100-240V ±10% ,DC24V
System power	12W
Surrounding temperature	-35ºC-50ºC
Application	Lighting for cylindrical structures such as building exteriors, bridges, and tree trunks.
Power and style	It can be customized according to customers' requirements.

Detailed Photos
Other product
Lighting effectUrban night - scene lighting, as a professional technology that uses light to shape the urban night - time image and atmosphere, its effective implementation can not only endow the city with a more charming spiritual outlook, but also powerfully demonstrate the unique personalized color of the city.
In the actual design process, it is necessary to closely adhere to the city's style characteristics and design concepts, integrate innovative thinking, and show unique design ideas and personalized expressions.
Urban lighting objects can be roughly divided into the following categories: building night - scene lighting, square night - scene lighting, landscape road lighting, and garden night - scene lighting. And the night - scene lighting methods cover a variety of types such as reflective lighting, contour lighting, internal penetration lighting, and special lighting.
Building Night - scene Lighting
It mainly uses light to skillfully reproduce the shape and outline of the building in the night. The lighting objects usually include buildings, roads, bridges, towers, etc. When choosing and designing the lighting method, it is necessary to fully consider the external shape, overall structure, and material characteristics of the building. At the same time, it is also necessary to combine the current era style and national style, and integrate local characteristic elements to create a unique building night - scene effect.
Landscape Road Lighting
It is mainly aimed at the night - scene layout of landscape roads and commercial streets. When lighting, appropriate lighting characteristics can be flexibly selected according to the specific scene situation to create a warm and romantic or bustling and lively night - scene atmosphere.
Square Night - scene Lighting
It needs to be carefully designed according to the function, type, and characteristics of the square, aiming to achieve the coordination and unity of the lighting effects of the square and its surrounding environment, making the square the dynamic center of the city at night.
Garden Night - scene Lighting
Generally, it is necessary to carry out differential design for the hard and soft landscapes in the garden according to the characteristics and nature of the garden. Through ingenious lighting layout, the natural beauty and cultural charm of the garden are highlighted, bringing tourists a unique night - time tour experience.
