Fanuc Bed Type CNC Milling Machine

Product Description

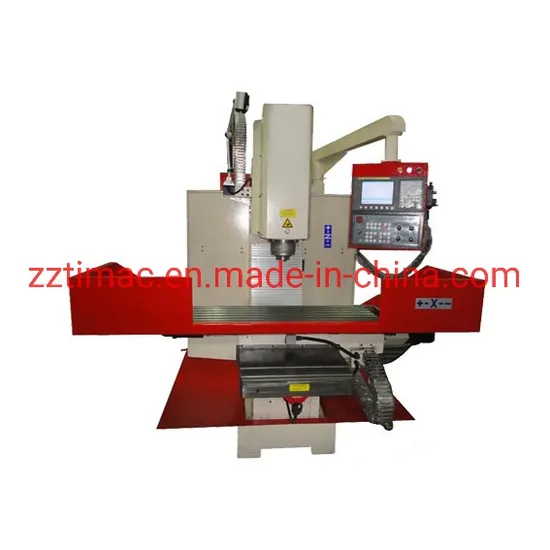

FANUC Bed Type CNC Milling Machine KBM-1654
Features:
1. The spindle system features strong rigidity, it is suitable for rough machining and force cutting, hence improve machining efficiency, features long travel, heavy loading.
2. The milling machine can be used for drilling, boring, lathing and milling.
3. The milling machine adopts rectangular guide ways, features strong rigidity and high accuracy.
4. Radial tool holder of facing head on the headstock head for radial machining.
5. Optional digital readout device, reading accuracy 0.01mm, positioning accuracy 0.05mm.

Standard accessories:
Semi-isolated table shield, Cutting fluid circulation system, Auto. Lubrication system,
Spindle air flow,Working light, Level adjusting screw and block, Clamping apparatus.

Optional accessories:
The forth axis revolving table, Vertical arm type ATC, Full closed safety cover,
Cutter length measuring unit, Edge finder, Shank

Technical Parameters

Specification	KBM-1354B	KBM-1654	KBM-2063	KBM-2473
Table size(L×W/mm)	1370×330	1370x406	1600x510	1854x610
Table loading capacity(kg)	400	800	1200	1500
T-slots(W/mm×NO)	16×3	16x5	18x5	18x5
X-axis(mm)	800	1000	1200	1500
Y-axis(mm)	450	480	700	700
Z-axis(mm)	480	600	600	700
Max.move speed(mm/min)	8000	8000	10000	10000
Max.feed speed(mm/min)	3000	3000	4000	4000
Spindle speed(rpm/min)	range:40~6000
Spindle nose	BT40	BT40	BT40/BT50	BT40/BT50
Spindle motor(kw)	5.5	7.5	7.5	7.5
Servo motor(kw)	X/Y:1.0,Z:1.5	X/Y/Z:1.5	X/Y/Z:2.0	X/Y/Z:2.0
Spindle quill diameter(mm)	120	150	150/160	150/160
Spindle to column surface(mm)	450	520	640	695
X-axis(mm)	32×5p4Double nuts	32×5p4Double nuts	40×10p4Double nuts
Y-axis(mm)	32×5p4Double nuts	40×5p4Double nuts	40×10p4Double nuts
Z-axis(mm)	32×5p4Double nuts	40×5p4Double nuts	40×10p4Double nuts
Positioning accuracy(mm)	±0.015	±0.015	±0.015	±0.015
Repeatability(mm)	±0.008	±0.008	±0.008	±0.008
Packing dimension(L×W×H)(mm)	2250×2280×2450	2500x2280x2650	2900x2950x2800	2900x3150x2900
Machine weight(kg)	2600	3800	5000	6000

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
