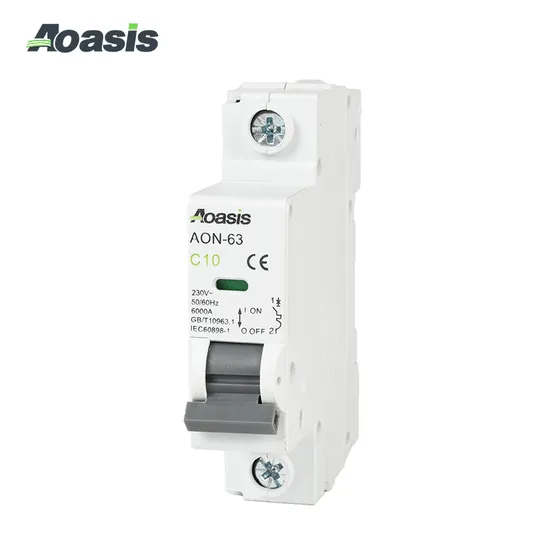

Aoasis Aon-63 Dz47 C63 2A-63A 1p/2p/3p/4p AC 230V/400V 6ka Mini Circuit Breaker MCB
| US$0.69-0.89 | 1 Piece (MOQ) |
Basic Info.
Model NO.
AON-63 1P
Speed
High-Speed Circuit Breaker
Installation
DIN Rail
Structure
MCB
Poles Number
1
Type
Circuit Breaker
Function
Overcurrent Protection, Short-Circuit Protection
Certification
CE, CB, CCC
Name
MCB Circuit Breaker
Pole
1p 2p 3p 4p
Rated Current
2A 4A 6A 10A 16A 20A 25A 32A 40A 50A 63A
Rated Voltage
230/400V
Insulation Voltage Ui
500V
Certificate
CE/ISO9001/CCC
Mechanical Life
20000 Times
Ambient Temperature
-35ºC~ +70ºC
Transport Package
Standard Packaging
Trademark
AOASIS
Origin
China
HS Code
8536200000
Production Capacity
9999999piece/Pieces Per Month
Packaging & Delivery
Package Size
45.00cm * 23.50cm * 34.50cm
Package Gross Weight
27.000kg
Product Description
Product DescriptionAON series miniature circuit breakers are suitable for AC 50/60Hz, rated voltage 230V/400V , rated current up to 63A circuit, used for overload and short circuit protection, under normal circumstances as the line infrequent operation conversion, can also be used as disconnecting line for line and equipment maintenance. Circuit breaker is suitable for commercial, high-rise and residential buildings and other places.
Technical Parameters:
| Type | AON-63 |
| Standard | IEC60898-1,GB10963.1 |
| Functions | Short-Circuit Protection,Overload Protection,Isolation Function |
| Frame Current(A) | 63 |
| Pole | 1,2,3,4 |
| Rated Current(A) | 2,4,6,10,16,20,25,32,40,50,63 |
| Rated Voltage(V) | AC230(1P),AC230/400 |
| Rated Insulation Voltage | AC 500 |
| Rated Impulse Withstand Voltage(KV) | 4 |
| Rated Short-Circuit Breaking Capacity | 4.5KA,6KA |
| Rated Ultimate Short-Circuit Breaking Capacity | 4.5KA,6KA |
| Rated Opetating Short-Circuit Breaking Capacity | 4.5KA,6KA |
| Trip Curve | B(3In~5In) |
| C(5In~10In) | |
| D(10In~14In) | |
| Release Form | Thermomagnetic Release |
| Electrical Life | 10000 |
| Mechanical Life | 20000 |
| Pollution Grade | 2 |
| Protection Level | IP20 |
| Temperature | -35ºC~ +70ºC |
| Altitude | Do not Exceed 2000m |
| Wiring Terminal | Screw Crimping |
| Max. Connection Capacity (mm2) | 25 |
| Max.Ultimate Torque (Nm) | 2.5 |
| Installation Category | II,III |
| Installation Method | TH35-7.5 Standard DIN rail |
| lncoming Wiring Method | Can Be Installed Up or Down |
Outline Overall and Installation Dimensions (mm):
Product Catalog
FAQ
Q1. What's the payment term? A. We accept TT,30% deposit and 70% balance before shipping. Q2. How's the delivery time ? A. We depend on different products and different quantities. Generally, it takes about 3-15 days. If the quantity is very large, we need to negotiate. Q3. Tell me the standard of package? A. Normally are cartons, but also we can pack it according to your requirement. Q4.Could you offer Form A or C/O ? A. It's totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for thiscertificate. Q5.Would you accept to use our logo ? A.If you have good quantity,it absolute no problem to do OEM.
