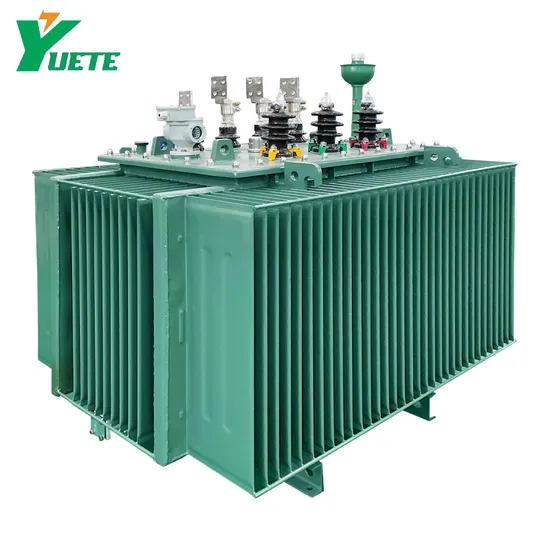

3 Phase Step up 13.2kv 13.8kv Oil Immersed Power Transformer for Generator

Product Description

Three Phase 13.2/13.8kV Oil Immersed Transformer
Product Features:
- Use high quality CRGO cold rolled silicon steel to ensure low no-load loss;
- Good energy-saving effect, significant social and economic benefits;
- Strong anti short-circuit and lightning impulse resistance;
- High reliability support structure;
- Can be used both outdoors and indoors;
- Voltage and rated power of our transformers can be customized. Available voltage: 6kV, 6.3kV, 10kV, 10.5kV, 11kV, 12.47kV, 13.2kV, 13.8kV, 15kV, 20kV, 22kV, 24kV, 33kV, 34.5kV, 35kV, 38kV...... to 110kV.
Technical specifications:

Rated Power (kVA)	Rated Voltage(kV)		Vector Group	No-load loss(W)	Load loss(W)	Impedance(%)
	HV	LV
30	13.8 13.2 11 10.5 10 6.3 6 Tapping range: ±5%; ±2*2.5%	0.4 0.433 0.415	Dyn11 Yyn0 Yzn11 Dyn5	100	600	5.5
50				130	870
80				180	1250
100				200	1500
125				240	1800
160				280	2200
200				340	2600
250				400	3050
315				480	3650
400				570	4300
500				680	5150
630				810	6200	6
800				980	7500
1000				1150	10300
1250				1360	12000
1600				1640	14500
2000				1960	17800
2500				2310	20700
3150				2730	24300

Product Details: Bushings Gas relay Conservator tank Oil level gauge Active part Transformer tank
Production Equipment:
Raw materials Core slitting Core cutting
Core stacking Insulating curing HV winding
LV winding Pouring Drying
Assembly Testing Warehouse
Test Equipment:
Test transformer Voltage ratio tester Oil dielectric strength tester
Oil dielectric resistivity tester Temperature test bench Transformer integrated test bench
Company Profile:
Guangdong Yuete Transformer Co., LTD, established in 2009, is a professional high-tech enterprise of manufacturing, researching and sales, and is located at No. 5 of Zhiye Road, Songxia Industrial Park, Shishan town, Nanhai, Foshan, Guangdong, China.
Our main products are:
-Power transformers: Oil immersed transformer, Dry type transformer, Rectifier transformer, Furnace transformer, Amorphous alloy transformer, Isolation transformer, etc.
-Box type substation: Pad mounted transformer, Compact transformer substation(Prefabricated transformer), PV substation, New energy storage substation, etc.
-Switchgear: High voltage switchgear, Low voltage switchgear
Our products are widely used in Southeast Asia, Africa, North America, South America, Middle East, Middle Asia, etc. We have complete and effective quality control system and test system, strictly based on IEC standard, IEEE standard, ANSI standard. We have ISO, CQC, Type test report, which enhance our company's competitiveness and realize the sustainability of our development.
We have over 300 employees, most of the engineering and technical staff and production staff are senior engineers and production experts who have been working in the industry for more than 10 years. Driven to provide clients with good-quality products and technical support, we offer thoughtful and rapid pre-sales and after-sales one-package services.
Certificates:
FAQ
1. Q: Are you a manufacturer? A: Yes, we are a professional manufacturer, specializing in Oil immersed transformer, Dry type transformer, Amorphous alloy transformer, Pad mounted transformer, Compact transformer substation, Isolation transformer, OLTC transformers, Furnace transformers, Rectifier transformers, Switchgears, Circuit breaker, etc for over 14 years.
2. Q: What is the MOQ? A: We accept OEM/ODM projects. The MOQ=1 unit. It would be great if you can provide technical drawing and technical specification document. If not, you can contact us for further communication.
3. Q: What is the production time? A: It will take about 25-30 days based on the order requirements.
4. Q: What is the payment terms? A: T/T, LC or Cash
5. Q: How long is the guarantee? A: We offer 12 months(1 year) guarantee.
6. Q: How can I trust you? A: We are the audited diamond supplier of Made-In-China. Our products are widely used in Southeast Asia, Africa, North America, South America, Middle East, Middle Asia, etc. We have complete and effective quality control system and test system, strictly based on IEC standard, IEEE standard, ANSI standard. We have ISO, CE, CCC, CQC, Type test report, which enhance our company's competitiveness and realize the sustainability of our development.
