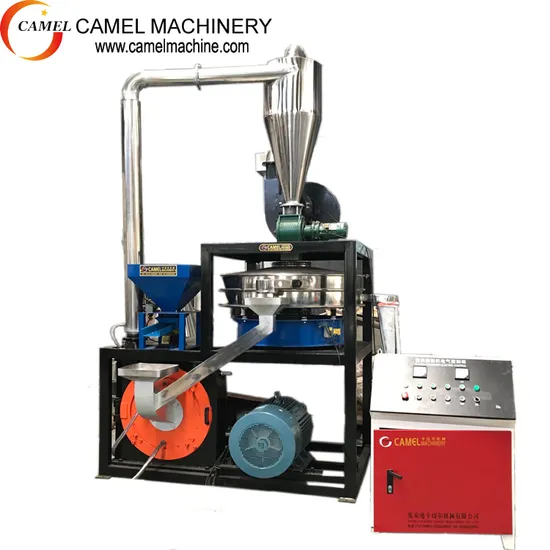

Top Quality PE LDPE EVA and Soft Rigid Pulverizer Plastic Grinder Machine
Basic Info.
Model NO.
MP
Material Processed
Plastic Flakes
Plastic Type
PE
Screw
None
Automation
Automation
Computerized
Computerized
Certification
QS, GMP, ISO9001:2008, CE
Voltage
380V 50Hz 3phase(Customized)
Power
30/45/55/75kw(Customized)
Capacity
100-800kg/H
Machine Testing Video
Provided
Diameter of Rotor
500mm
Cooling Way
Water Cooling
Mesh Size
10-80mesh
Bearing
NSK
Contactor
Siemens
Blades Materials
SKD11
Color
Customized
Name
Recycling Grinding Machine Pulverizer
Inverter
ABB/Delta
Motor
Siemens Beide
Transport Package
Standard Shipping Package
Specification
2mx3mx3.6m
Trademark
CAMEL MACHINERY
Origin
Zhangjiagang Jiangsu China
HS Code
84778000
Production Capacity
600 PCS/Year
Packaging & Delivery
Package Size
200.00cm * 300.00cm * 360.00cm
Package Gross Weight
2000.000kg
Product Description
Disc Type plastic PE PP HDPE ABS PET pulverizerProduct Description
Main features of PE LDPE LLDPE pulverizer:
1.Low power consumption, high capacity 2.Simple structure and easy installation. 3.Host with the wind ,water circulation cooling system. 4.This Plastic pulverizer can deal with PE, LLDPE, LDPE, ABS, EVA etc. Technical data:
| Model | MP-400 | MP-500 | MP-600 | MP-800 | MP-1000 |
| Diameter of milling chamber(mm) | 350 | 500 | 600 | 800 | 1000 |
| Motor power (kw) | 22-30 | 37-45 | 55 | 75 | 90/110 |
| Cooling | Water cooling + natural cooling | ||||
| Air Blower power(kw) | 3 | 4 | 5.5 | 7.5 | 11 |
| Fineness of powder | 10 to 100 mesh (adjustable) | ||||
| Output of pulverizer(kg/h) | 100-120 | 150-200 | 250-300 | 400 | 500-800 |
| Dimension (mm) | 1800×1600 ×3800 | 1900×1700 ×3900 | 1900×1500 ×3000 | 2300×1900 ×4100 | 2500 |
| Weight (kg) | 1300 | 1600 | 1500 | 3200 | 3600 |
PVC pulverizer(rotor type) Main features 1. The capacity of this model is higher than other kind of miller. 2. Equipped with dust collection device to reduce dust pollution. 3. Close blower for discharge can reduce labor intensity of worker and save money for clients. 4.The cover of main machine can be opened for maintain. 5.The cooling system include the water and wind cooling for the machine body. Technical Data:
| Model | SMF-400 | SMF-500 | SMF-600 | SMF-800 | SMF-1000 |
| Main Motor power (kw) | 30 | 37 | 45/55 | 55/75 | 90/110 |
| Capacity (kg/h) | 50-120 | 150-200 | 280-380 | 400-600 | 600-800 |
| Material of conveying pipe | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Weight of PVC pulverizer (kg) | 1000 | 1200 | 1800 | 2600 | 3200 |
| Cooling | Wind cooling +water cooling | ||||
Detailed pictures Our Company FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to what kind of machine you need Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: What is your terms of payment ? A: 30% T/T in advance ,70% balance before shipment or Negotiable If you have another question, please feel free to contact us as below
